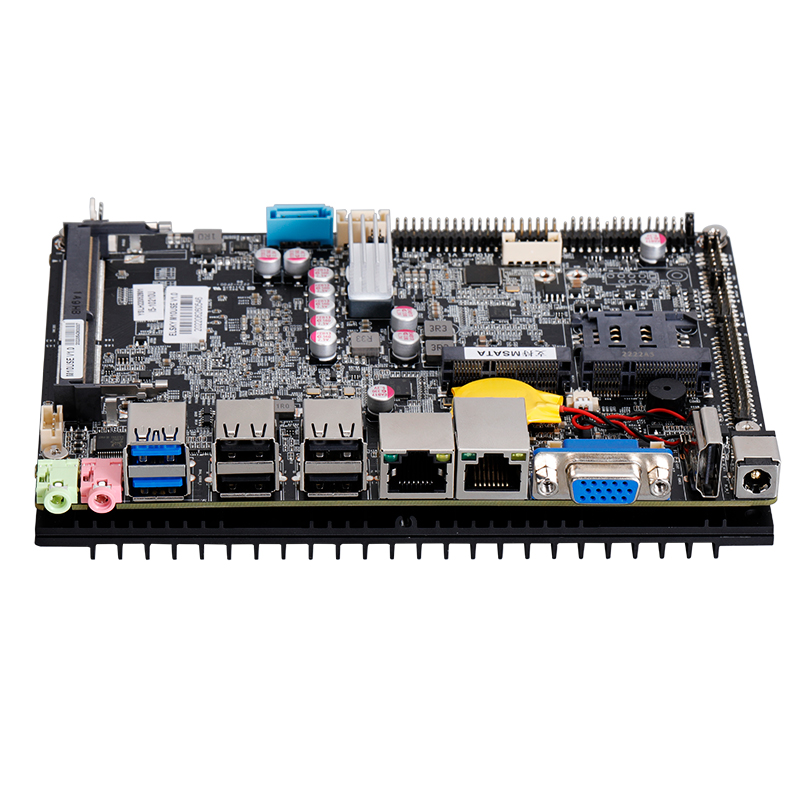

ELSKY M100SE 10th Gen 4-inch Industrial Motherboard

Supports 8th Gen Whiskey Lake and 10th Gen Comet Lake Core i3, i5, and i7 processors

SKU: ELSKY-M100SE
CPU
Supports 8th Gen Whiskey Lake and 10th Gen Comet Lake Core i3, i5, and i7 processors
LAN
2-4 network port
COM
6*COM port
Memory
1*NB-DDR4 32G(MAX)
Storage
1*MSATA 1*SATA
Power Supply
DC 12V
Motherboard model CPU 4K LAN COM USB2.0 USB3.0 Memory SSD power
4 inch motherboard

M100SE

Support W hiskey Lake 8th generation C omet L ake 10th generation Core i3, i5, i7 support 2 6 8 2 1*NB-DDR4

32G (MAX)

1*MSATA

1*SATA

+12V
3 6 6 2
4 6 4 2

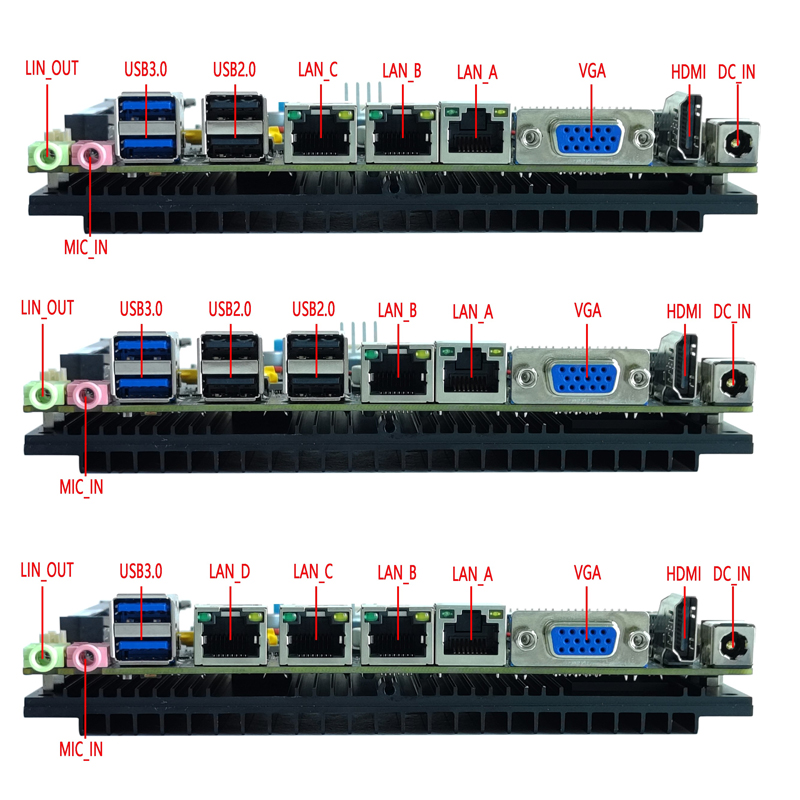

The dual-network motherboard defaults to 10*USB, which can be changed to support 4G and 9*USB to be available;



Size  4 inch motherboard 165mm (L) * 115mm (W) * 31mm (H)
CPU processor Support 8th generation Whiskey Lake _ CPU: I3-8145U , I5-8265U, I7-8665U, etc.
Support 10th generation Comet Lake _ CPU: I3-10110U, I5-10210U , I7-10510U, etc.
Chipset Whiskey Lake、Comet Lake high- speed chipset
Power supply 1*DC_IN

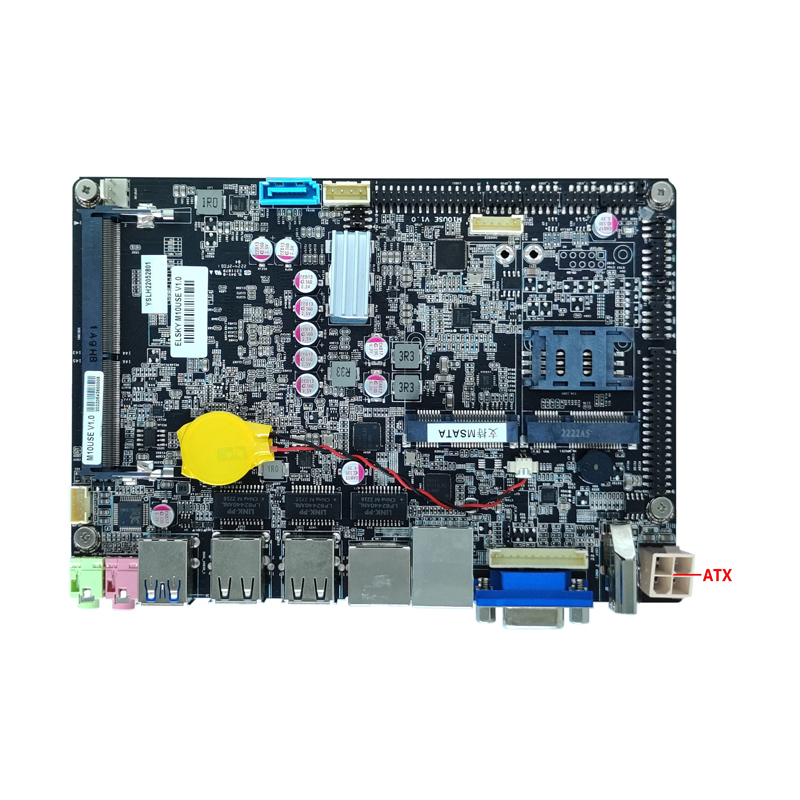

Can be changed to 1*ATX (4Pin)

The inner diameter of the DC plug is 2.5MM and supports 12V

The power consumption of the motherboard is about 60W under full load. It is recommended to use 12V7A or above power supply

Memory 1 *NB-DDR 4 memory slot, support 2133/2400/2666MHz memory, maximum support 32 GB

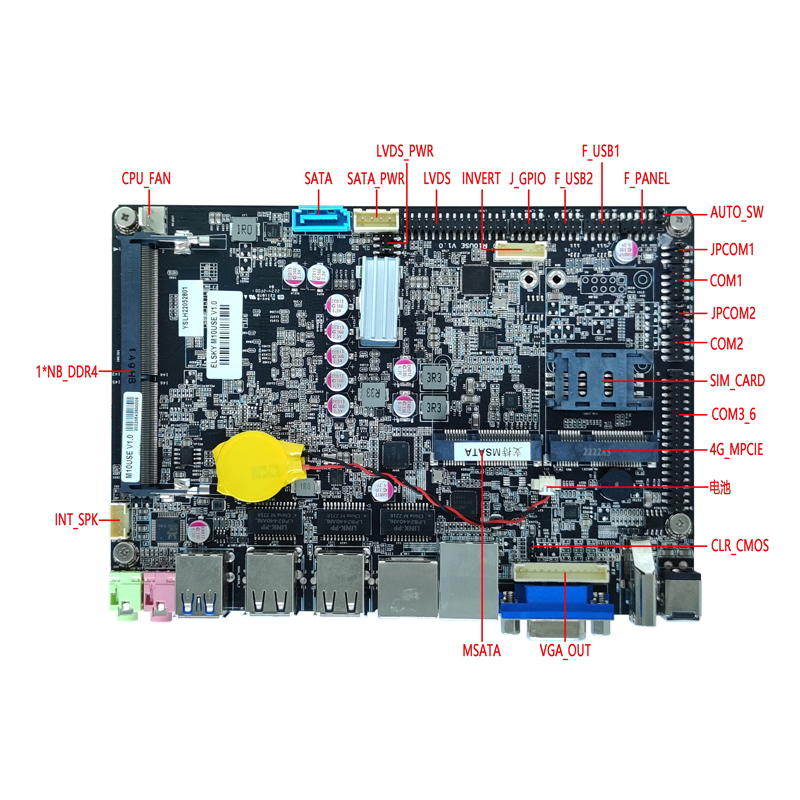

Display function Integrated Intel UHD Graphics ultra-core graphics card, support single display, dual display/triple display copy, dual display/triple display expansion,Double appearance under SHELL
1*VGA DB15 interface Support resolution 1920 * 1080@60Hz
1*VGA_OUT pin Support resolution 1920 * 1200@60Hz (12Pin, 1*12Pin, 2.0mm)
1*HDMI 1.4 interface Support 4K resolution 4096/3840 * 2160@30Hz
1*LVDS/EDP pin Support resolution 1920 * 1080@60Hz (30Pin, 2*15Pin, 2.0mm)
1*LVDS_PWR pin LVDS voltage control pin (6Pin, 2*3Pin, 2.0mm)
1*INVERT pin LVDS backlight control pin (6Pin, 1*6Pin, 2.0mm)
Motherboard LVDS and EDP signals can be selected, the default supports LVDS, can be changed to support EDP, pin sharing
Network features 2*LAN/3*LAN/4*LAN Support intel i 225-LM gigabit network card chip , support wake -up on LAN and PXE diskless boot function.
1*4G_MPCIE interface Support WIFI, can be changed to support 3G/4G/Bluetooth/WIFI, etc.
Hard disk function 1*MSATA interface Support MINI_SATA disk, support MSATA3.0
1*SATA1 interface Standard SATA3.0 hard disk interface, the maximum transmission speed is 6.0 Gbps
1*SATA_PWR pin The hard disk power supply pin can be powered by 5V or 12V. (4Pin, 1*4Pin, 2.54mm)
Sound function Integrated Realtek ALC 897 HD digital audio decoder, 6-channel high-fidelity audio controller
1*LINE_OUT interface Support audio output (green)
1*MIC_IN interface Support microphone input (pink)
1*INT_SPK pin Power amplifier supports 8 ohm 5 watt speaker dual channel output (4Pin, 1*4Pin, 2.0mm)
USB function 2*USB3.0 interface Rear standard USB3.0 interface
4*USB2.0 interface Rear standard USB2.0 interface
1*F_USB1 pin Front USB2.0 pins, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.0mm)
1*F_USB2 pin Front USB2.0 pins, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.0mm)
The USB signal of Mini-PCIE and F_USB2 No. 2/4/6/8/10 are optional, and the default Mini-PCIE has no USB signal
Switch function 1*F_PANEL pin Switch, power light, hard disk light, reset pin (9Pin, 2*5Pin, 2.0mm)
1*AUTO_SW pin Support hardware control to power on and start (3Pin, 1*3Pin, 2.0mm)
Other I/O COM1 pin Serial port, support RS232/RS422/RS485 optional (9Pin, 2*5Pin, 2.0mm)
COM2 pin Serial port, support standard RS232 (9Pin, 2*5Pin, 2.0mm)
COM3~6 pins Serial port, support standard RS232 (39Pin, 2*20Pin, 2.0mm)
1*JPCOM1/2 pin Control COM1/2 pin 9 voltage 0V/5V/12V optional (6Pin, 2*3Pin, 2.0mm)
1*SIM card slot Support SIM card, need SIM card when using 3G/4G
1*CLR_CMOS pin Motherboard reset and discharge pin (2Pin, 1*2Pin, 2.0mm)
1*CPU_FAN pin CPU fan pin, full speed, does not support temperature control (3Pin, 1*3Pin, 2.54mm)
1*J_GPIO pin GPIO control pin (10Pin, 2*5Pin, 2.0mm)
Operating environment Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, non-condensing
BIOS AMI BIOS, support power-on and start-up, scheduled start-up, remote switch machine intelligent identification of equipment
Watch dog Watchdog programming, support hardware reset function (256 levels, 0~255 seconds)
Operating system Support Windows 10, Windows 11, Linux, etc.



Product Overview

The motherboard utilizes industrial-grade components and a wide-temperature design, supporting operation in environments ranging from -10°C to 60°C. It is engineered for stable, 24/7 continuous operation and is widely applied across various IoT sectors, including industrial automation, machine vision, smart commercial displays, and medical imaging.

Core Advantages

  • Supports 8th Gen Whiskey Lake and 10th Gen Comet Lake Core i3, i5, and i7 processors
  • Compact 4-inch Mini-ITX design
  • Rich I/O interfaces
  • DC12V
  • Supports synchronous/asynchronous dual-display modes
  • 7*24 hours stable operation
Industrial Automation

Industrial Automation

Production Line Control, Equipment Monitoring, Data Acquisition

Machine Vision

Machine Vision

AI Visual Inspection, Image Recognition and Analysis

Smart Commercial Displays

Smart Commercial Displays

Digital Signage, Advertising Displays, Information Dissemination Terminals

Medical Imaging

Medical Imaging

Medical Imaging Terminals And Diagnostic Equipment

Smart Transportation

Smart Transportation

Traffic Signal Control And Road Network Monitoring

IoT Gateway

IoT Gateway

Data Aggregation And Edge Computing Nodes
