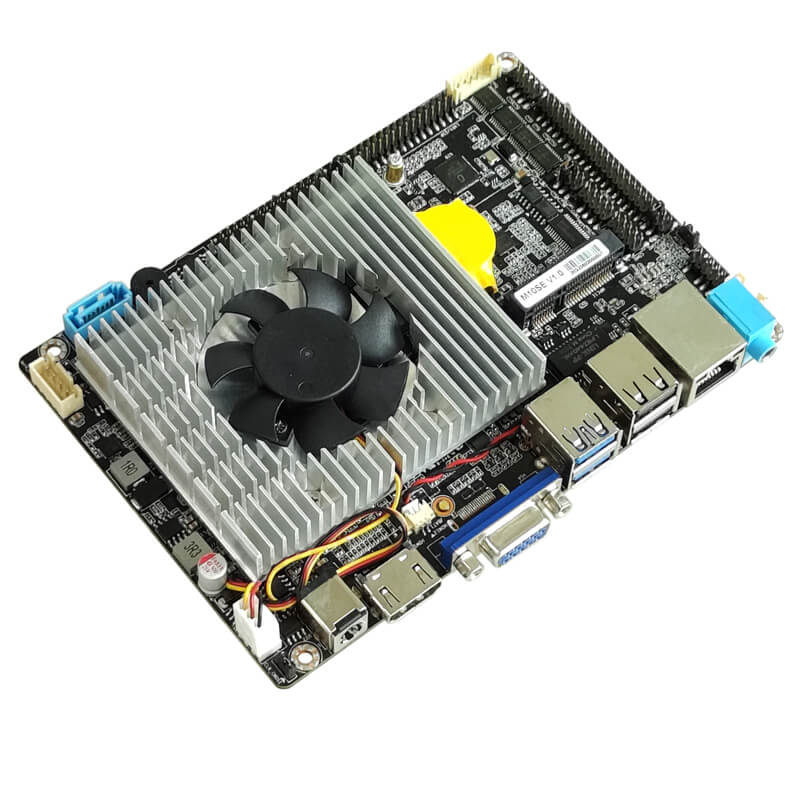

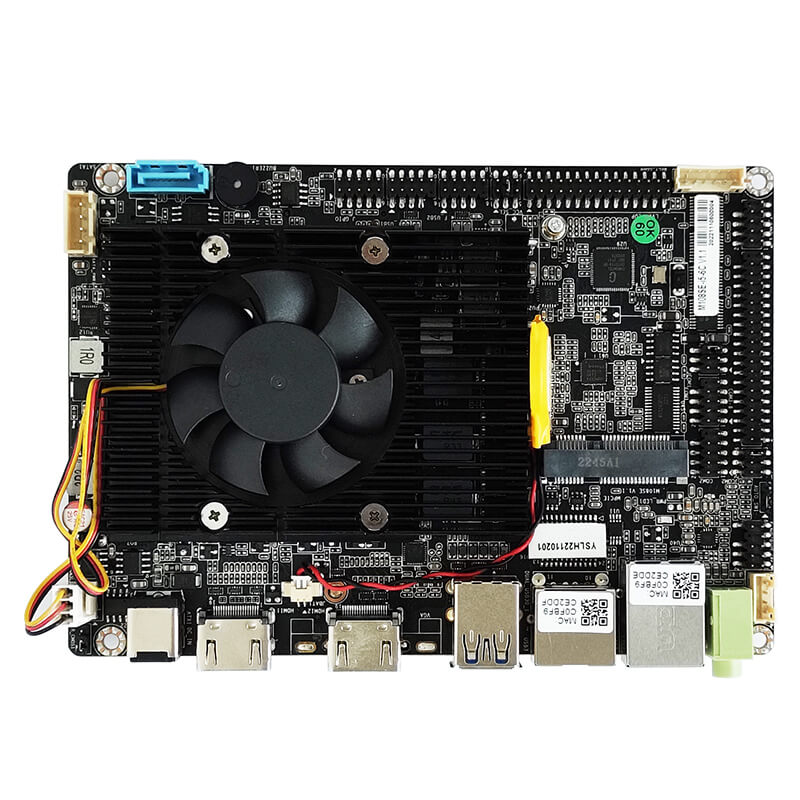

ELSKY M108SE Industrial Motherboard
SKU: ELSKY-M108SE
CPU
Supports 8th Gen Whiskey Lake / 10th Gen Comet Lake Core i3, i5, i7
Size
145mm（L）*100mm（W）*25mm（H）
Memory
1 x DDR4 (up to 32GB)
Storage
1 x SATA 3.0, 1 x M.2-2280 (optional 1 x MSATA)
Network
Optional support for dual Gigabit LAN (Intel WG i219V + Motorcomm YT6801)
Display
HDMI, VGA (or HDMI 2), LVDS or EDP (Single/Dual); supports synchronous/asynchronous triple or dual display
Power Supply
DC 12V/19V (7A or higher recommended)
Interfaces

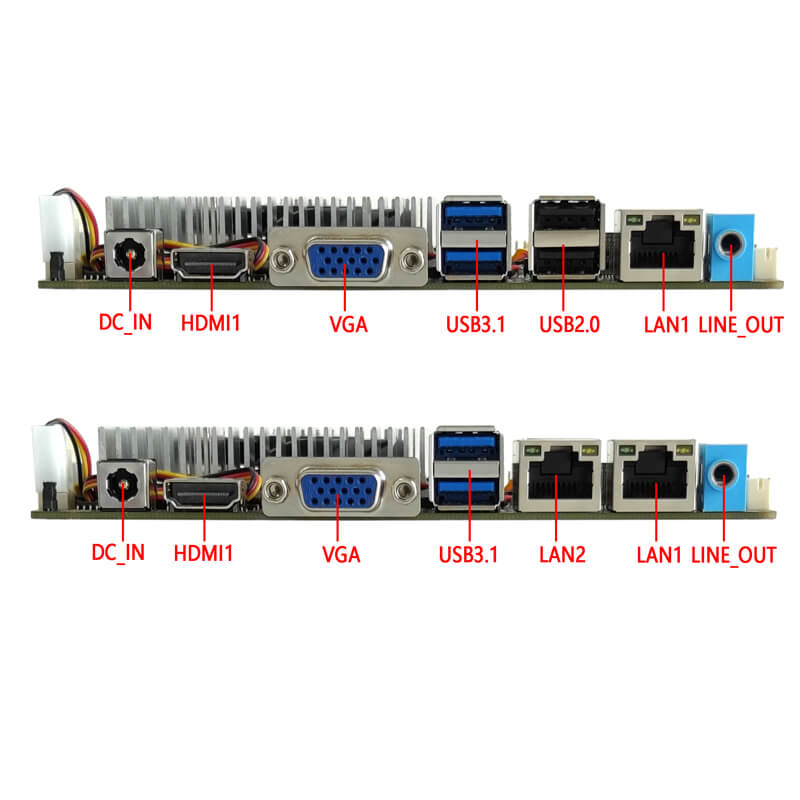

DC-in, HDMI, VGA (or HDMI 2), 2 x USB 3.2, 2 x LAN, Line-Out
| Model | CPU | 4K | LAN | COM | USB2.0 | USB3.1 | Memory | SSD | Power |
| M108SE | Support Whiskey Lake 8th/Comet Lake 10th gen core i3,i5,i7 | HDMI,
4K 30Hz |
1 | 6 | 6 | 2 | 1*NB-DDR4
MAX 32G |
1*M.2;
1*SATA; 1*Mini-PCIE can change to MSATA |
+12V/19V |
| 2 | 6 | 4 | 2 | ||||||
| Dual network motherboards support 6*USB by default; Single network motherboards support 8*USB by default. | |||||||||
| Size | 145mm(L)*100mm(W)*25mm(H) | |
| CPU | Supports 8th generation Whiskey Lake CPUs: I3-8145U, I5-8265U, I7-8665U, etc | |
| Support 10th generation Comet Lake CPUs: I3-10110U, I5-10210U, I7-10510U, etc | ||

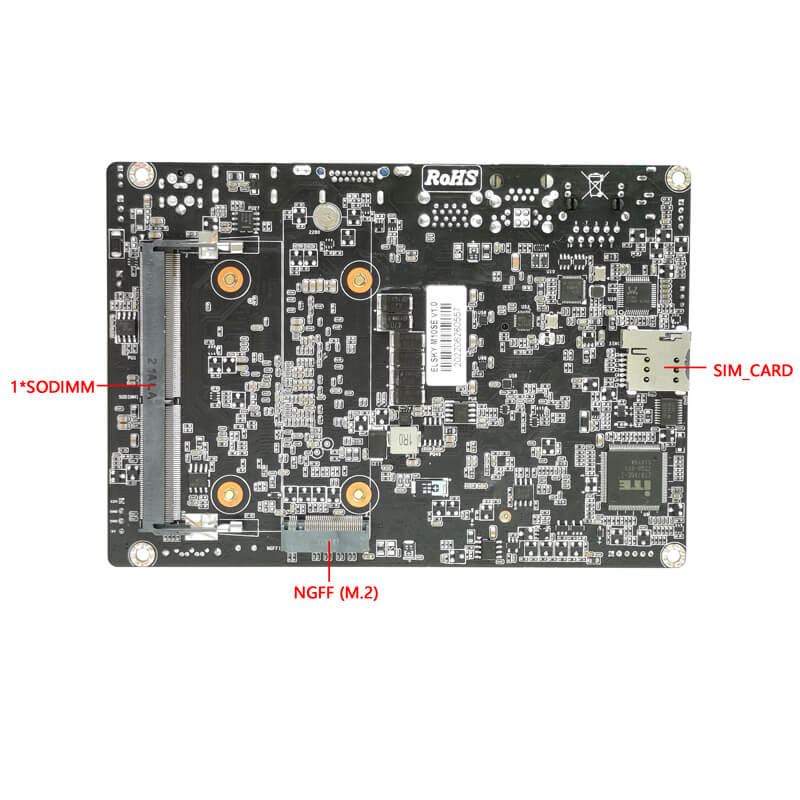

| Memory | 1*NB-DDR4 memory slot, supports 2133/2400/2666/2933MHz memory, maximum support 32GB | |
| Power supply | 1*DC_IN | The inner diameter of the DC head is 2.5mm, and the full load power consumption of the motherboard is about 60W.
It is recommended to use a power supply of 12V/7A or 19V/4A or above. |

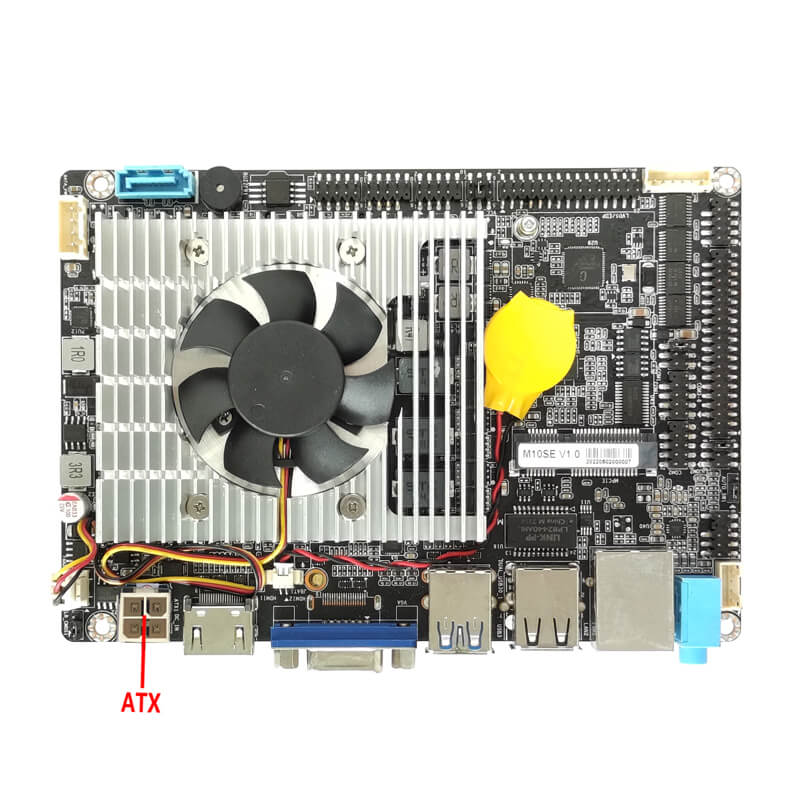

| 1*DC_ATX (optional) | ||
| Display function | Integrated Intel UHD Graphics card, supports single display, dual/triple display replication, dual/triple display expansion, single display under DOS | |
| 1*HDMI 1.4 interface | Supports 4K resolution 4096/3840*2160@30Hz | |
| 1*VGA DB15 interface | Supports resolution 1920*1080@60Hz | |
| 1*HDMI2 interface (optional) | Supports 4K resolution 4096/3840*2160@30Hz | |
| VGA interface and HDMI2 interface are optional, default supports VGA interface, can be changed to support HDMI2 interface | ||

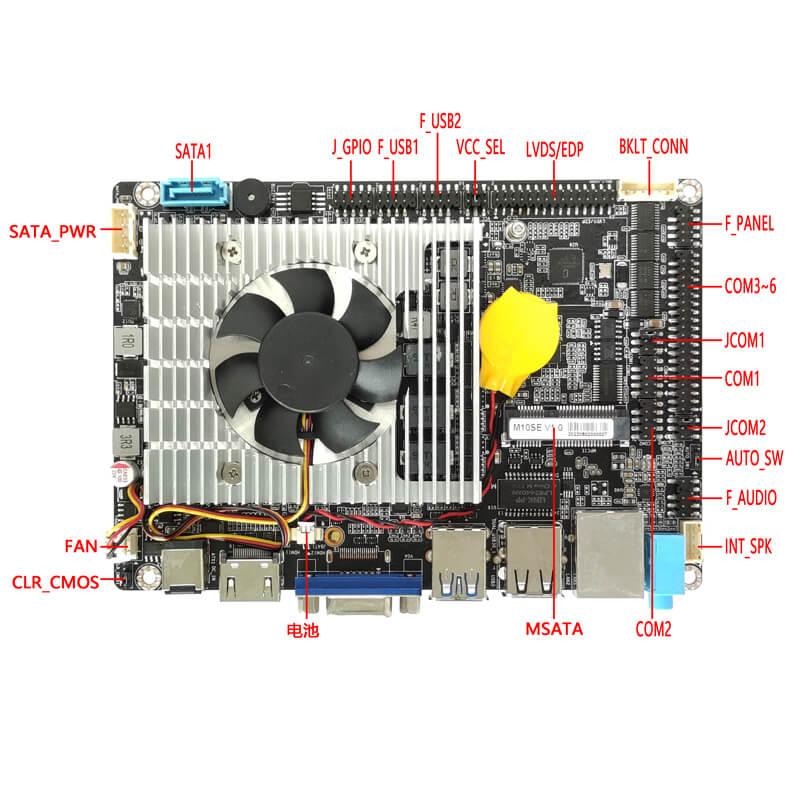

| 1*LVDS/EDP pin | Supports resolution 1920*1080@60Hz （30Pin，2*15Pin，2.0mm） | |
| LVDS and EDP share pins, default LVDS signal, EDP signal can be changed; EDP uses EDP-B screen cable | ||
| 1*VCC_SEL pin | LVDS/EDP voltage control pin （6Pin，2*3Pin，2.0mm） | |
| 1*BKLT_CONN pin | LVDS backlight control pin （6Pin，1*6Pin，2.0mm） | |
| Network function | 2*RJ45_LAN interface | Dual LAN: default support intel WG i219V+Realtek 8111H gigabit network cards;
Optional support intel WG i219V+Motorcomm YT6801dual gigabit network cards; Single LAN: Optional support intel WG i219Vgigabit network card or Motorcomm YT6801gigabit network card; Support network wake-up and PXE diskless boot function. |
| 1*Mini-PCIE interface | PCIE3.0 signal, supports WIFI/Bluetooth/4G module, can be changed to support MSATA | |
| Hard disk function | 1*SATA1 interface | Standard SATA 3.0 hard drive interface, maximum transfer speed of 6.0 Gbps |
| 1*SATA_PWR | Hard drive power supply pin, capable of supplying 5V/12V power （4Pin，1*4Pin，2.54mm） | |
| 1*NGFF1 interface（M.2） | PCIE3.0 signal, supports Key-M interface M.2 2280 hard drive, default supports SATA and NVME (PCIE) protocols | |
| Sound function | Integrated Realtek ALC 897 HD digital audio decoder, 6-channel high fidelity audio controller | |
| 1*FRONT_OUT interface | Supports audio output | |
| 1*F_AUDIO pin | Standard audio pin （9Pin，2*5Pin，2.0mm） | |
| 1*INT_SPK pin | The amplifier supports dual channel output with 8 ohms and 5 watts speakers （4Pin，1*4Pin，2.0mm） | |
| USB function | 2*USB3.1 interface | Rear standard USB 3.1 Gen1 interface, with a maximum transmission bandwidth of 5.0Gbps |
| 2*USB2.0 interface | Rear standard USB 2.0 interface, with a maximum transmission bandwidth of 480Mbps | |
| 1*F_USB1 pin | Front USB 2.0 pins, one set with 2*USB 2.0 （9Pin，2*5Pin，2.0mm） | |
| 1*F_USB2 pin | Front USB 2.0 pins, one set with 2*USB 2.0 （9Pin，2*5Pin，2.0mm） | |
| Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.0mm） |
| 1*AUTO_SW pin | Hardware control power on plug （3Pin，1*3Pin，2.0mm） | |
| Other I/O | COM1 pin | Serial port, COM1 supports RS232/RS422/RS485 optional
（9Pin，2*5Pin，2.0mm） |
| COM2 pin | Serial port, supports standard RS232 （9Pin，2*5Pin，2.0mm） | |
| COM3~6 pin | Serial port, supports standard RS232 （39Pin，2*20Pin，2.0mm） | |
| JCOM1/JCOM2 pin | Control the voltage of the ninth pin of COM1/2 to 0V/5V/12V （6Pin，2*3Pin，2.0mm） | |
| 1*SIM slot | Supports SIM card, SIM card is required when using 4G | |
| 1*CLR_CMOS pin | Motherboard reset and discharge pins （3Pin，1*3Pin，2.0mm） | |
| 1*FAN3 pin | CPU fan pin supports temperature control （3Pin，1*3Pin，2.54mm） | |
| 1*J_GPIO pin | GPIO control pin （10Pin，2*5Pin，2.0mm） | |
| Operating environment | Working temperature: -10℃~60℃;
Working humidity: 5%~95% relative humidity,no condensation |
|
| BIOS | AMI BIOS, supports power on, timed power on, and intelligent recognition of remote power on/off devices | |
| Watch Dog | Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds) | |
| Operating system | Windows 11, Windows 10, Linux, etc | |
Core Advantages
Industrial Automation
Production Line Control, Equipment Monitoring, Data Acquisition
Machine Vision
AI Visual Inspection, Image Recognition and Analysis
Smart Commercial Displays
Digital Signage, Advertising Displays, Information Dissemination Terminals
Medical Imaging
Medical Imaging Terminals And Diagnostic Equipment
Smart Transportation
Traffic Signal Control And Road Network Monitoring
IoT Gateway
Data Aggregation And Edge Computing Nodes
