ELSKY M128SE Industrial Motherboard

Name: ELSKY M128SE Industrial Motherboard
Brand: SHENZHEN ELSKY TECHNOLOGY CO.,LTD

SKU: ELSKY-M128SE

CPU

Supports Intel® Alder Lake 12th Gen U/P/H series (i3, i5, i7, i9) , Supports Intel® Raptor Lake 13th Gen U/P/H series (i3, i5, i7, i9)

Size

146mm (L) x 102mm (W) x 26mm (H, excluding heatsink)

Memory

1 x DDR4 (up to 32GB)

Storage

1 x SATA 3.0, 1 x M.2-2280 (optional 1 x MSATA)

Network

Optional support for dual Gigabit LAN (Intel WG i219V + Motorcomm YT6801)

Display

HDMI, VGA (or HDMI 2), LVDS or EDP (Single/Dual); supports synchronous/asynchronous triple or dual display

Power Supply

DC 12V/19V (recommended 7A or higher)

Interfaces

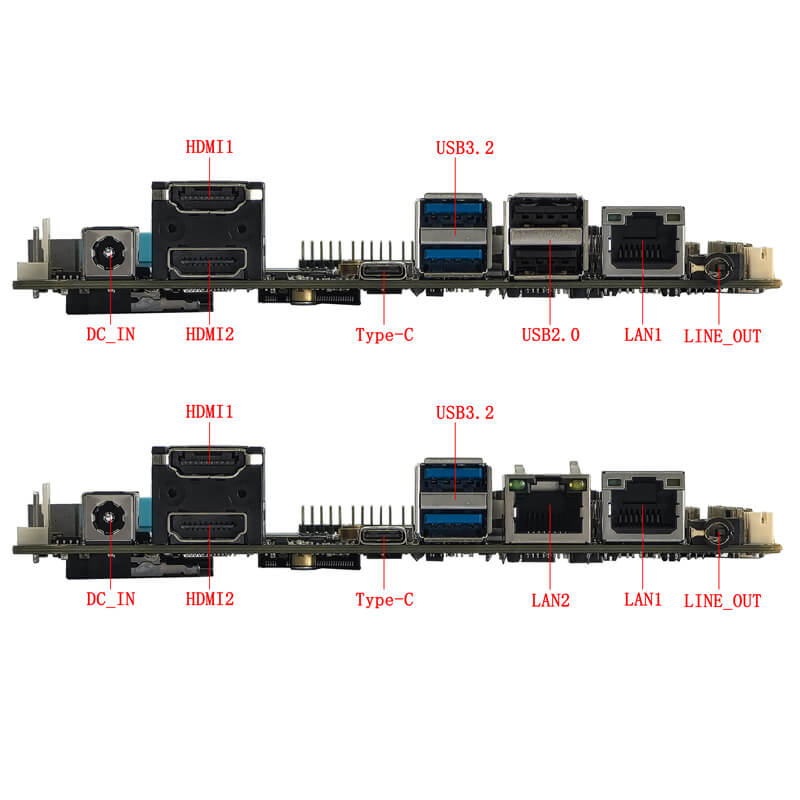

DC-in, HDMI, VGA (or HDMI 2), 2 x USB 3.2, 2 x LAN, Line-Out

Model	CPU	4K	Type-C	COM	LAN	USB2.0	USB3.2	SSD	Memory	Power
M128SE	Supports Intel® Alder Lake12th U/P/H series i3,i5,i7,i9	Dual HDMI, 4K 60Hz	Supports display function, USB data transfer, and power supply function	6	1	6	2	1M.2 1SATA	1*NB-DDR4 MAX 32G	12~24V wide voltage
					2	4	2
M138SE	Supports Intel® Raptor Lake 13th U/P/H series i3,i5,i7,i9			6	1	6	2
					2	4	2

Size	3.5 inches: 146mm(L)102mm(W)26mm(H)

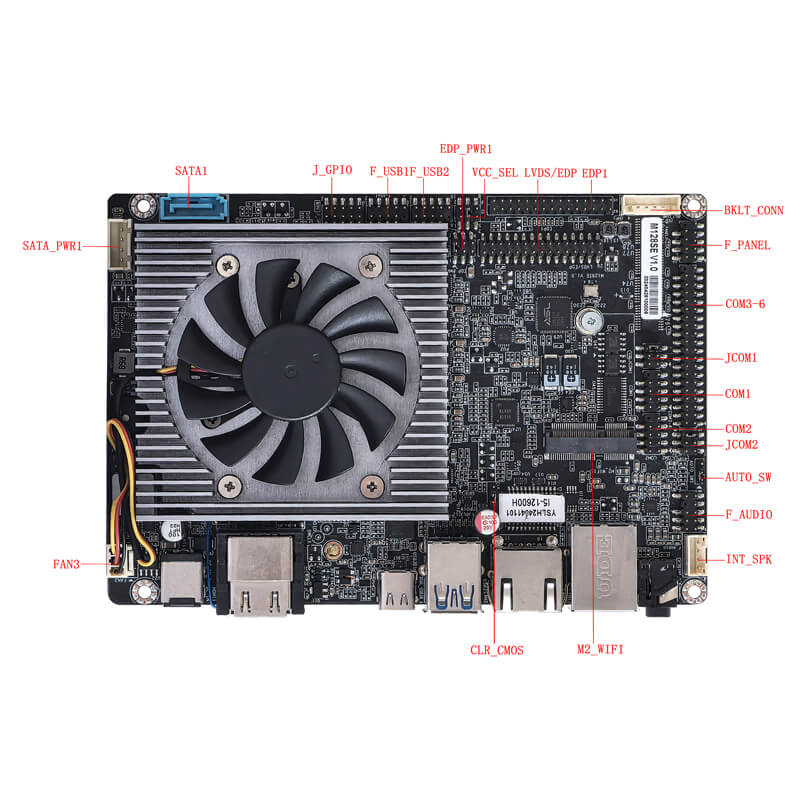

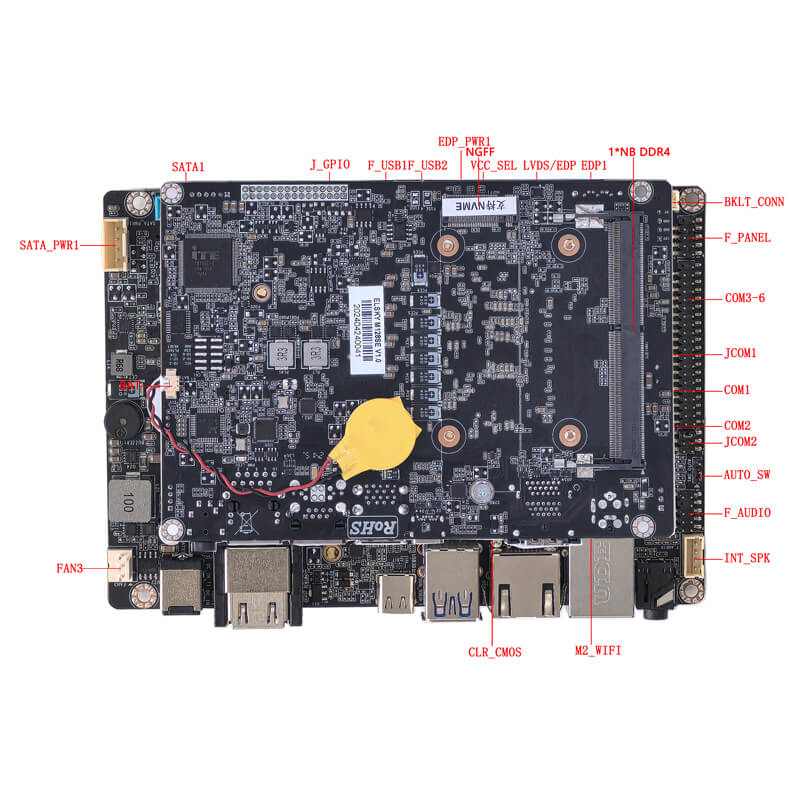

CPU	Supports Intel® Alder Lake 12th gen, Raptor Lake 13th gen U/P/H series CPUs

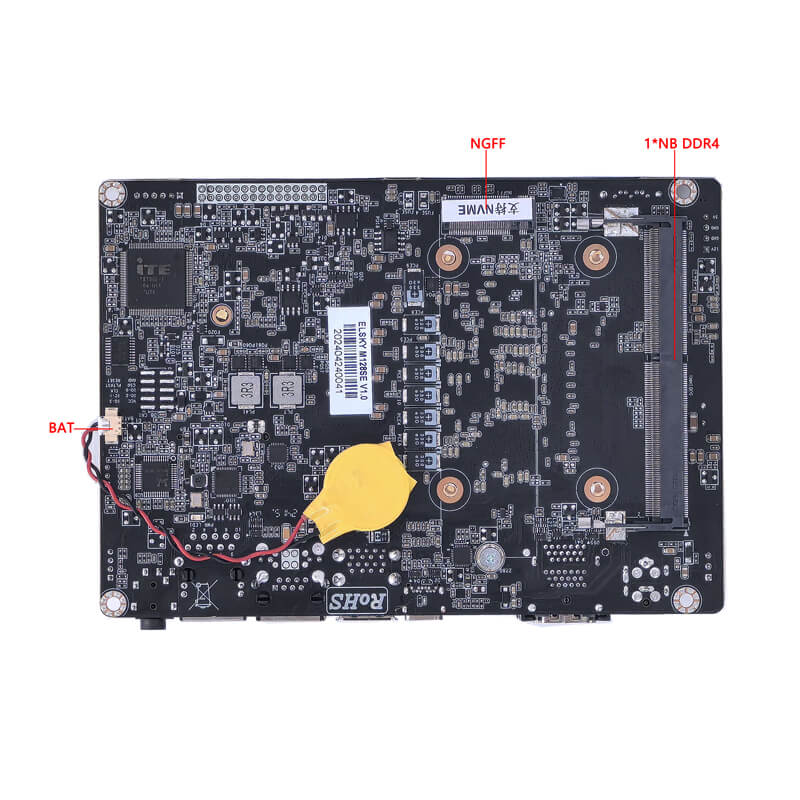

Memory	1*NB-DDR4 SODIMM memory slot, supports 2133/2400/2666/2933/3200 memory, maximum support 32GB
Power supply	1*DC_IN	The inner diameter of the DC head is 2.5mm, and the motherboard supports 12V~24V wide voltage power supply by default The maximum turbo power consumption of the U series CPU is 55W, and it is recommended to use a 12V 7A or higher power supply; The maximum turbo power consumption of the P series CPU is 64W, and it is recommended to use a 12V 7A or higher power supply; The maximum turbo power consumption of the H series CPU is 115W, and it is recommended to use a 12V 10A or higher power supply;
Power supply	Can change 1*ATX (4Pin)
Display function	Intel® UHD Graphics / Intel Iris Xe Graphics; Support single display, dual display/triple display/quad display replication, dual display/triple display/quad display expansion, dual display under SHELL;
	2*HDMI 2.0 port	Supports 4K resolution 4096/3840*2160@60Hz
	1*Type_C port	Supports display, USB data transfer, and power supply functions
	1*EDP1 pin	EDP-C screen cable,supports 4K resolution 4096/38402160@60Hz （30Pin，215Pin，2.0mm）
	1*VCC_SEL pin	LVDS/EDP working voltage control pin （6Pin，2*3Pin，2.0mm）
	1*LVDS/EDP2 pin	Supports resolution 19201080@60Hz （30Pin，215Pin，2.0mm）
	1*EDP_PWR1 pin	EDP1 working voltage control pin （6Pin，2*3Pin，2.0mm）
	1*BKLT_CONN pin	LVDS backlight switch control pin （6Pin，1*6Pin，2.0mm）
	Choose between LVDS and EDP2, share pins, EDP2 uses EDP-B screen cable, EDP2 supports 4K resolution.
Network function	1/2*RJ45 LAN port	Dual network: default support Intel® I219-V Gigabit Ethernet card+Realtek 8111H Gigabit Ethernet card; Optional support for Intel® I219-V Gigabit Network Card+Motorcomm YT6801 Gigabit Network Card; Single network: Intel® I219-V Gigabit Ethernet card Supports network wake-up and PXE diskless boot function.
Network function	1*M2-WIFI port	Supports Key-E interface M.2 2230 PCIE3.0 x1&USB, WiFi Bluetooth module
Hard disk function	1*NGFF1(M.2) port	Support Key-M interface M.2 2280 NVME PCIE4.0 x4/SATA adaptive standard SSD;
	1*SATA1 port	Standard SATA 3.0 hard drive interface
	1*SATA_PWR1 pin	Hard drive power supply pin, capable of supplying 5V and 12V power （4Pin，1*4Pin，2.54mm）
Sound function	Default support Realtek ALC897 HD digital audio decoder and 6-channel high fidelity audio controller
	1*LINE_OUT port	Supports LINE_OUT output and MIC_IN input
	1*F_AUDIO pin	Standard audio pin （9Pin，2*5Pin，2.0mm）
	1*INT_SPK pin	The amplifier supports dual channel output with 8 ohms and 5 watts speakers （4Pin，1*4Pin，2.0mm）
USB function	2*USB3.2 port	Rear standard USB 3.2 Gen1 interface, with a maximum transmission bandwidth of 5Gbps
	2*USB2.0 port	Rear standard USB 2.0 interface, with a maximum transmission bandwidth of 480Mbps (not available on dual network motherboards)
	1*F_USB1 pin	Front USB 2.0 pins, one set with 2USB 2.0 （9Pin，25Pin，2.0mm）
	1*F_USB2 pin	Front USB 2.0 pins, one set with 2USB 2.0 （9Pin，25Pin，2.0mm）
Switch function	1*F_PANEL pin	Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.0mm）
Switch function	1*AUTO_SW pin	Hardware control power on plug （3Pin，1*3Pin，2.0mm）
Other IO	1*COM1 pin	Serial port, COM1 supports RS232/RS422/RS485 optional （9Pin，2*5Pin，2.0mm）
	1*COM2 pin	Serial port, supports standard RS232 （9Pin，2*5Pin，2.0mm）
	1*COM3-6 pin	Serial port, supports standard RS232 （39Pin，2*20Pin，2.0mm）
	All serial ports can be hardware modified and support TTL
	1*JCOM1/2 pin	Can control the ninth pin voltage of COM1/2 to 0V/5V/12V （6Pin，2*3Pin，2.0mm）
	1*CLR_CMOS pin	Motherboard reset and discharge pins （3Pin，1*3Pin，2.0mm）
	1*FAN3 pin	CPU fan pin, supports temperature control （4Pin，1*4Pin，1.25mm）
	1*J_GPIO pin	GPIO control pin, supports 8 GPIO signals （10Pin，2*5Pin，2.0mm）
Operating environment	Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity,no condensation
BIOS	AMI BIOS,support timed startup and intelligent recognition of remote power on/off devices
Watch Dog	Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds)
Operating system	Supports Windows 11, Windows 10, Linux, etc
