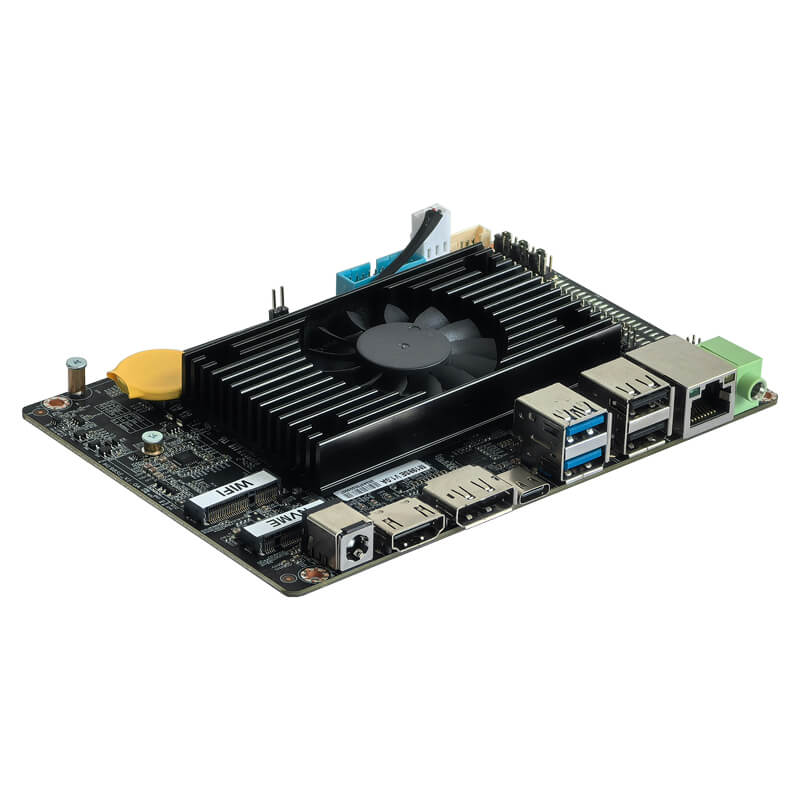

ELSKY M198SE Industrial Motherboard

Name: ELSKY M198SE Industrial Motherboard
Brand: SHENZHEN ELSKY TECHNOLOGY CO.,LTD

SKU: ELSKY-M198SE

CPU

Supports Intel® Alder Lake-N series (N200, N100, N97, N95, i3-N305, etc.)

Size

146mm（L）*102mm（W）*23mm（H）

Memory

1 x DDR5 (up to 16GB)

Storage

1 x M.2

Network

Supports Realtek 8111H Gigabit Ethernet; optional domestic Motorcomm YT6801 Gigabit Ethernet

Display

HDMI, DP, LVDS (or EDP), Type-C; supports synchronous/asynchronous dual-display and triple-display output

Power Supply

DC 12V–24V wide voltage input; 5A or higher recommended

Interfaces

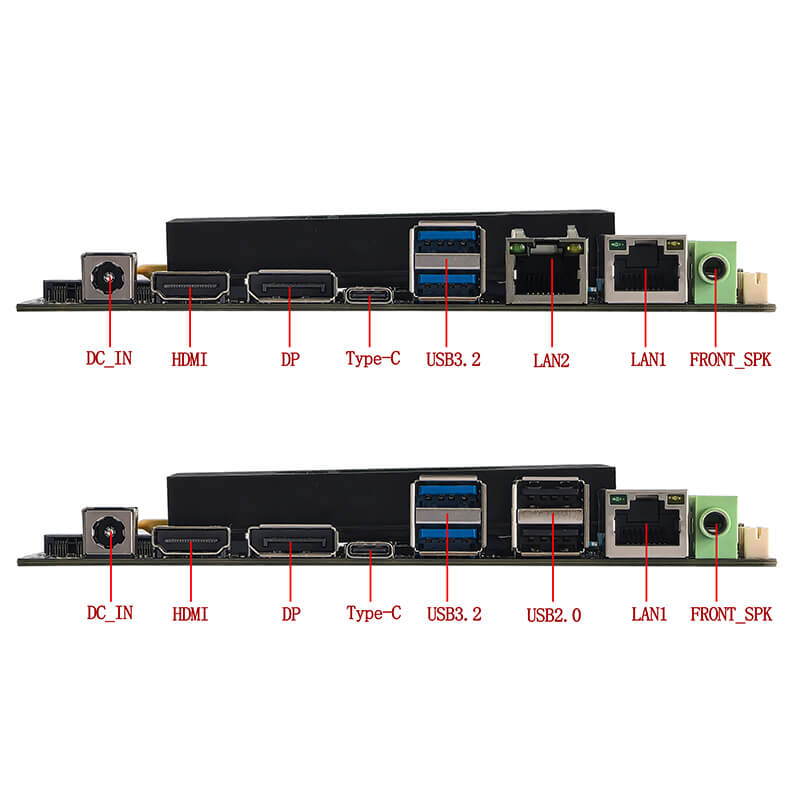

DC-in, HDMI, DP, Type-C, USB 3.2, 2 x LAN, Line-Out

Model

CPU

Type-C

COM

LAN

USB2.0

USB3.2

SSD

Memory

Power

M198SE

Supports Intel® Alder Lake-N series N200,N100,N97,N95,i3-N305,etc

1*HDMI

1*DP

4K 60Hz

Supports display function and USB data transfer

1*M.2

1*NB-DDR5

MAX 16G

12~24V

Wide voltage

Size	3.5 inches: 146mm(L)102mm(W)23mm(H)
CPU	Supports Intel® Alder Lake-N series N200,N100,N97,N95,i3-N305,etc

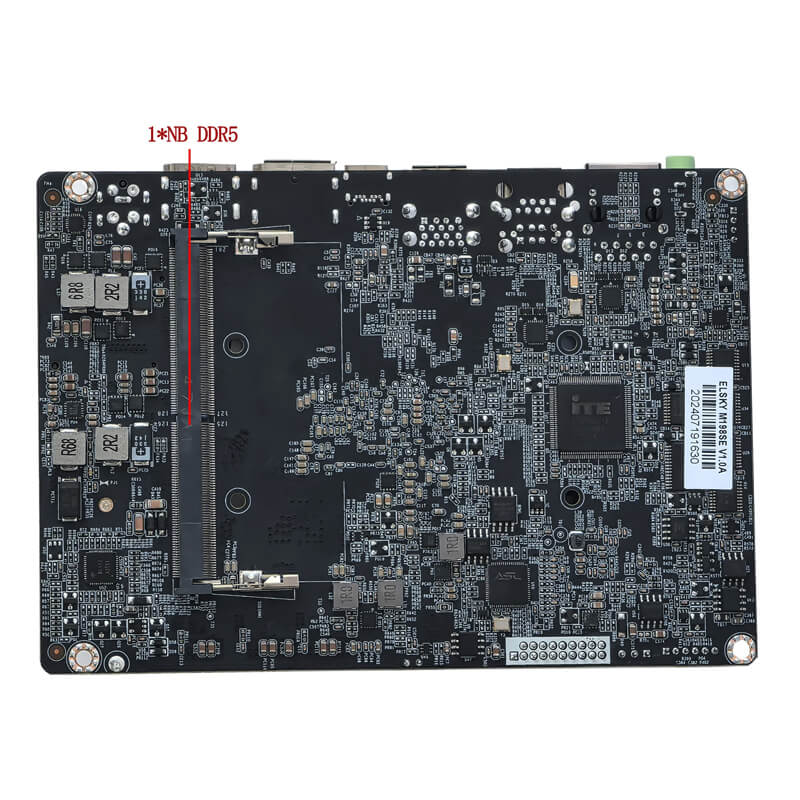

Memory	1*NB-DDR5 SODIMM memory slot, supports 4800MHz memory, maximum support 16GB
Power supply	1*DC_IN	Supports 12V~24V wide voltage power supply, with a DC head inner diameter of 2.5mm. The full load power consumption of the motherboard is about 30W. It is recommended to use a power supply of 12V/4A or 24V2A or above.
Power supply	Can change to 1*ATX(4Pin)
Display function	Intel® UHD Graphics, supports single display, dual display/triple display replication, dual display/triple display expansion, and dual display under SHELL;
	1*HDMI® 2.1 port	4K resolution 4096/3840*2160@60Hz
	1*DP 1.4 port	Does not support DP++,supports 4K resolution 4096/3840*2160@60Hz
	1*LVDS/EDP1 pin	Supports resolution 19201080@60Hz （30Pin，215Pin，2.0mm）
	1*BKLT_CONN pin	LVDS/EDP1 backlight control pin （6Pin，1*6Pin，2.0mm）
	1*VCC_SEL pin	LVDS/EDP1 voltage control pin （6Pin，2*3Pin，2.0mm）
	LVDS and EDP1 are optional and share pins. EDP1 does not support 4K resolution and uses EDP-B screen cable.
	1*Type_C port	Supports display function and 4K resolution 4096/3840*2160@60Hz
	1*MIPI port	Supports CSI-2 protocol and MIPI camera devices
Network function	1/2*RJ45 LAN port	Single network: default Realtek 8111H Gigabit Ethernet card; Optional Motorcomm YT6801 Gigabit Ethernet Card; Dual network: supports Realtek 8111H+Realtek 8111H Gigabit Ethernet cards; Optional Motorcomm YT6801+Motorcomm YT6801 Gigabit Ethernet cards; Support network wake-up and PXE diskless boot function
Network function	1*M2-WIFI port	Supports Key-E interface M.2 2230 PCIE3.0 x1 & USB,supports WiFi Bluetooth module.
Hard disk function	1*NGFF port	Supports Key-M interface M.2 2280 NVME PCIE3.0 x4 / SATA adaptive standard SSD;
Sound function	Default support Realtek ALC897 HD digital audio decoder and 6-channel high fidelity audio controller
	1*LINE_OUT port	Supports LINE-OUT output, does not support MIC-IN input
	1*F_AUDIO pin	Standard audio pin （9Pin，2*5Pin，2.0mm）
	1*JAMP pin	The amplifier supports dual channel output with 8 ohms and 5 watts speakers （4Pin，1*4Pin，2.0mm）
USB function	2*USB3.2 port	Rear standard USB 3.2 Gen1 interface, with a maximum transmission bandwidth of 5Gbps
	2*USB2.0 port	Rear standard USB 2.0 interface, with a maximum transmission bandwidth of 480Mbps (Dual network motherboard does not have this interface)
	1*F_USB3_A pin	Front USB 3.2 pins, one set with 2USB 3.2 （19Pin，210Pin，2.0mm）
	1*F_USB1 pin	Front USB 2.0 pins, one set with 2USB 2.0 （9Pin，25Pin，2.0mm）
	1*F_USB2 pin	Front USB 2.0 pins, one set with 2USB 2.0 （9Pin，25Pin，2.0mm）
	1*Type_C port	Supports USB 3.2 Gen1 data transfer function

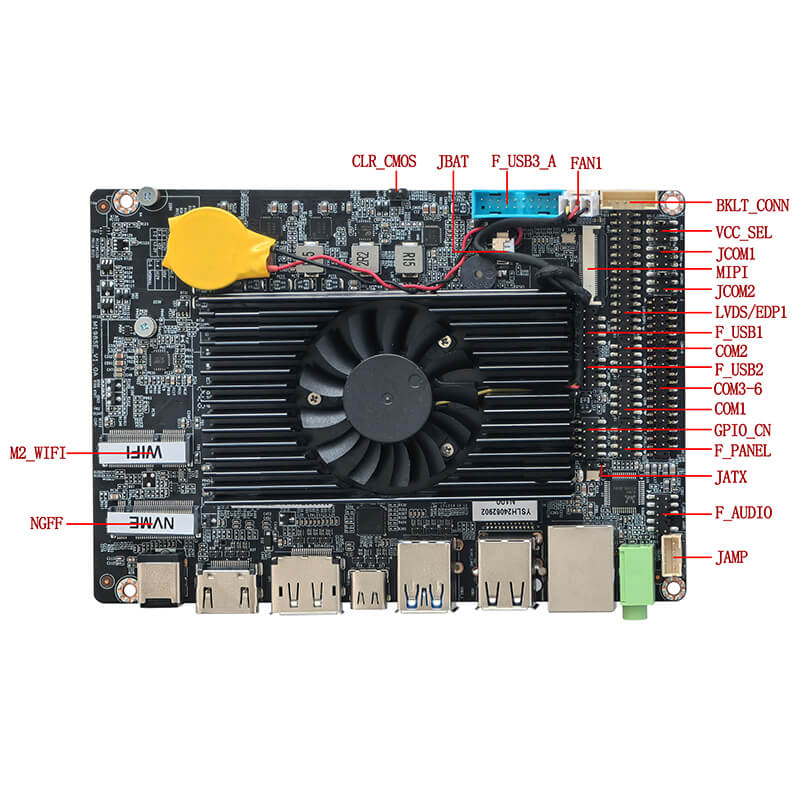

Switch function	1*F_PANEL pin	Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.0mm）
Switch function	1*JATX pin	Hardware control power on plug （3Pin，1*3Pin，2.0mm）
Other IO	1*COM1 pin	Serial port, supports standard RS232 （9Pin，2*5Pin，2.0mm）
	1*COM2 pin	Serial port, COM2 supports RS232/RS422/RS485 optional （9Pin，2*5Pin，2.0mm）
	1*COM3-6 pin	Serial port, supports standard RS232 （39Pin，2*20Pin，2.0mm）
	All serial ports can be hardware modified and support TTL
	1*JCOM2 pin	Can control the 9th pin voltage of COM2 to 0V/5V/12V（6Pin，2*3Pin，2.0mm）
	1*CLR_CMOS pin	Motherboard reset and discharge pins (default not installed) （2Pin，1*2Pin，2.0mm）
	1*FAN1 pin	CPU fan pin, supports temperature control （4Pin，1*4Pin，1.25mm）
	1*GPIO_CN pin	GPIO control pin, supports 8 GPIO channels （10Pin，2*5Pin，2.0mm）
Operating environment	Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity,no condensation
BIOS	AMI BIOS,supports timed startup and intelligent recognition of remote power on/off devices
Watch Dog	Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds)
Operating system	Supports Windows 11, Windows 10, Linux, etc
