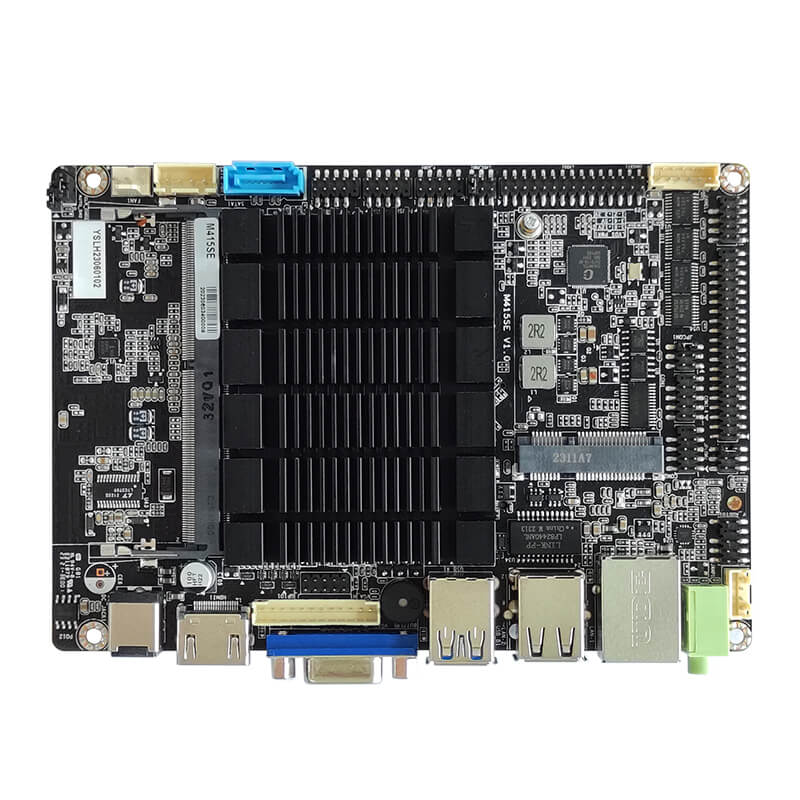

ELSKY M415SE Industrial Motherboard
SKU: ELSKY-M415SE
CPU
Supports Intel® Gemini Lake Refresh J and N series CPUs (e.g. J4125)
Size
3.5-inch: 146mm (L) x 102mm (W) x 23mm (H)
Memory
1 x NB-DDR4 (up to 16GB)
Storage
1 x MSATA interface, 1 x SATA1 interface
Network
Supports Realtek 8111H Gigabit Ethernet; optional support for Realtek 8106E 100Mbps Ethernet
Display
HDMI, VGA, LVDS (or EDP); supports synchronous/asynchronous dual-display output; optional triple-display support
Power Supply
Wide voltage input (DC 9V–36V); 5A or higher recommended
Interfaces

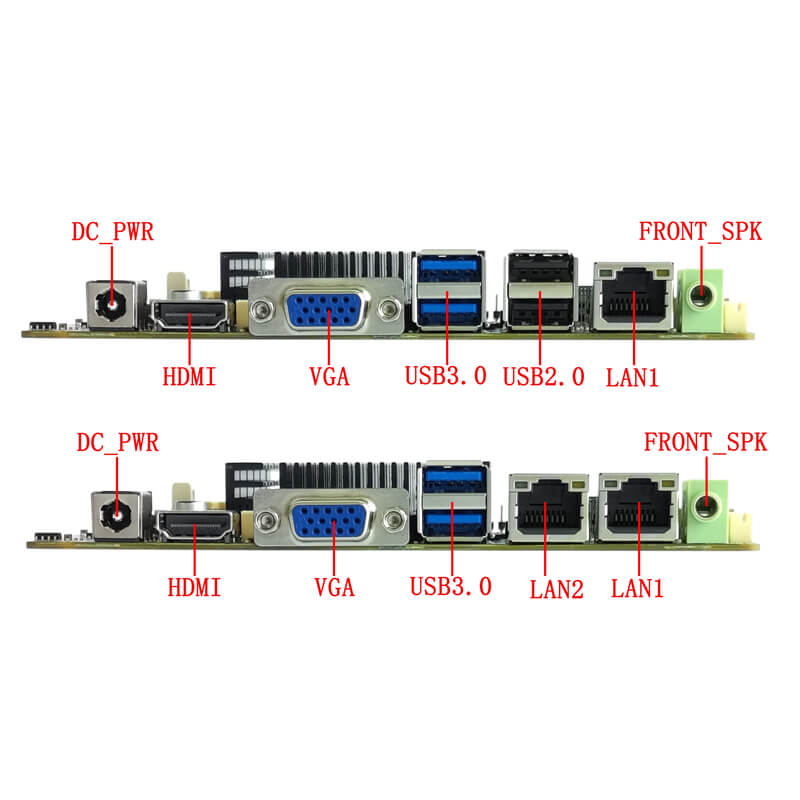

DC-IN, HDMI, VGA, USB 3.0, 2 x LAN, Line-Out
| Model | CPU | COM | 4K | LAN | USB2.0 | USB3.0 | SSD | Memory | Power |
| M415SE | Intel® Gemini Lake Refresh J and N series CPU(such as: J4125) | 6 | 4K 60Hz | 1 | 8 | 2 | 1*MSATA
1*SATA 3.0 |
1*NB-DDR4
MAX 16G |
9~36V wide voltage |
| 2 | 6 | 2 | |||||||
| Single network motherboard defaults to 10*USB, dual network motherboard defaults to 8*USB | |||||||||

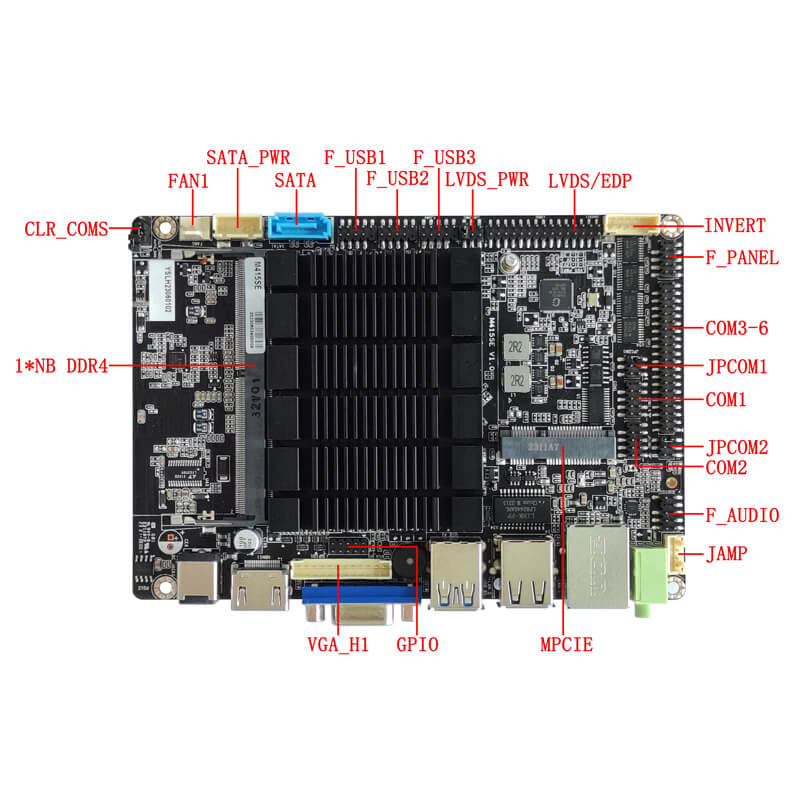

| Size | 3.5-inch: 146mm(L)*102mm(W)*23mm(H) | ||
| CPU | Intel ® Processor: Celeron J4025/J4125/N4020/N4120, Pentium J5040/N5030 | ||
| Memory | 1*NB-DDR4 SODIMM memory slot, supports single channel 2400MHz memory, low voltage 1.2V, maximum support 16GB | ||

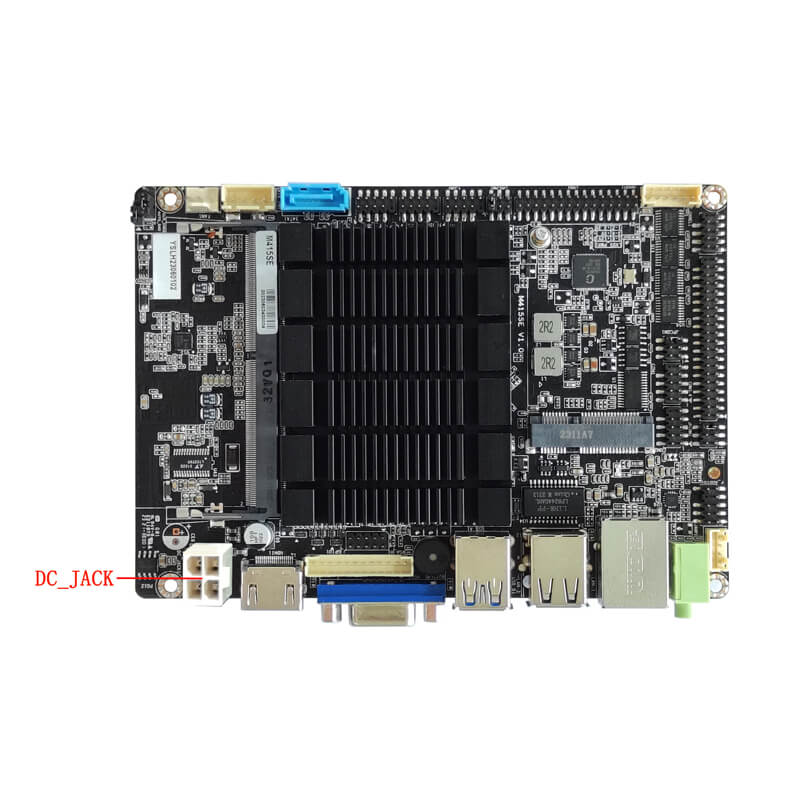

| Power supply | 1*DC_IN | The inner diameter of the DC head is 2.5mm, and the motherboard supports 9V~36V wide voltage power supply by default.
The full load power consumption of the motherboard is about 30W, and it is recommended to use a power supply of at least 9V3A; |
|
| Can change 1*ATX（4Pin） | |||
| Display function | Intel UHD Graphics 600,support single display, dual display/triple display replication, dual display/triple display expansion, single display under DOS | ||
| 1*VGA DB15 port | Support resolution 1920*1080@60Hz | ||
| 1*VGA_H1 pin | Support resolution 1920*1080@60Hz （12Pin，1*12Pin，2.0mm） | ||
| 1*HDMI®2.0 port | Support 4K resolution 4096/3840*2160@60Hz | ||
| 1*LVDS/EDP pin | Support resolution 1920*1080@60Hz （30Pin，2*15Pin，2.0mm） | ||
| 1*LVDS_PWR pin | LVDS voltage control pin （6Pin，2*3Pin，2.0mm） | ||
| 1*INVERT pin | LVDS backlight switch control pin （6Pin，1*6Pin，2.0mm） | ||
| Choose between LVDS and EDP, share pins, EDP uses EDP-B screen cable | |||
| Network function | 1/2*RJ45 LAN port
|
Single network supports Realtek 8111H Gigabit Ethernet card by default,
Optional support for Realtek8106E 100Mbps network card; Dual network support Realtek 8111H Gigabit Ethernet card+Realtek 8111H Gigabit Ethernet card Optional support for Realtek 8106E 100Mbps network card+Realtek 8106E 100Mbps network card Support network wake-up and PXE diskless boot function |
|
| 1*WiFi/4G port | Supports PCIE2.0 x1&USB signals, WIFI/4G/Bluetooth modules | ||
| Hard drive function | 1*SATA port | Standard SATA 3.0 hard drive interface | |
| 1*SATA_PWR pin | Hard drive power supply pin, capable of supplying 5V and 12V power （4Pin，1*4Pin，2.54mm） | ||
| 1*MSATA port | Supports MSATA 3.0, optional WiFi support | ||
| Sound function | Default support for Realtek ALC897 HD digital audio decoder and 6-channel high fidelity audio controller | ||
| 1*FRONT_SPK port | Supports audio output | ||
| 1*F_AUDIO pin | Standard audio pins （9Pin，2*5Pin，2.0mm） | ||
| 1*JAMP pin | The amplifier supports dual channel output with 8 ohms and 5 watts speakers （4Pin，1*4Pin，2.0mm） | ||
| USB function | 2*USB3.0 port | Rear standard USB 3.0 interface, with a maximum transmission bandwidth of 5Gbps | |
| 2*USB2.0 port | Rear standard USB 2.0 interface, with a maximum transmission bandwidth of 480Mbps(Dual network motherboard does not have this interface) | ||
| 1*F_USB1 pin | Front USB 2.0 pins, one set with 2*USB 2.0 （9Pin，2*5Pin，2.0mm） | ||
| 1*F_USB2 pin | Front USB 2.0 pins, one set with 2*USB 2.0 （9Pin，2*5Pin，2.0mm） | ||
| 1*F_USB3 pin | Front USB 2.0 pins, one set with 2*USB 2.0 （9Pin，2*5Pin，2.0mm） | ||
| Choose between the USB signal of MSATA interface and the built-in F_USB1 pins 1/3/5/7, with a default USB full signal | |||
| Switch function | 1*F_PANEL pin | Switch,power light,hard drive light,restart pin （9Pin，2*5Pin，2.0mm） | |
| Other IO | 1*COM1 pin | Serial port,COM1 supports RS232/RS422/RS485 optional（9Pin，2*5Pin，2.0mm） | |
| 1*COM2 pin | Serial port,supports standard RS232 （9Pin，2*5Pin，2.0mm） | ||
| 1*COM3-6 pin | Serial port,supports standard RS232 （39Pin，2*20Pin，2.0mm） | ||
| 1*JPCOM1/2 pin | Can control the 9th pin voltage of COM1/2 to 0V/5V/12V（6Pin，2*3Pin，2.0mm） | ||

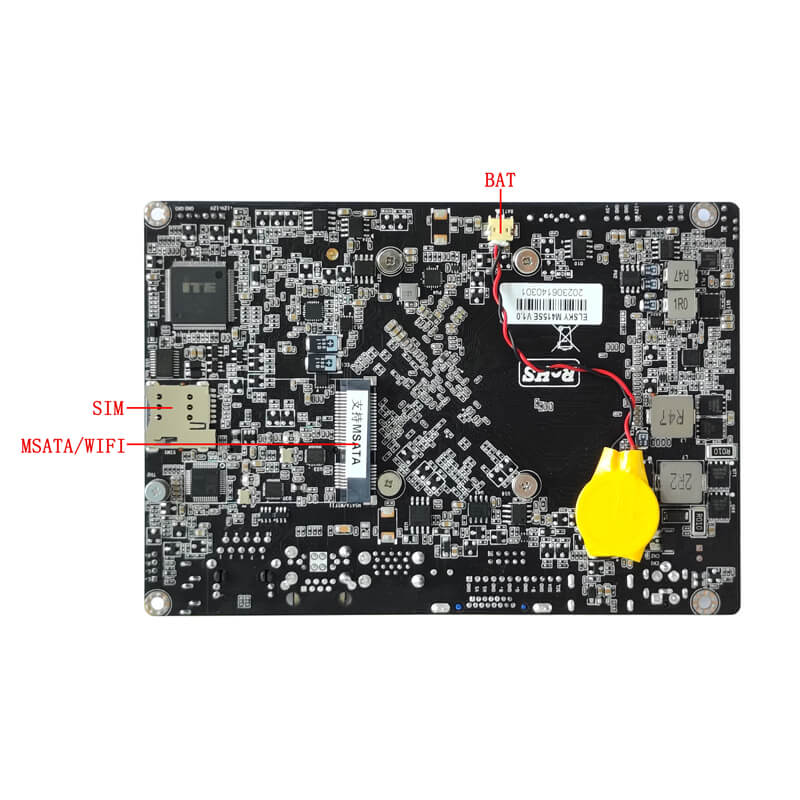

| 1*SIM slot | Supports SIM card, SIM card is required when using 4G | ||
| 1*CLR_CMOS pin | Motherboard reset and discharge pins （3Pin，1*3Pin，2.54mm） | ||
| 1*FAN1 pin | CPU fan pin, does not support temperature control （3Pin，1*3Pin，2.54mm） | ||
| 1*GPIO pin | GPIO control pin （10Pin，2*5Pin，2.0mm） | ||
| Operating environment | Working temperature: -10℃~60℃;
Working humidity: 5%~95% relative humidity,no condensation |
||
| BIOS | AMI BIOS,support timed startup and intelligent recognition of remote power on/off devices | ||
| Watch Dog | Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds) | ||
| Operating system | Windows 11, Windows 10, Linux, etc | ||
Core Advantages
Industrial Automation
Production Line Control, Equipment Monitoring, Data Acquisition
Machine Vision
AI Visual Inspection, Image Recognition and Analysis
Smart Commercial Displays
Digital Signage, Advertising Displays, Information Dissemination Terminals
Medical Imaging
Medical Imaging Terminals And Diagnostic Equipment
Smart Transportation
Traffic Signal Control And Road Network Monitoring
IoT Gateway
Data Aggregation And Edge Computing Nodes
