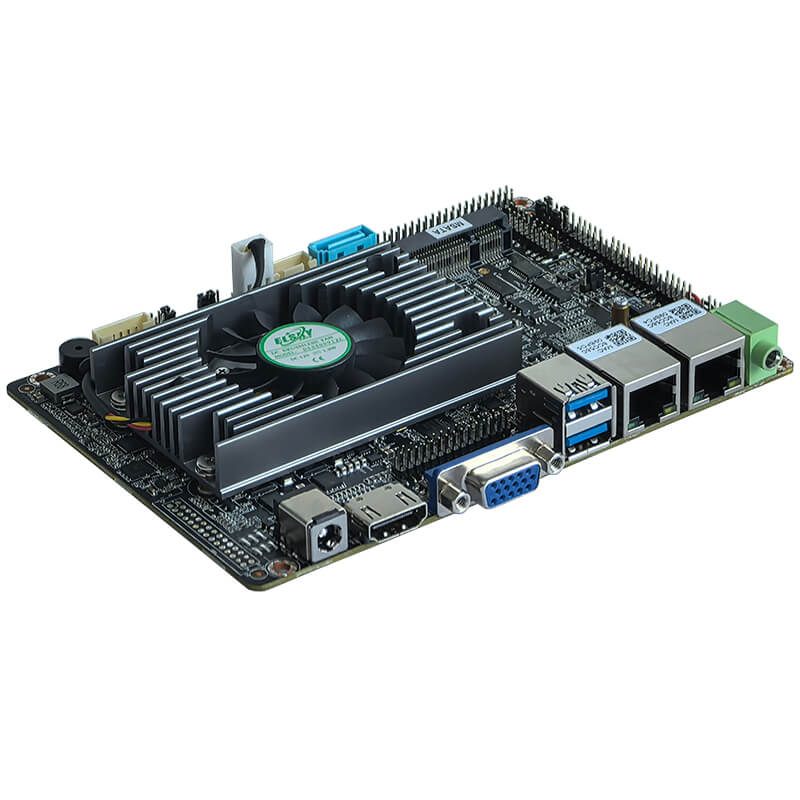

ELSKY M828SL Industrial Motherboard

Name: ELSKY M828SL Industrial Motherboard
Brand: SHENZHEN ELSKY TECHNOLOGY CO.,LTD

SKU: ELSKY-M828SL

CPU

Supports 3855U, 3955U, and 6th Gen Skylake, 7th Gen Kaby Lake, and 8th Gen Kaby Lake-R Core i3, i5, i7 processors

Size

3.5-inch: 146mm (L) x 102mm (W) x 23mm (H)

Memory

1 x DDR4 (up to 32GB)

Storage

1 x NGFF, 1 x SATA interface

Network

Realtek 8111H or Motorcomm YT6801 Gigabit Ethernet controller

Display

HDMI, VGA (or HDMI 2), LVDS (or EDP); supports synchronous/asynchronous triple and dual-display configurations

Power Supply

Supports wide-range voltage input (12V–24V) by default

Interfaces

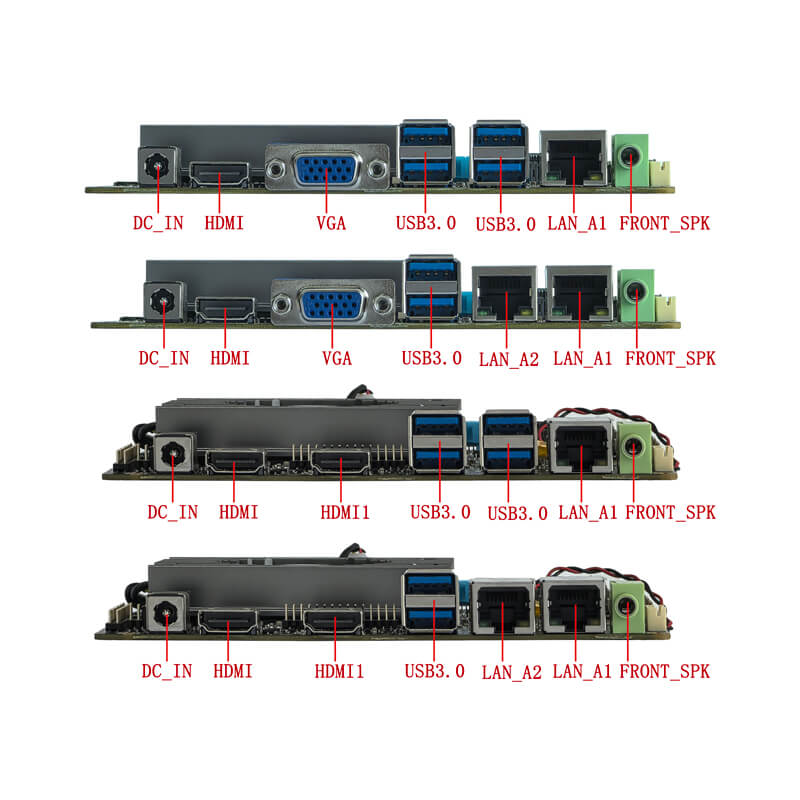

DC-in, HDMI, VGA (or HDMI 2), 2 x USB 3.0, 2 x LAN, Line-Out

Model	CPU	4K	LAN	COM	USB2.0	USB3.0	SSD	Memory	Power
M828SL	Supports 3855U, 3955U, 3865U, 3965U, 3867U, SkyLake 6th , KabyLake 7th and KabyLake R 8th gen core i3, i5, i7	√	1	6	4	4	1SATA 1M.2 1*MSATA	1*NB-DDR4 MAX 32G	Default 12V, Can be modified to support 12V~24V wide voltage
M828SL		√	2	6	4	2	1SATA 1M.2 1*MSATA	1*NB-DDR4 MAX 32G
Single network motherboards default to 8USB, dual network motherboards default to 6USB。

Size	3.5 inch: 146mm(L)102mm(W)23mm(H)
CPU	6th gen		3855U, 3955U and Skylake i3-6100U, i5-6200U, i7-6500U, etc.
	7th gen		3865U, 3965U and Kabylake i3-7100U, i5-7200U, i7-7500U etc.
	8th gen		3867U and Kabylake R i3-8130U, i5-8250U, i7-8550U, etc.
Chipset	Skylake, Kabylake high speed chipset
Power supply	1*DC_IN			The inner diameter of the DC head is 2.5mm, and it supports 12V power supply by default. The hardware can be modified to support 12V~24V wide voltage power supply; The full load power consumption of the 6th and 7th generation motherboard is about 40W, and it is recommended to use a 12V5A or higher power supply; The full load power consumption of the 8th generation motherboard is about 60W, and it is recommended to use a 12V7A or higher power supply;
	1*4Pin ATX (optional)
Memory	1*SODIMM slot			NB-DDR4 memory, supports 2133/2400MHz memory, maximum support 32G
Display function	6th gen	Intel® HD Graphics 510/520 graphics controller			Support single display, dual display/triple display replication, dual display/triple display expansion
	7th gen	Intel® HD Graphics 610/620 graphics controller
	8th gen	Intel® HD Graphics 610/620 graphics controller
	1*VGA DB15 port			Supports resolution 1920*1080@60Hz
	1*HDMI® port			Supports 4K resolution 4096/3840*2160@30Hz
	1*HDMI1® port (optional)			Supports 4K resolution 4096/3840*2160@30Hz
	1*EDP1 pin (optional)			EDP-C screen cable,supports 4K resolution 4096/38402160@60Hz（30Pin，215Pin，2.0mm）
	1*EDP_PWR1 pin			EDP working voltage control pin （6Pin，2*3Pin，2.0mm）
	VGA can be changed to HDMI1®, VGA, HDMI1®, and EDP are optional, with VGA supported by default; EDP1 cannot be displayed independently, and independent display may cause abnormalities. It needs to be used in conjunction with LVDS; When displaying on dual/triple screens, EDP1 cannot be used as the main screen and can only be used as the secondary screen.
	1*LVDS pin			Supports resolution 19201080@60HZ （30Pin，215Pin，2.0mm）
	1*LVDS_PWR pin			LVDS voltage control pin （6Pin，2*3Pin，2.0mm）
	1*INVERT pin			LVDS backlight switch backlight brightness adjustment control （6Pin，1*6Pin，2.0mm）
Network function	1/2*LAN port			Dual network: default supports Realtek 8111H Gigabit Ethernet card+Realtek 8111H Gigabit Ethernet card; Single network: supports Realtek 8111 Gigabit Ethernet card; Support network wake-up and PXE diskless boot function

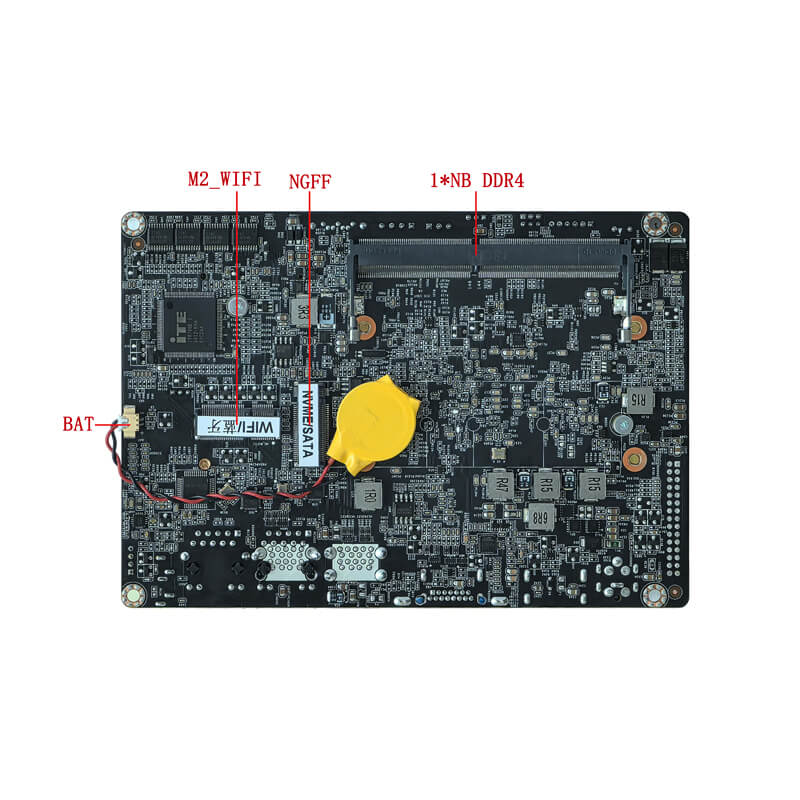

	1*M2_WIFI port			Supports Key-E interface M.2 2230 PCIE3.0 x1 & USB signals, supports WiFi Bluetooth modules
Hard disk function	1*MSATA port			Supports MINI_SATA disks and MSATA 3.0
	1*NGFF port			Supports Key-E interface M.2 2280 NVME PCIE3.0 x4 / SATA dual protocol adaptive standard SSD;
	1*SATA1 port			Standard SATA hard drive interface, supporting SATA 3.0
	1*SATA_PWR pin			Hard drive power supply pin, capable of supplying 5V and 12V power （4Pin，1*4Pin，2.54mm）
Sound function	Integrated Realtek ALC897 HD digital audio decoder, 6-channel high fidelity audio controller;
	1*FRONT_SPK port			Support audio output
	1*INT_SPK pin			The amplifier supports dual channel output with 8 ohms and 5 watts speakers （4Pin，1*4Pin，2.0mm）
	1*F_AUDIO pin			Standard audio pin （9Pin，2*5Pin，2.0mm）
USB function	4*USB3.0 port			Rear standard USB 3.0 interface
	1*F_USB1 pin			Front USB2.0 pin, one set with 2USB2.0 （9Pin，25Pin，2.0mm）
	1*F_USB2 pin			Front USB2.0 pin, one set with 2USB2.0 （9Pin，25Pin，2.0mm）

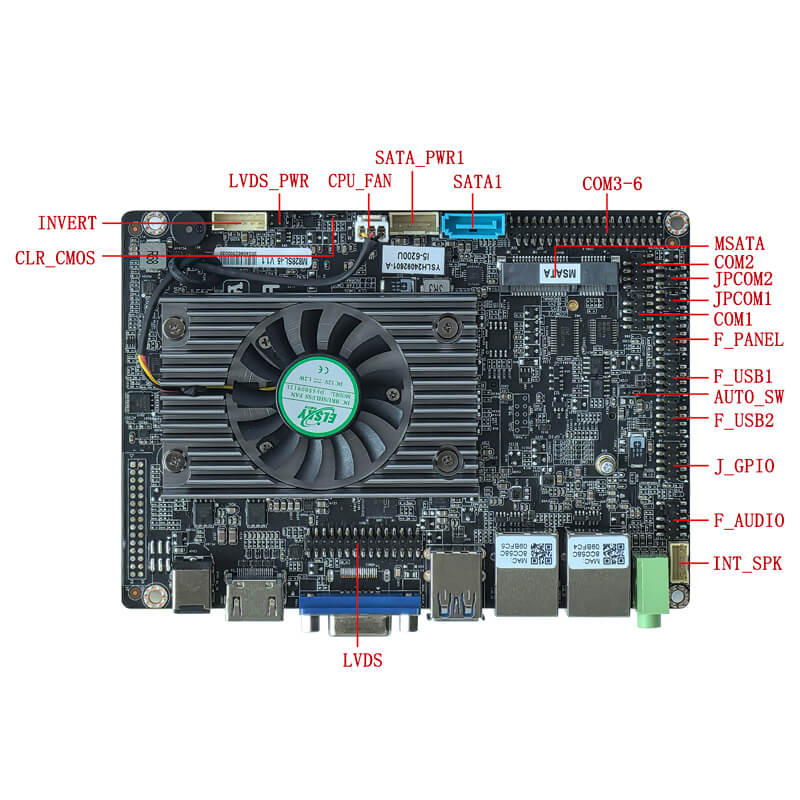

Switch function	1*F_PANEL pin			Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.0mm）
	1*AUTO_ON pin			Power on and boot pin （6Pin，2*3Pin，2.0mm）
Other I/O	COM1 pin			Serial port, supports standard RS232 （9Pin，2*5Pin，2.0mm）
	COM2 pin			Serial port, supports RS232/RS422/RS485 optional （9Pin，2*5Pin，2.0mm）
	COM3-6 pin			Serial port, supports standard RS232 （40Pin，2*20Pin，2.0mm）
	1*JPCOM1 pin			Control COM1 pin 9 voltage 0V/5V/12V optional （6Pin，2*3Pin，2.0mm）
	1*JPCOM2 pin			Control COM2 pin 9 voltage 0V/5V/12V optional （6Pin，2*3Pin，2.0mm）
	1*CLR_CMOS pin			Motherboard reset and discharge pins （3Pin，1*3Pin，2.0mm）
	1*CPU_FAN pin			CPU fan pin, no temperature control （3Pin，1*3Pin，2.54mm）
	1*J_GPIO pin			GPIO control pins, supporting 8 GPIO channels （10Pin，2*5Pin，2.0mm）
Operating environment	Working temperature: -10℃~60℃； Working humidity: 5%~95% relative humidity,no condensation
BIOS	AMI BIOS,supports power on, timed power on, and intelligent recognition of remote power on/off devices
Watch Dog	Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds)
Operating system	6th/7th generations supports Windows 10, Windows 8, Windows 7, Linux, etc; 8th generation supports Windows 10, Linux, etc
