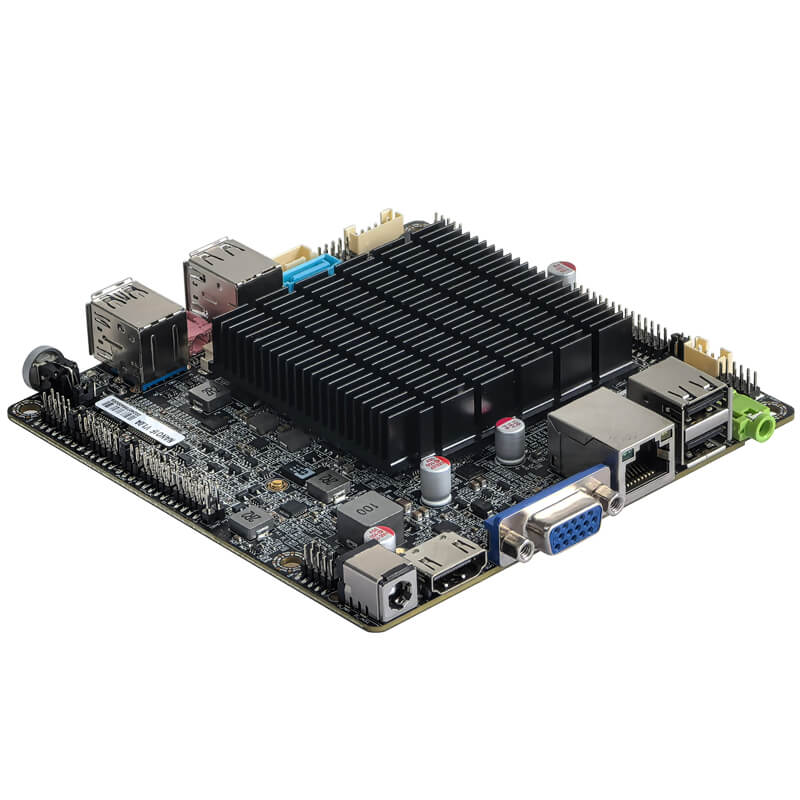

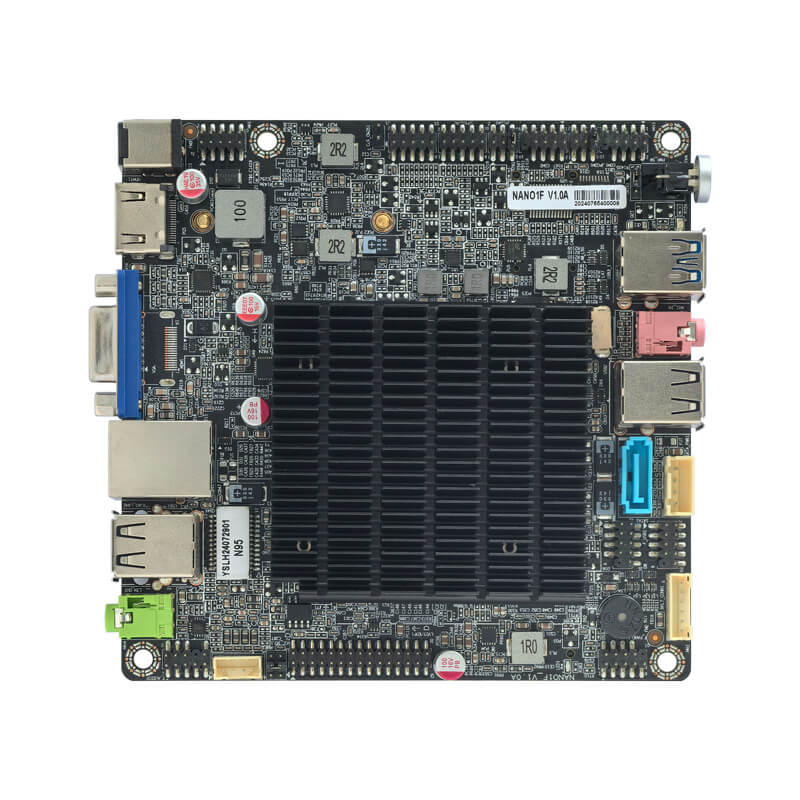

ELSKY NANO1F Industrial Motherboard

Name: ELSKY NANO1F Industrial Motherboard
Brand: SHENZHEN ELSKY TECHNOLOGY CO.,LTD

SKU: ELSKY-NANO1F

CPU

Supports Intel Alder Lake-N series (N200, N100, N97, N95, i3-N305, etc.)

Size

120mm (L) x 120mm (W) x 27mm (H)

Memory

1 x NB-DDR4 (Max 16GB)

Storage

1 x NGFF (M.2) interface, 1 x SATA interface

Network

Default: Realtek 8111H Gigabit LAN; Optional: Motorcomm YT6801 Gigabit LAN

Display

HDMI, VGA (or HDMI 2), LVDS (or EDP); supports synchronous/asynchronous triple and dual-display configurations

Power Supply

Supports 12–24V wide-range voltage input; 12V/4A or higher power supply recommended

Interfaces

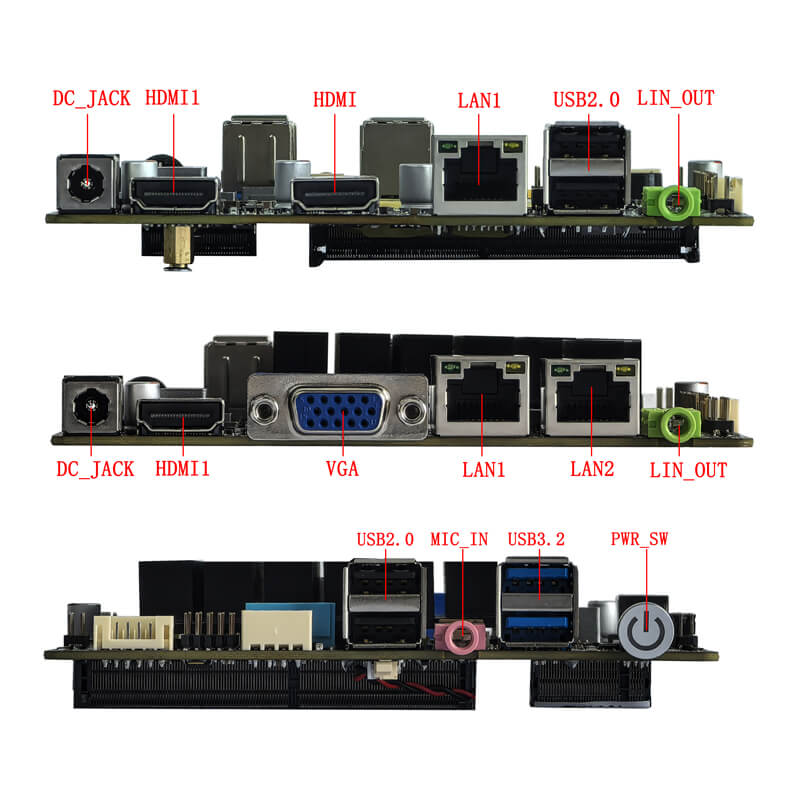

DC-in, HDMI, VGA (or HDMI 2), 2 x USB 3.0, 2 x USB 2.0, LAN, Line-Out, Mic-In, Power Switch

Model	CPU	4K	COM	LAN	USB2.0	USB3.2	SSD	Memory	Power
NANO1F	Supports Intel Alder Lake-N series N200, N100, N97, N95, i3-N305, etc	1HMDI 4K 60Hz; Optional 2HMDI 4K 60Hz	2	1	8	2	1M.2 1SATA 3.0	1*NB-DDR4 MAX 16G	+12~24V Wide voltage
				2	6	2
Single network motherboard defaults to 10USB; Dual network motherboard defaults to 8USB

Model	NANO1F
Size	120mm(L)120mm(W)27mm(H) Height with fan radiator or fanless radiator
CPU	Supports Intel Alder Lake-N series N200, N100, N97, N95, i3-N305, etc

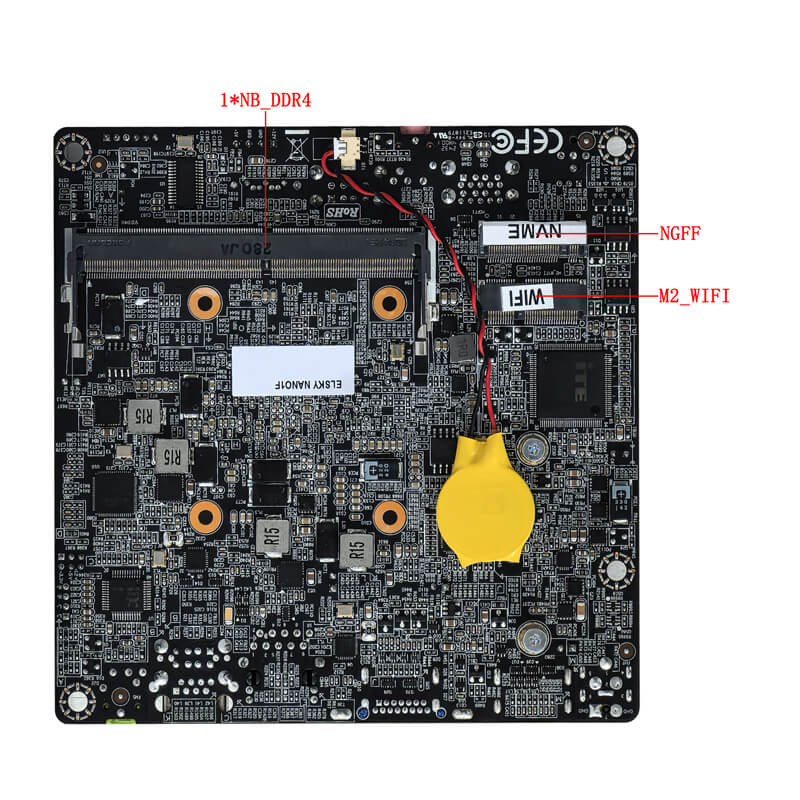

Memory	1*NB-DDR4 SODIMM memory slot, supports single channel 3200MHz memory, low voltage 1.2V, maximum support 16GB
Power supply	1*DC_JACK	Supports 12-24V wide voltage power supply, with a DC head inner diameter of 2.5MM The motherboard has a full load power consumption of approximately 30W. It is recommended to use a 12V/4A or higher power supply
	1*DC_PWR(4Pin) optional
	DC_JACK or DC_PWR are two options, and the motherboard supports DC_JACK by default
Display function	Intel UHD Graphics, support single display, dual display/triple display replication, dual display/triple display expansion
	1*HDMI1 2.0 port	Supports 4K resolution 4096/3840*2160@60Hz
	1*VGA DB15 port	Supports resolution 1920*1080@60Hz
	1*HDMI 2.0 port (optional)	Supports 4K resolution 4096/3840*2160@60Hz
	VGA interface can be changed to HDMI interface, and after the change, it supports dual HDMI interfaces

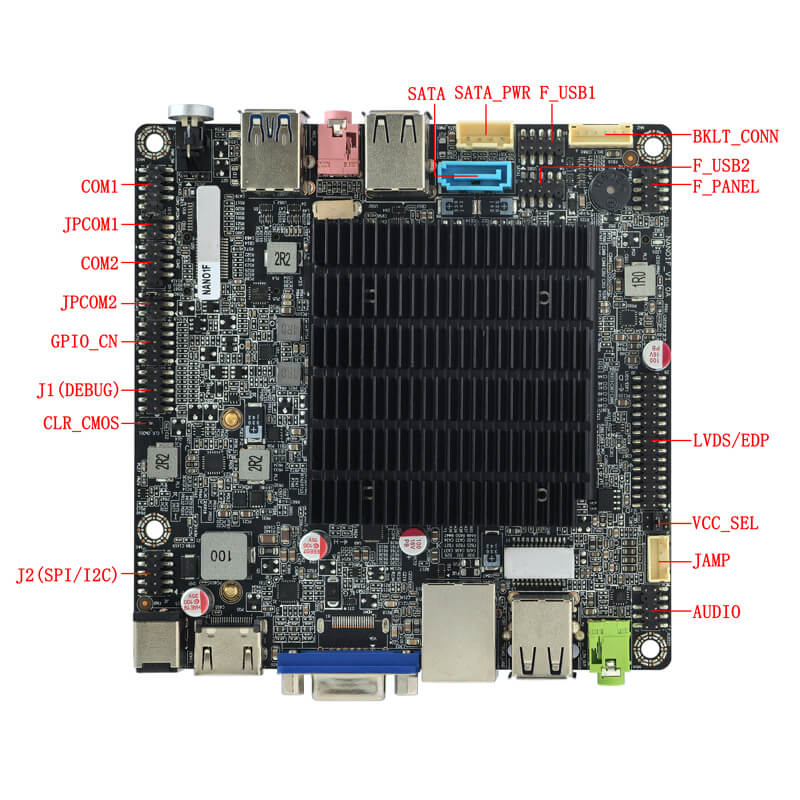

	1*LVDS/EDP1 pin	Supports resolution19201080@60Hz （30Pin，215Pin，2.0mm）
	1*VCC_SEL pin	LVDS/EDP1 working voltage control pin （6Pin，2*3Pin，2.0mm）
	1*BKLT_CONN pin	LVDS/EDP1 backlight switch control pin （6Pin，1*6Pin，2.0mm）
	LVDS and EDP are two options, with LVDS supported by default, can be modified to support EDP1, using EDP-B screen cable
Network function	1/2*RJ45 LAN port	Single network: Default Realtek 8111H Gigabit Ethernet card; Optional Motorcomm YT6801 Gigabit Ethernet Card; Dual network: Support Realtek 8111H+Realtek 8111H Gigabit Ethernet cards; Optional Motorcomm YT6801+Motorcomm YT6801 Gigabit thernet cards; Supports network wake-up and PXE diskless boot function
Network function	1*M2_WIFI port	PCIE3.0 signal, supports Key-E interface M.2 2230 WiFi Bluetooth module
Hard disk function	1*NGFF(M.2) port	PCIE3.0 signal, supports Key-M interface default M.2 2280 hard drive; Support SATA and NVME (PCIE) protocols optional, hardware modification required; Both protocols are available, subject to actual production;
	1*SATA1 port	Standard SATA 3.0 hard drive interface, maximum transfer speed of 6.0 Gbps
	1*SATA_PWR1 pin	The hard drive power supply pin can be powered with 5V or 12V. （4Pin，1*4Pin，2.54mm）
Sound function	Integrated Realtek ALC897 HD digital audio decoder, 6-channel high fidelity audio controller
	1*LIN_OUT port	Supports audio output (green)
	1*MIC_IN port	Supports microphone input (red)
	1*JAMP pin	The amplifier supports dual channel output with 8 ohms and 5 watts speakers（4Pin，1*4Pin，2.0mm）
	1*F_AUDIO pin	Standard audio pin （9Pin，2*5Pin，2.0mm）
USB function	2*USB3.2 port	Rear standard USB 3.2 Gen1 interface, with a maximum transmission bandwidth of 5Gbps
	4*USB2.0 port	Rear standard USB 2.0 interface, with a maximum transmission bandwidth of 480Mbps
	1*F_USB1 pin	Front USB 2.0 pins, one set with 2USB 2.0 （9Pin，25Pin，2.0mm）
	1*F_USB2 pin	Front USB 2.0 pins, one set with 2USB 2.0 （9Pin，25Pin，2.0mm）
Switch function	1*F_PANEL pin	Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.0mm）
	1*PWR_SW button	Switch button
	1*JATX1 pin	Support hardware control for power on and startup（3Pin，1*3Pin，2.0mm）
Other I/O	1*COM1 pin	Serial port,onlt supports RS232 （9Pin，2*5Pin，2.0mm）
	1*COM2 pin	Serial port,optionally support RS232 /RS422 /RS485 （9Pin，2*5Pin，2.0mm）
	1*JPCOM1/2 pin	Control COM1/2 pin 9 voltage 0V/5V/12V optional （6Pin，2*3Pin，2.0mm）
	1*CLR_CMOS pin	Motherboard reset and discharge pins （2Pin，1*2Pin，2.54mm）
	1*CPU_FAN pin	CPU fan pin, supports temperature control （4Pin，1*4Pin，1.25mm）
	1*GPIO_CN pin	Standard GPIO pin （10Pin，2*5Pin，2.0mm）
	1*J1 pin	Debugging pins （10Pin，2*5Pin，2.0mm）
	1*J2 pin	Supports SPI protocol or I2C protocol devices （10Pin，2*5Pin，2.0mm）
Operating environment	Working temperature: -10℃~60℃; Working humidity: 5%~95% trlative humidity,no condensation
BIOS	AMI BIOS,supports power on, timed power on, and intelligent recognition of remote power on/off devices
Watch Dog	Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds)
Operating system	Supports Windows 11, Windows 10, Linux, etc (N100 and i3-N300 support Windows 10, Windows 11 22H2 and above versions)
