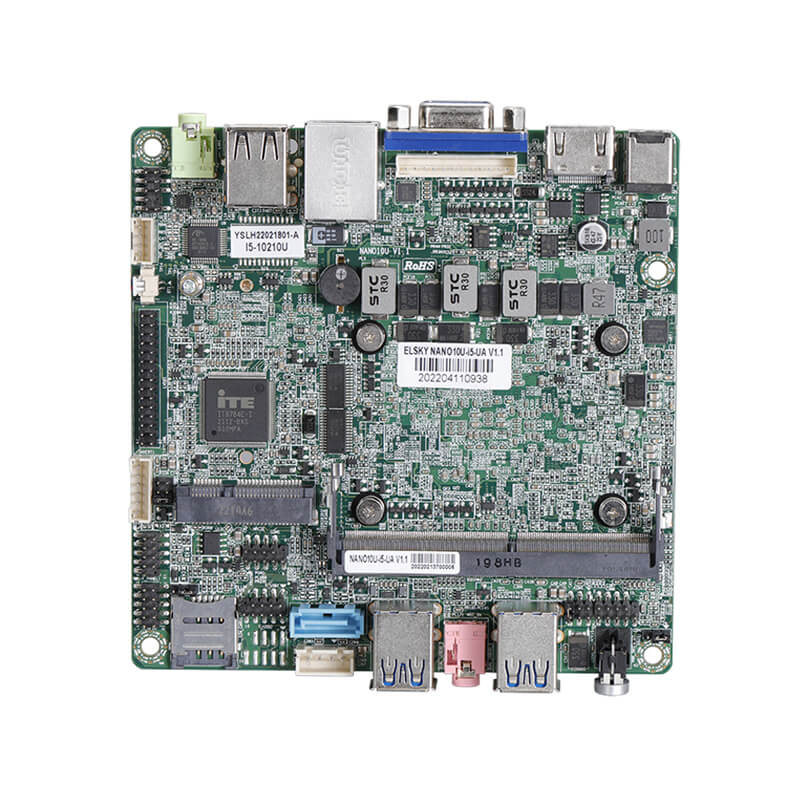

ELSKY NANO8U NANO10U Industrial Motherboard

Name: ELSKY NANO8U NANO10U Industrial Motherboard
Brand: SHENZHEN ELSKY TECHNOLOGY CO.,LTD

SKU: ELSKY-NANO8U NANO10U

CPU

Supports 8th Gen Whiskey Lake Core i3/i5/i7 and 10th Gen Comet Lake Core i3/i5/i7

Size

120mm (L) x 120mm (W) x 33mm (H)

Memory

1 x DDR4 (Max 32GB)

Storage

1 x SATA1 interface, 1 x M.2 interface

Network

Default: Realtek 8111H Gigabit LAN; Optional: Motorcomm YT6801 Gigabit LAN or Realtek 8106E 100M LAN

Display

HDMI, VGA (or HDMI 2), LVDS (or EDP); supports synchronous/asynchronous triple and dual-display output

Power Supply

Supports DC 12V/19V; recommended power supply: 12V/7A or 19V/5A (or higher)

Interfaces

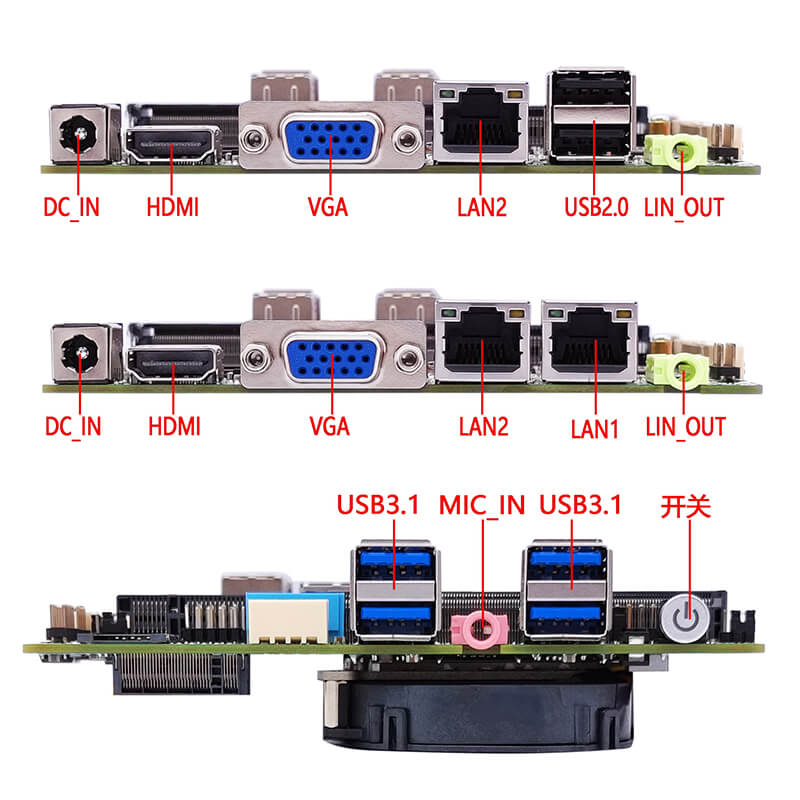

DC-in, HDMI, VGA (or HDMI 2), 4 x USB 3.2, 2 x USB 2.0, LAN, Line-out, Mic-in, PWR-SW

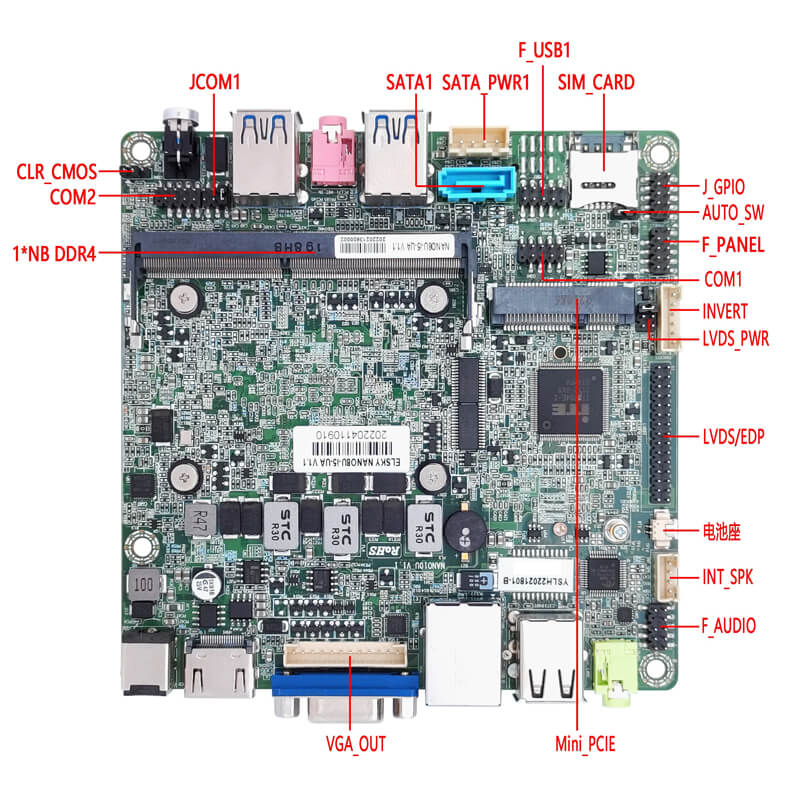

Motherboard model	CPU	4K	LAN	COM	USB2.0	USB3.1	SSD	Memory	Power
NANO8U-UA	Support Whiskey Lake 8 gen core i3,i5,i7	support	1	2	4	4	1M.2 1SATA 3.0 optionalMSATA	1*NB DDR4 32GB MAX	12/19V
			2	2	2
NANO10U-UA	Support Comet Lake 10 gen core i3,i5,i7	support	1	2	4	4
			2	2	2
Single net default 8USB is available, and dual net default 6USB is available

Motherboard size	120mm（L）120mm（W）33mm（H）
CPU	NANO8U-UA	Support 8 Gen Whiskey Lake CPU：I3-8145U,I5-8265U,I7-8665U etc.
	NANO10U-UA	Support 10 Gen Comet Lake CPU：I3-10110U,I5-10210U,I7-10510U etc.
Memory	1*DDR4 SODIMM memory slot，support 2133/2400/2666MHz，low voltage 1.2V，up to support 32GB
Power supply	1*DC_IN		Support 12V / 19V voltage, DC head inner diameter of 2.5MM The full load power consumption of the motherboard is about 60W, and it is recommended to use 12V/7A or above 19V5A
	1*DC_ATX
	DC _ IN and DC _ ATX are optional, and the motherboard supports DC _ IN by default
Display function	Integrated Intel UHD Graphics hypercore graphics card, support single display, double display/triple display copy, double display/triple display extension, DOS single display
	1*HDMI 1.4 Port		Support 4k resolution 4096/3840 * 2160@30Hz
	1*VGA DB15 Port		Support resolution 1920 * 1080@60HZ
	1*JVGA PIN		Support resolution 1920 * 1080@60HZ （14Pin，1*14Pin，2.0mm）
	1*LVDS/EDP PIN		Support resolution 1920 * 1080@60Hz （30Pin，2*15Pin，2.0mm）
	1*INVERT PIN		The LVDS backlighting switch back brightness adjustment control （6Pin，1*6Pin，2.0mm）
	1*LVDS_PWR PIN		The LVDS / EDP operating voltage control pin （6Pin，2*3Pin，2.0mm）
	Motherboard LVDS and EDP for the two choice, the default support LVDS, if EDP is needed, then change the motherboard
Internet function	1/2*RJ45 LAN Port		Motherboard single network default support Realtek 8111H Gigabit network card; Optional support for Yutawei YT6801 Gigabit network card; Optional Realtek 8106E 100 million abit network card Motherboard dual network support Realtek 8111H + Realtek 8111H double Gigabit network card; Optional support for Yutai YT6801 + Yutai YT6801 double Gigabit network card; Optional support Realtek 8106E + Realtek 8106E double 100 million abit network card; Support network wake up and PXE no disk start function
	1*Mini-PCIE Port		PCIE 3.0 signal,Support WIFI / 3G / 4G / GPS / Bluetooth module, optional support MSATA

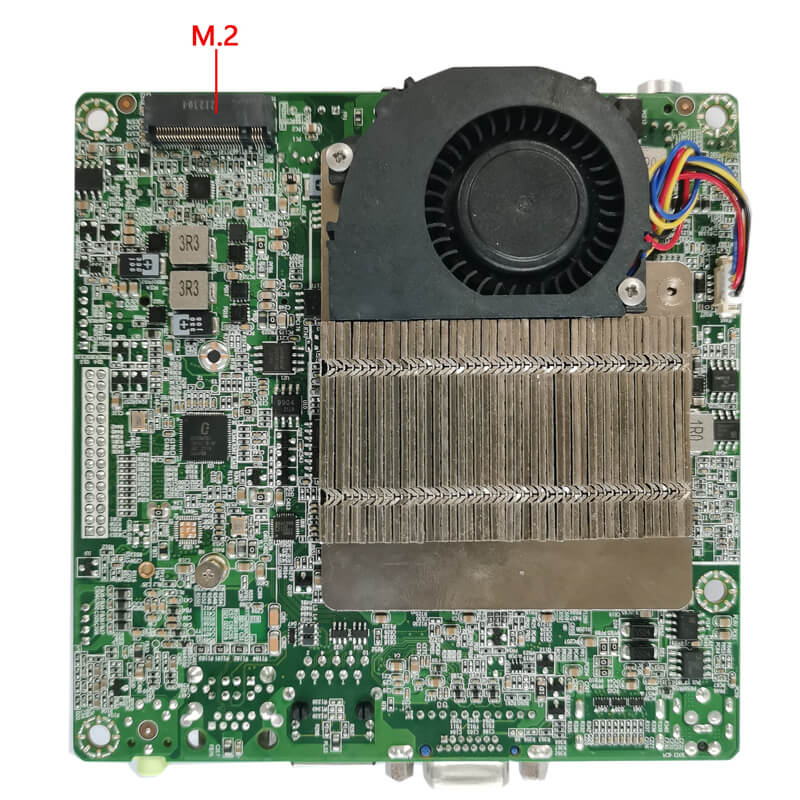

Hard Disk Function	1*M.2 Port		PCIE 3.0 signal,By default, support Key-M port M.2 2280, optional 2242; support NVME (PCIE) protocol and SATA protocol disk;
	1*SATA1 Port		Standard SATA 3.0 hard disk interface, a maximum transmission speed of 6.0 Gbps
	1*SATA_PWR1 PIN		Hard disk power supply pin, the cable power 5V, 12V. （4Pin，1*4Pin，2.54mm）
Sound function	Integrated Cmedia HS_100B USB audio chip
	1*LIN_OUT Port		Supports audio output (green)
	1*MIC_IN Port		Support for microphone input (red)
	1*INT_SPK PIN		The amplifier supports 8 O, 5 W horn dual channel output （4Pin，1*4Pin，2.0mm）
	1*F_AUDIO PIN		Standard audio insert （9Pin，2*5Pin，2.50mm）
USB function	4*USB3.1 Port		Rear standard USB3.1 Gen2 interface, the maximum transmission broadband is 10.0Gbps
	2*USB2.0 Port		Post-mounted standard USB2.0 interface
	1*F_USB1 PIN		Front USB2.0 pin, one group has 2 * USB2.0 （9Pin，2*5Pin，2.0mm）
	1*F_USB2 PIN		Front USB2.0 pin, one group has 2 * USB2.0 Default no pin （9Pin，2*5Pin，2.0mm）
Switch function	1*F_PANEL PIN		Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.0mm）
	1*PWR_SW button		Switch button
	1*AUTO_SW PIN		Hardware control power-on boot pin （3Pin，1*3Pin，2.0mm）
Other I/O	1*COM1 PIN		Serial port, with optional support RS232 /RS422 /RS485 （9Pin，2*5Pin，2.0mm）
	1*COM2 PIN		Serial port, Only supportRS232 （9Pin，2*5Pin，2.0mm）
	1*JCOM1 PIN		Control COM19th foot voltage 0V / 5V / 12V is optional （6Pin，2*3Pin，2.0mm）
	1*SIM_CARD Slot		SIM card supported, SIM card required for 3G / 4G
	1*CLR_CMOS PIN		Motherboard with zero clearance, discharge plug pin （3Pin，1*3Pin，2.0mm）
	1*CPU_FAN PIN		CPU fan pin, support for temperature control （4Pin，1*4Pin，1.25mm）
	1*J_GPIO PIN		Standard GPIO pin insert （10Pin，2*5Pin，2.0mm）
Operating environment	Working temperature：-10℃~60℃； Working humidity：5%~95% relative humidity, non-condensing
BIOS	AMI BIOS， Support power-on boot, scheduled boot, remote switch machine intelligent identification
Watch Dog	Watchdog programming, support hardware reset function (256 levels, 0~255 seconds）
Operating system	Support Windows 11, Windows 10, Linux etc.
