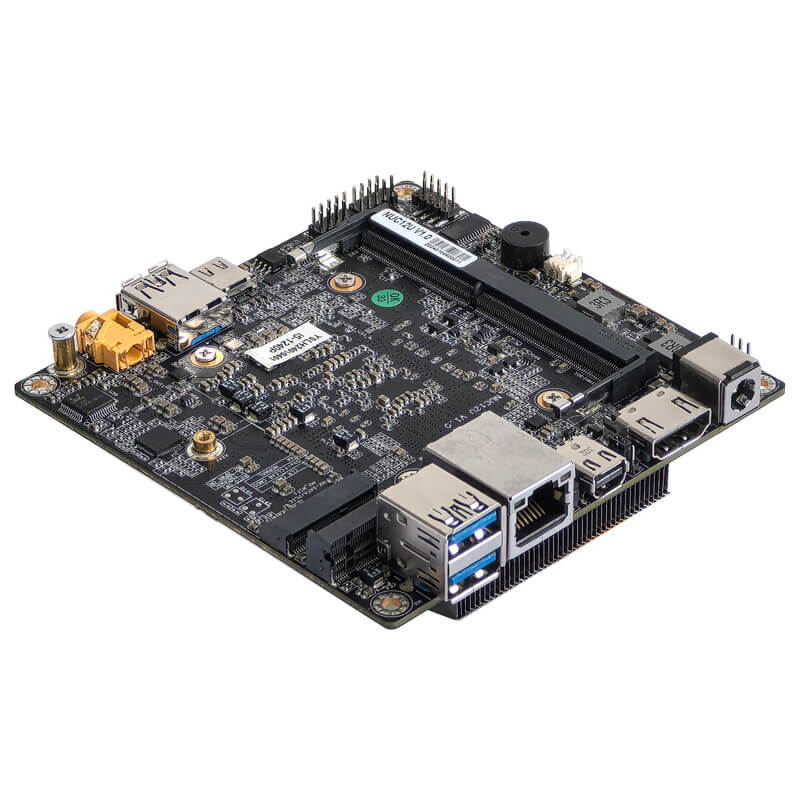

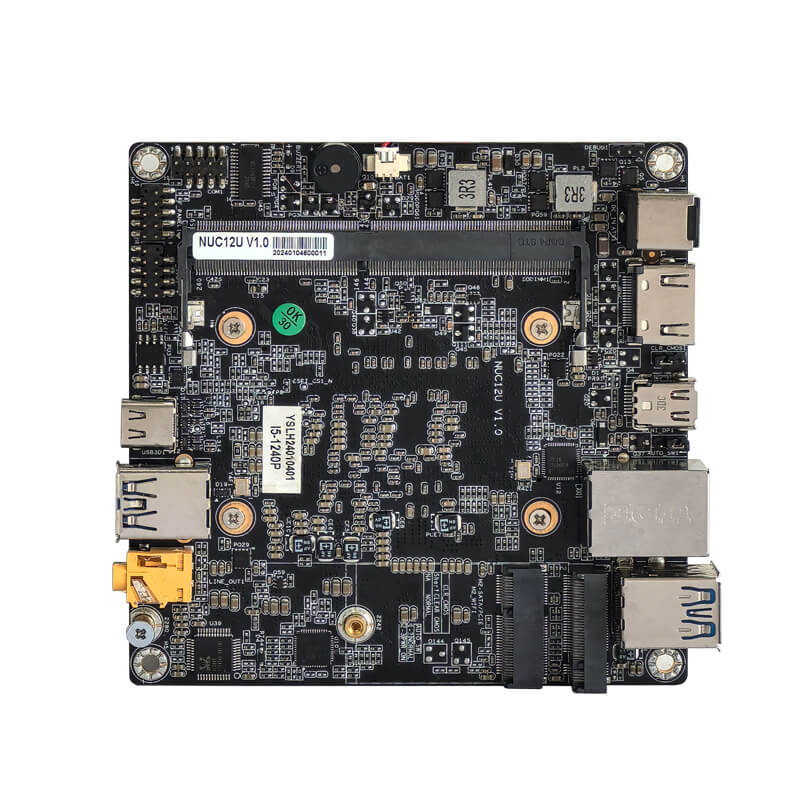

ELSKY NUC12 NUC13 Industrial Motherboard
SKU: ELSKY-NUC12 NUC13
CPU
12th Gen Intel Alder Lake U/P/H series (i3, i5, i7); 13th Gen Intel Raptor Lake U/P/H series (i3, i5, i7)
Size
100mm (L) x 100mm (W) x 32mm (H)
Memory
1 x NB-DDR4 (Max 32GB)
Storage
1 x M.2 (SATA/PCIE) interface
Network
Intel WGi219V Gigabit Ethernet; supports Wake-on-LAN and PXE
Display
Mini-DP, HDMI, Type-C; supports dual or triple display (synchronous or asynchronous)
Power Supply
DC 12V–24V wide voltage input (7A or higher recommended)
Interfaces

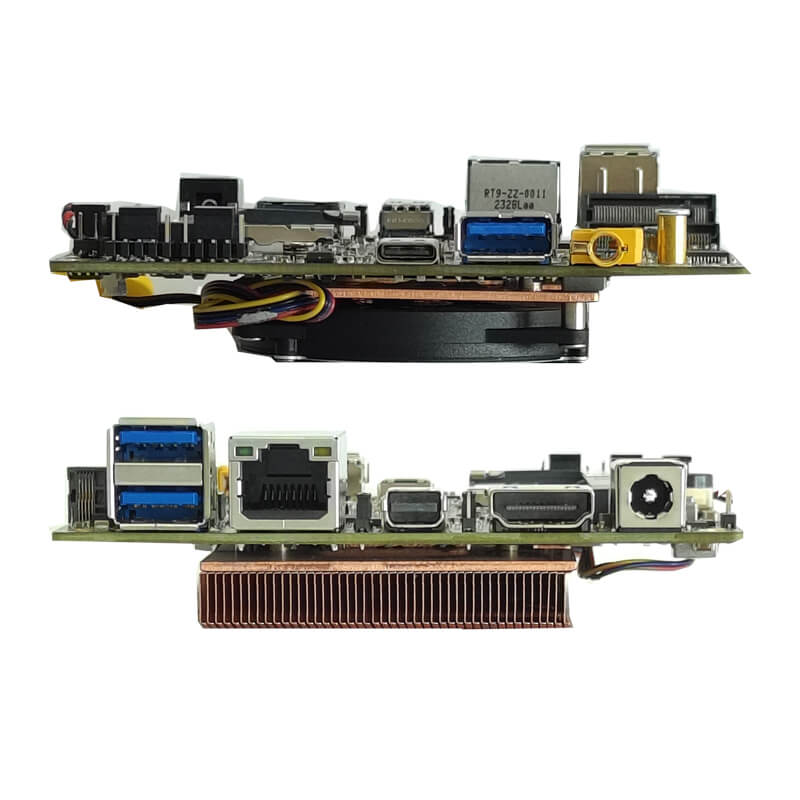

DC-in, HDMI, Mini-DP, Type-C, 3 x USB 3.2, LAN, Audio
| Motherboard model | CPU | 4K | LAN | USB2.0 | USB3.2 | Type-C | Memory | SSD | Power |
| NUC12U | Support Intel Alder Lake 12th generation U/P
series i3, i5, i7 |
1*HDMI
4K 60Hz / 1*Mini-DP 4K 60Hz / 1*Type_C 4K 60Hz |
1 | 2 | 3 | 1 | 1*NB-DDR4
MAX 32G |
1*M.2 | +12~24V |
| NUC13U | Support Intel Raptor Lake 13th generation U/P series i3, i5, i7 | 1 | 2 | 3 | 1 |
| Motherboard size | 100mm（L）*100mm（W）*32mm（H） | |
| CPU processor | NUC12U | Support 12th generation Intel Alder Lake U/P series i5-1235U, i5-1240P, etc. |
| NUC13U | Support 13th generation Intel Raptor Lake U/P series i5-1335U, i7-1360P, etc. | |
| Power supply | 1*DC_IN
(Can be changed to 4Pin ATX) |
The inner diameter of the DC head is 2.5MM, supporting 12V~24V wide voltage power supply
U series CPU has a maximum turbo frequency power consumption of 55W, and it is recommended to use a 12V 7A or above power supply; P series CPU has a maximum turbo frequency power consumption of 64W, and it is recommended to use a 12V 7A or above power supply; |
| Memory | 1*SODIMM slot | Support 2133/2400/2666/2933/3200MHz memory, maximum support 32G |
| Display functions | Integrated Intel UHD Graphics, supports single display, dual display/triple display copy, dual display/triple display expansion | |
| 1*Mini-DP interface | Does not support DP++, supports 4K resolution 4096/3840*2160@60Hz | |
| 1*HDMI 2.0 interface | Support 4K resolution 4096/3840*2160@60Hz | |
| 1*Type-C interface | Support 4K resolution 4096/3840*2160@60Hz | |
| The Type-C interface on the motherboard does not support hot plugging when using the display function | ||
| Network Features | 1*RJ45_LAN interface | Intel WGi219V Gigabit LAN, supports network wake-up, PXE function |
| 1*M.2_WIFI interface | PCIE3.0 signal, support Key-E interface M.2 2230 WIFI/Bluetooth module | |
| Hard disk function | 1*M.2-SATA/PCIE interface | PCIE3.0 signal, supports Key-M interface, default M.2 2280 hard disk, optional M.2 2242 hard disk;
Default support NVME (PCIE) protocol, can change hardware to support SATA protocol |
| Sound Features | Integrated Realtek ALC897 HD digital audio decoder, 6-channel high-fidelity audio controller; | |
| 1*LINE_OUT interface | Support LINE_OUT output and MIC_IN input | |
| The mainboard HDMI interface supports HDMI display audio output | ||
| The motherboard Mini-DP interface supports DP monitor audio output | ||
| The motherboard Type-C interface supports Type-C monitor audio output | ||
| USB Features | 3*USB3.2 interface | Rear standard USB3.2 Gen1 interface, maximum transmission bandwidth is 5Gbps |
| 1*Type-C interface | Standard Type-C 3.0 interface, can connect USB devices | |
| 1*F_USB1 pin | Front USB2.0 pin, one set has 2*USB2.0 （9Pin，2*5Pin，2.0mm） | |
| Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.0mm） |
| 1*AUTO_SW pin | Hardware power-on control pin （3Pin，1*3Pin，2.0mm） | |
| Other I/O | 1*COM1 pin | Support standard RS232/RS422/RS485 optional (BIOS setting)
（9Pin，2*5Pin，2.0mm） |
| COM1 cannot be changed. Hardware supports TTL | ||
| 1*CLR_CMOS pin | Discharge the motherboard and clear the pins （3Pin，1*3Pin，2.0mm） | |

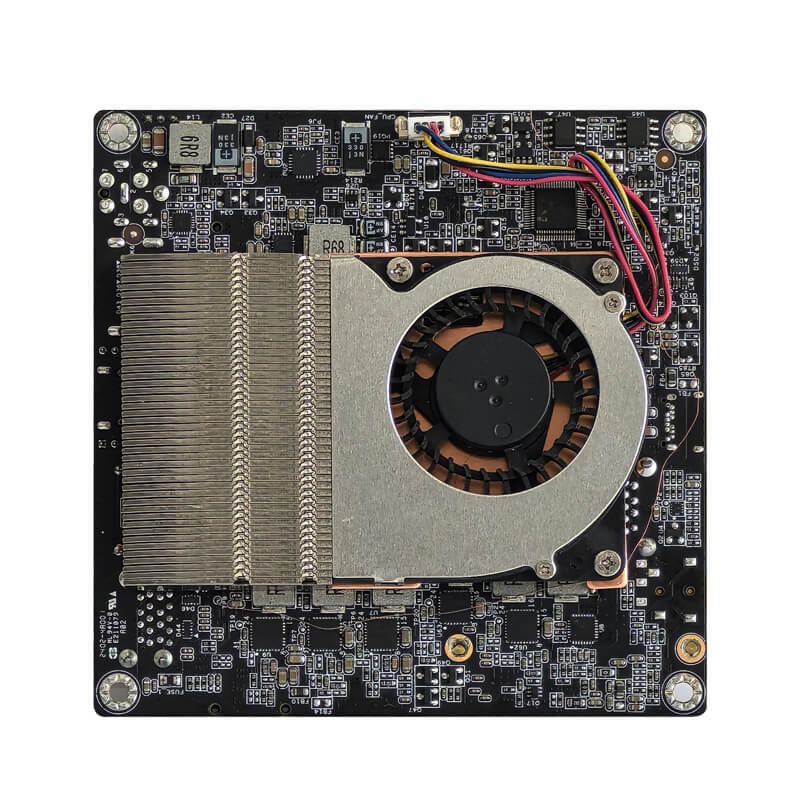

| 1*CPU_FAN pin | CPU fan pin, supports temperature control （4Pin，1*4Pin，1.25mm） | |
| Operating Environment | Working temperature: -10℃~60℃;
Working humidity: 5%~95% relative humidity, no condensation |
|
| BIOS | AMI BIOS，Support power-on, scheduled power-on, remote power on and off, and intelligent device identification | |
| Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) | |
| OS | Support Windows 10, Windows 11, LINUX, etc. | |
Core Advantages
Industrial Automation
Production Line Control, Equipment Monitoring, Data Acquisition
Machine Vision
AI Visual Inspection, Image Recognition and Analysis
Smart Commercial Displays
Digital Signage, Advertising Displays, Information Dissemination Terminals
Medical Imaging
Medical Imaging Terminals And Diagnostic Equipment
Smart Transportation
Traffic Signal Control And Road Network Monitoring
IoT Gateway
Data Aggregation And Edge Computing Nodes
