ELSKY NUC8U NUC10U Industrial Motherboard
SKU: ELSKY-NUC8U NUC10U
CPU
Supports Whiskey Lake 8th Gen Core i3, i5, i7; supports Comet Lake 10th Gen Core i3, i5, i7
Size
100mm (L) x 100mm (W) x 32mm (H)
Memory
2 x NB-DDR4, up to 64GB
Storage
1 x MSATA interface, 1 x SATA interface
Network
Intel WG i219V Gigabit Ethernet; supports Wake-on-LAN and PXE
Display
Mini-DP, HDMI; supports synchronous and asynchronous dual-display output
Power Supply
DC 12V (7A or higher recommended)
Interfaces

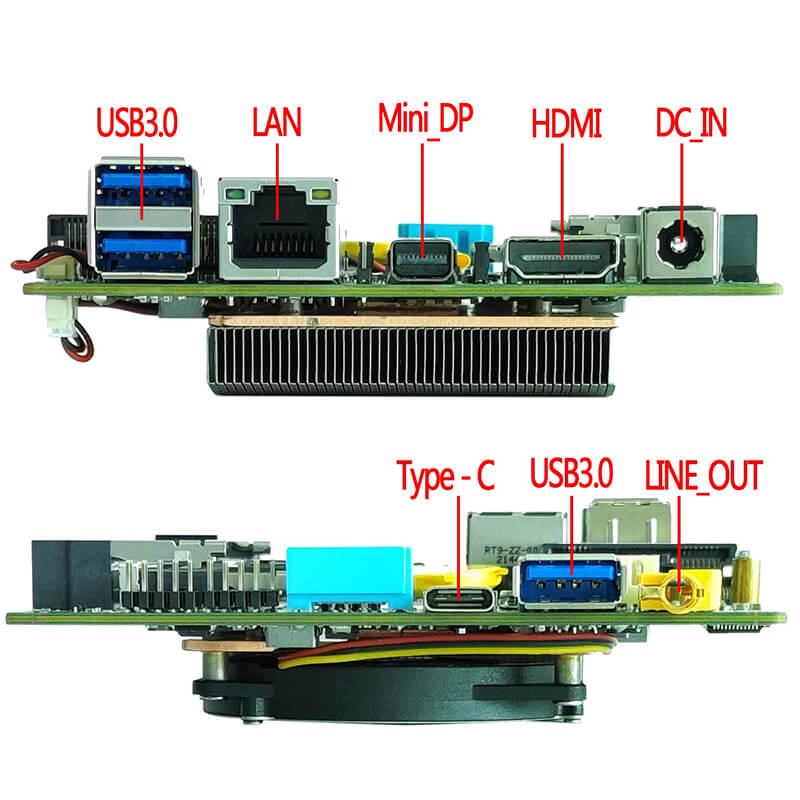

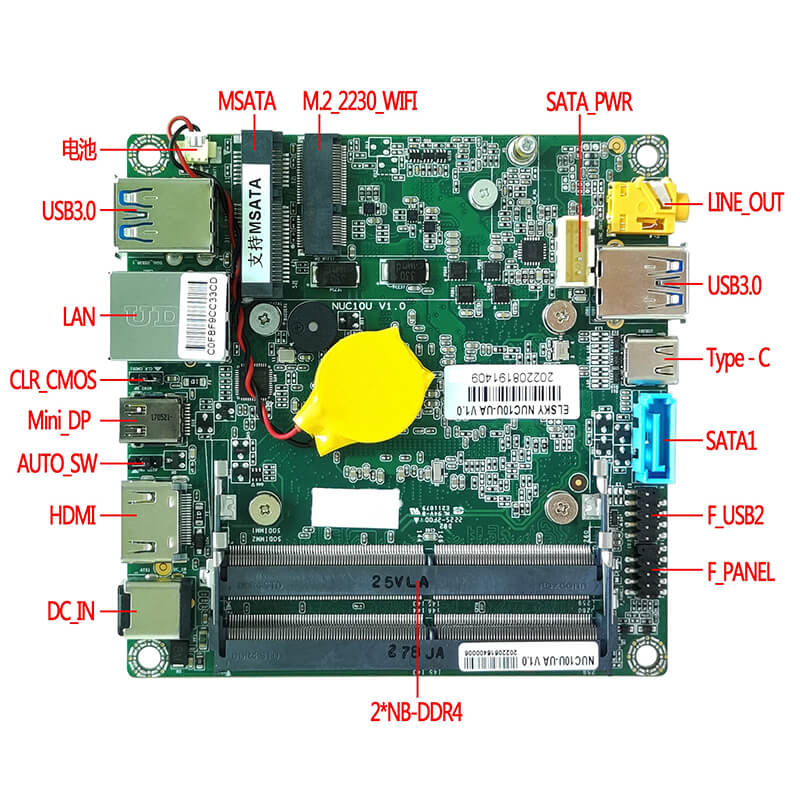

DC-in, HDMI, Mini-DP, Type-C, 3 x USB 3.2, LAN, Audio
| Motherboard Model | CPU | 4K | LAN | USB2.0 | USB3.2 | Type-C | Memory（MAX） | SSD | Power |
| NUC8U-UA | Support Whiskey Lake 8th gen Core i3,i5,i7 | 1*HDMI
4K 30Hz / 1*Mini-DP 4K 60Hz |
1 | 2 | 3 | 1 | 2*NB-DDR4
Max support 64G |
1*MSATA
1*SATA
|
+12V |
| NUC10U-UA | Support Comet Lake 10th gen Core i3,i5,i7 | 1 | 2 | 3 | 1 |
| Motherboard size | 100mm（L）*100mm（W）*32mm（H） | |
| CPU processor | NUC8U | Support 8th gen Comet Lake CPU：I3-8145U、I5-8365U、I7-8665U etc. |
| NUC10U | Support 10th gen Comet Lake CPU：I3-10110U、I5-10210U、I7-10510U etc. | |

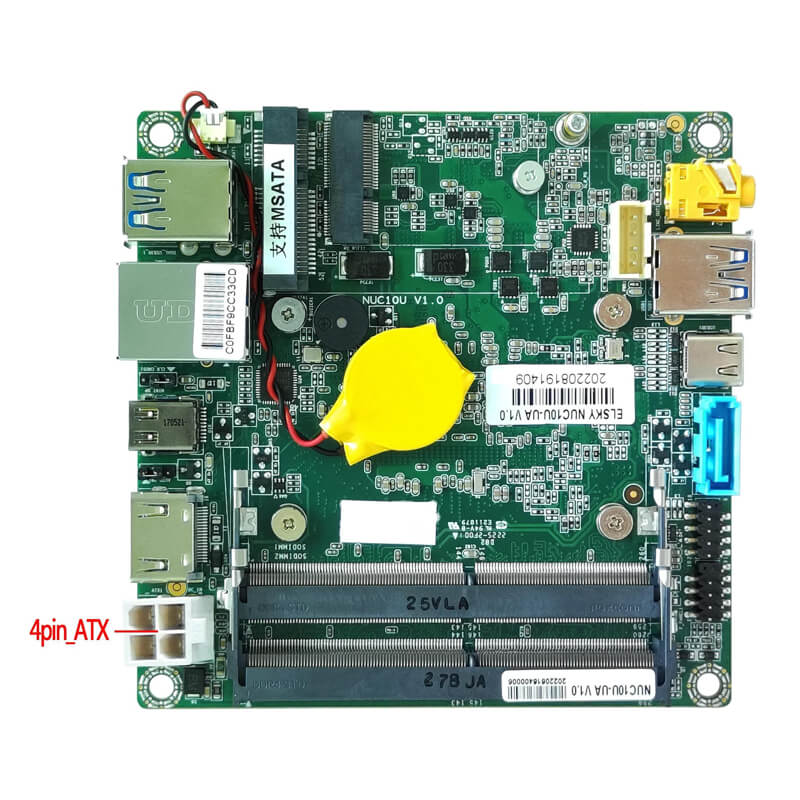

| Power supply | 1*DC_IN
(can change to 4Pin ATX) |
DC inner diameter of the DC head is 2.5MM and supports 12V
The power consumption of the motherboard is about 60W, it is recommended to use a power supply of 12V7A or above |
| RAM | 2*NB-DDR4 support 2133/2400/2666MHz memory，max support64G | |
| Display function | Integrated Intel UHD Graphics super core chip graphic card,Support single display, double display copy, double display extension, DOS single display | |
| 1*Mini-DP port | Support 4K resolution4096/3840*2160@60Hz | |
| 1*HDMI 1.4 port | Support 4K resolution4096/3840*2160@30Hz | |
| Network function | 1*LAN port | Intel WGi219V Gigabit network card，Support Network wake-up and PXE function |
| 1*M.2_2230 port | PCIE 3.0 signal,Support Key-E port M.2_2230 WIFI/BT（Bluetooth）etc. | |
| Hard disk function | 1*MSATA port | Standard SATA3.0 hard disk port，max transmission speed 6.0 Gbps |
| 1*SATA1 port | Standard SATA3.0 hard disk port，max transmission speed 6.0 Gbps | |
| 1*SATA_PWR pin | It is hard disk power supply pin and can take the 5V,12V electricity. （4Pin，1*4Pin，2.54mm） | |
| Sound function | Integrated Cmedia HS_100B USB Audio chip | |
| 1*LINE_OUT port | Support LINE_OUT output and MIC_IN input | |
| Motherboard HDMI port support HDMI Display audio output | ||
| Motherboard Mini-DP port support DP Display audio output | ||
| USB function | 3*USB3.2 port | Rear standard USB3.2 Gen1 port, The maximum transmission broadband band is 5 Gbps |
| 1*Type -C port | Standard Type-C 3.0 port，can connect USB device, display function is not supported | |
| 1*F_USB2 pin | Front USB2.0 pin，one group has 2*USB2.0 （9Pin，2*5Pin，2.0mm） | |
| Switch function | 1*F_PANEL pin | switch、power LED、 Hard disk LED、restart pin （9Pin，2*5Pin，2.0mm） |
| 1*AUTO_SW pin | hardware control power on pin （3Pin，1*3Pin，2.0mm） | |
| Other I/O | 1*CLR_CMOS pin | Motherboard zero clearing, discharge pin （3Pin，1*3Pin，2.0mm） |
| 1*CPU_FAN pin | CPU fan pin，support temperature control （4Pin，1*4Pin，1.25mm） | |
| Operating environment | working temperature ：-10℃~60℃；
Working humidity：5%~95% relative humidity， No condensation |
|
| BIOS | AMI BIOS，Support Power up，RTC，Intelligent identification of remote switching equipment | |
| Watch Dog | Watchdog programming，Support Hardware reset function（256level，0~255second） | |
| Operating system | Support Windows 10，Windows 11，Linux etc. | |
Core Advantages
Industrial Automation
Production Line Control, Equipment Monitoring, Data Acquisition
Machine Vision
AI Visual Inspection, Image Recognition and Analysis
Smart Commercial Displays
Digital Signage, Advertising Displays, Information Dissemination Terminals
Medical Imaging
Medical Imaging Terminals And Diagnostic Equipment
Smart Transportation
Traffic Signal Control And Road Network Monitoring
IoT Gateway
Data Aggregation And Edge Computing Nodes
