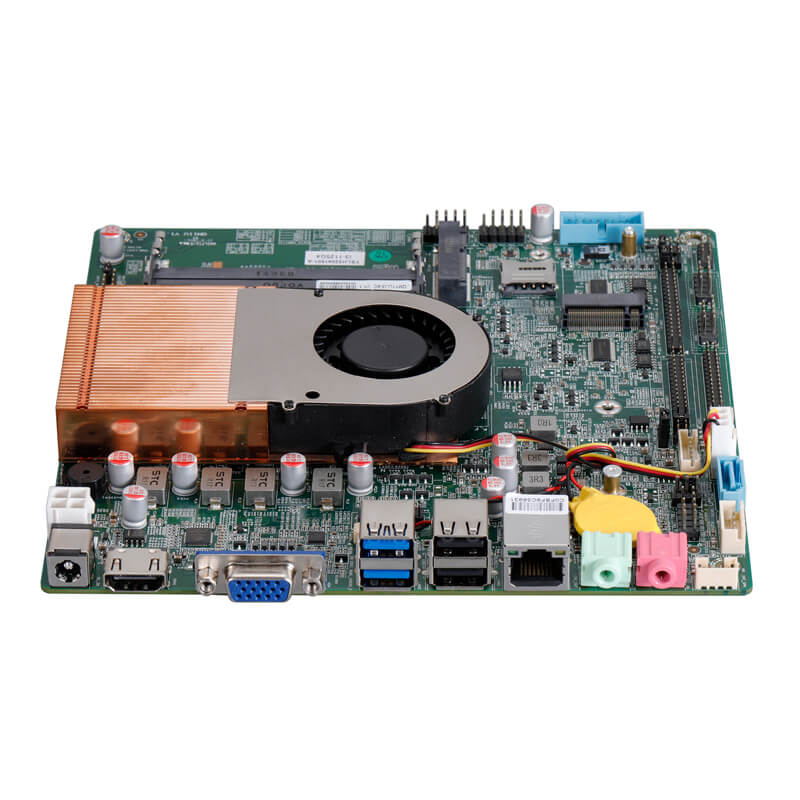

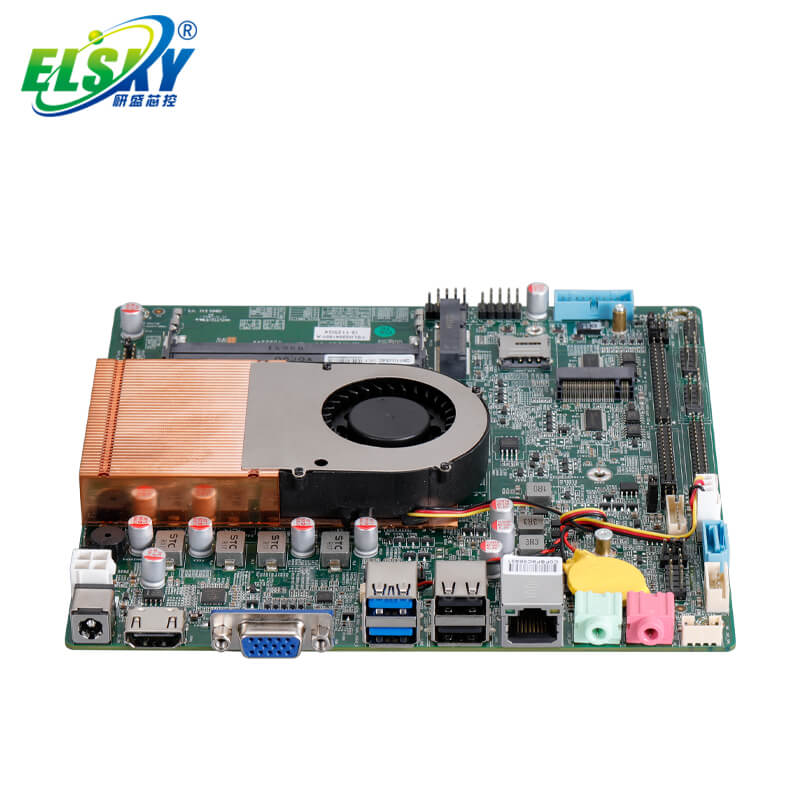

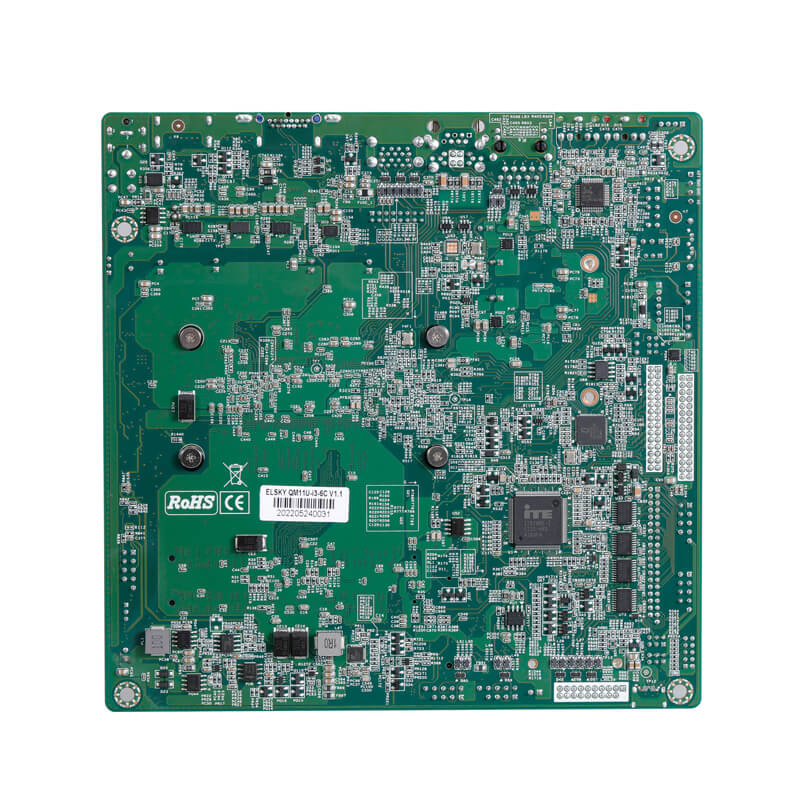

ELSKY QM11U Industrial Motherboard

Name: ELSKY QM11U Industrial Motherboard
Brand: SHENZHEN ELSKY TECHNOLOGY CO.,LTD

SKU: ELSKY-QM11U

CPU

Supports Intel Tiger Lake 11th Gen Core i3, i5, i7

Size

170mm (L) x 170mm (W) x 23mm (H)

Memory

2 x NB-DDR4, up to 64GB

Storage

1 x M.2 NVME/SATA, 1 x SATA 3.0 (or 2 x SATA 3.0), optional 1 x MSATA 3.0

Network

Default Intel i219V Gigabit Ethernet controller

Display

VGA (or DP), HDMI (1.4/2.0), LVDS (or single/dual EDP); supports synchronous/asynchronous triple and dual-display output

Power Supply

DC 12V/19V (7A or higher recommended)

Interfaces

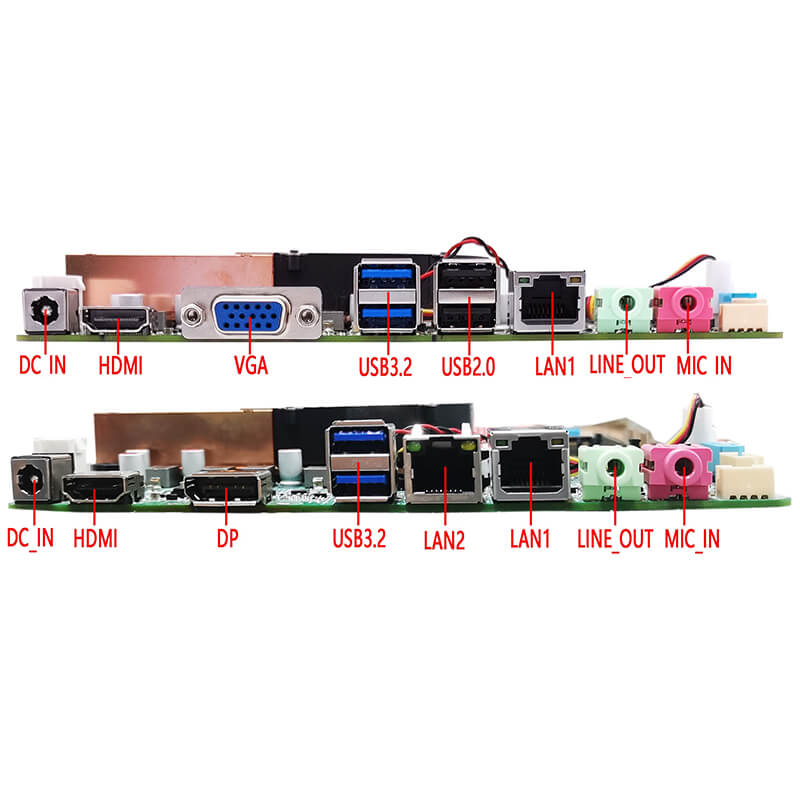

DC-in, HDMI, VGA (or DP), 2 x USB 3.2, 2 x USB 2.0, LAN, Line-Out, optional 1 x Type-C

Model	CPU	4K	Mini-PCIE	LAN	COM	USB2.0	USB3.2	Type-c （optional）	Memory	Power
QM11U-2C	Support Intel Tiger Lake 11th generation core i3,i5,i7	√	Default support for WIFI, can be changed to support 4G/Bluetooth or MSATA	1	2	6	4	1	2*NB-DDR4 MAX 64G	12/19V
QM11U-6C				1	6	6	4	1
QM11U-2L2C				2	2	4	4	1
QM11U-2L6C				2	6	4	4	1
QM11H as above; The Realtek sound card motherboard supports 10 * USB (4 * USB3.2, 6 * USB2.0); Can modify 9 * USB to support 4G/Bluetooth after modification; The USB sound card motherboard supports 9 * USB (3 * USB3.2, 6 * USB2.0); Can modify 8 * USB to support 4G/Bluetooth after modification;

Size	170mm(L)170mm(W)23mm(H)
CPU	QM11U	Supports 11th gen Tiger Lake core i3-1115G4,i5-1135G7,i7-1165G7,etc
CPU	QM11H	Supports 11th gen Tiger Lake core i5-11300H,i7-11370H,i7-11390H,etc
Memory	2*NB-DDR4 memory slot,support 2133/2400/2666/3200MHz memory，up to 64GB
Power supply	1*DC_IN	Supports 12V/19V voltage, with a DC head inner diameter of 2.5MM The full load power consumption of the motherboard is about 60W. It is recommended to use a power supply of 12V7A or 19V 6.3A or above
Power supply	1*ATX

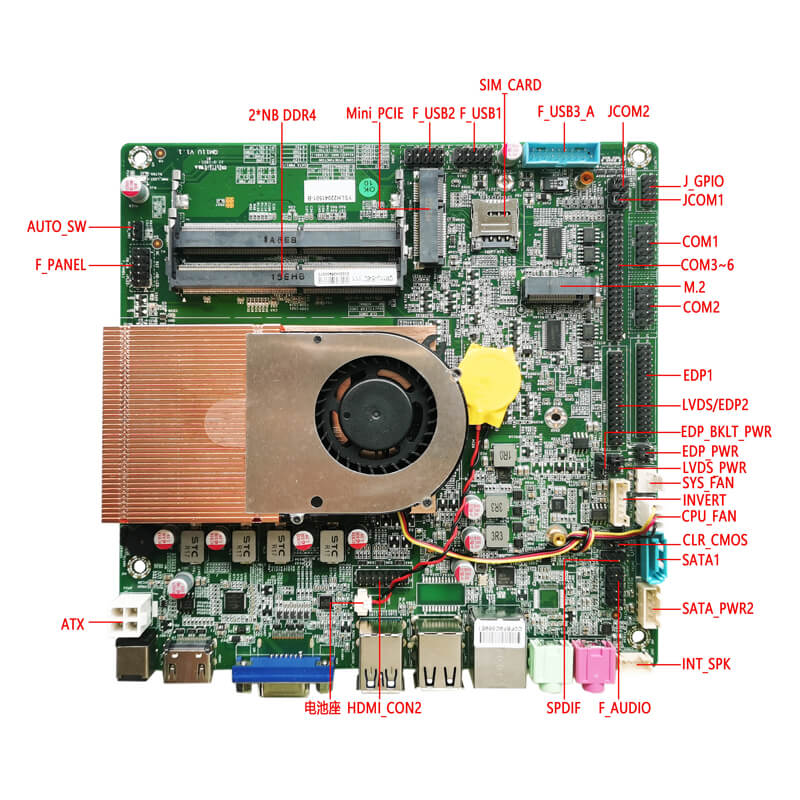

Display	Integrated Intel UHD Graphics/Intel Iris Xe Graphics Super Core Graphics Card Support single display, dual display/triple display/quad display replication, dual display/triple display/quad display expansion, dual display under SHELL
	1*VGA DB15 interface	Support resolution 1920*1080@60Hz
	1*DP interface（optional）	Support DP++,support 4K resolution 4096/3840*2160@60Hz
	Choose between VGA interface and DP interface
	1*HDMI 2.0 interface	Support 4K resolution 4096/3840*2160@60Hz
	1*HDMI_CON pin	Support 4K resolution 4096/38402160@60Hz （16Pin，28Pin，2.0mm）
	1*EDP1 pin	EDP-C screen cable, support 4K resolution 4096/38402160@60Hz （30Pin，215Pin，2.0mm）
	1*EDP_PWR pin	EDPvoltage control pin （6Pin，2*3Pin，2.0mm）
	1*LVDS/EDP2 pin	Support resolution 19201080@60Hz （30Pin，215Pin，2.0mm）
	1*LVDS_PWR pin	LVDS or EDP voltage control pin （6Pin，2*3Pin，2.0mm）
	1*INVERT pin	LVDS backlight switch backlight brightness adjustment control （6Pin，1*6Pin，2.0mm）
	1*BKLT-PWR1	LVDS backlight voltage control pin （3Pin，1*3Pin，2.54mm）
	Choose between LVDS pin and EDP 2 signal, share pin, EDP 2 does not support 4K, EDP 2 uses EDP B screen cable
Network	1/2*RJ45 LAN interface	Supports both single network and dual network options, and supports network wake-up and PXE diskless boot function; Single network: default Intel i219V Gigabit Ethernet card chip, Dual network: Intel i219V+Realtek 8111H Gigabit Ethernet card; Optional Intel i219V+Yutaiwei YT6801 Gigabit Ethernet card;
Network	1*MPCIE interface	PCIE3.0 signal, supports WIFI module, optional support for 4G/Bluetooth module
Hard disk	1*M.2 interface	PCIE3.0 signal, supports Key-M interface default M.2 2280 hard drive, optional M.2 2242 hard drive; Support automatic switching between NVME protocol and SATA protocol
	1*SATA1 interface	Standard SATA 3.0 hard drive interface, maximum transfer speed of 6.0 Gbps
	1*SATA_PWR2 pin	The hard drive power supply pin, can be powered with 5V or 12V （4Pin，1*4Pin，2.54mm）
Sound	Integrated Realtek ALC897 HD digital audio decoder, 6-channel high fidelity audio controller Can be modified to support HS-100B USB sound card chip
	1*LINE_OUT interface	Supports audio output (green)
	1*MIC_IN interface	Supports microphone input (red)
	1*INT_SPK pin	The amplifier supports dual channel output with 8 ohms and 5 watts speakers （4Pin，1*4Pin，2.0mm）
	1*F_AUDIO pin	Standard audio pins （9Pin，2*5Pin，2.54mm）
USB	2*USB3.2 interface	Rear standard USB 3.2 Gen1 interface, with a maximum transmission bandwidth of 5Gbps
	2*USB2.0 interface	Rear standard USB 2.0 interface, with a maximum transmission bandwidth of 480Mbps
	1*F_USB1 pin	Front USB 2.0 pins, one set with 2 * USB 2.0 （9Pin，2*5Pin，2.54mm）
	1*F_USB2 pin	Front USB 2.0 pins, one set with 2 * USB 2.0 （9Pin，2*5Pin，2.54mm）
	1*F_USB3_A pin	Front USB 3.2 pins, one set with 2 * USB 3.2 （19Pin，2*10Pin，2.0mm）
	1*Type_C interface(optional)	Standard Type_C interface
	The signal of Type_C interface is either paired with the F_USB3_A pin
Switch function	1*F_PANEL pin	Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.54mm）
Switch function	1*AUTO_SW pin	Hardware control power on plug （3Pin，1*3Pin，2.0mm）
Other I/O	COM1/COM2 pin	Serial port, all support RS232, RS422/RS485 optional （9Pin，2*5Pin，2.54mm）
	COM3~COM6 pin	Serial port, supports standard RS232 （39Pin，2*20Pin，2.0mm）
	1*JCOM1 pin	Control COM1 pin 9 voltage 0V/5V/12V optional （6Pin，2*3Pin，2.0mm）
	1*JCOM2 pin	Control COM2 pin 9 voltage 0V/5V/12V optional （6Pin，2*3Pin，2.0mm）
	1*SIM_CARD slot	Supports SIM card, SIM card is required when using 4G
	1*CPU_FAN pin	CPU fan pin, supports temperature control （3Pin，1*3Pin，2.54mm）
	1*SYS_FAN pin	System fan pin, full speed, does not support temperature control （3Pin，1*3Pin，2.54mm）
	1*CLR_CMOS pin	Motherboard discharge, reset pin （3Pin，1*3Pin，2.0mm）
	1*J_GPIO pin	GPIO control pin （10Pin，2*5Pin，2.0mm）
Operating environment	Working temperature: -10 ℃~60 ℃; Working humidity: 5%~95% relative humidity, no condensation
BIOS	AMI BIOS,support power on, timed power on, and intelligent recognition of remote power on/off devices
Watch Dog	Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds)
Operating system	Supports Windows 11, Windows 10, Linux, etc
