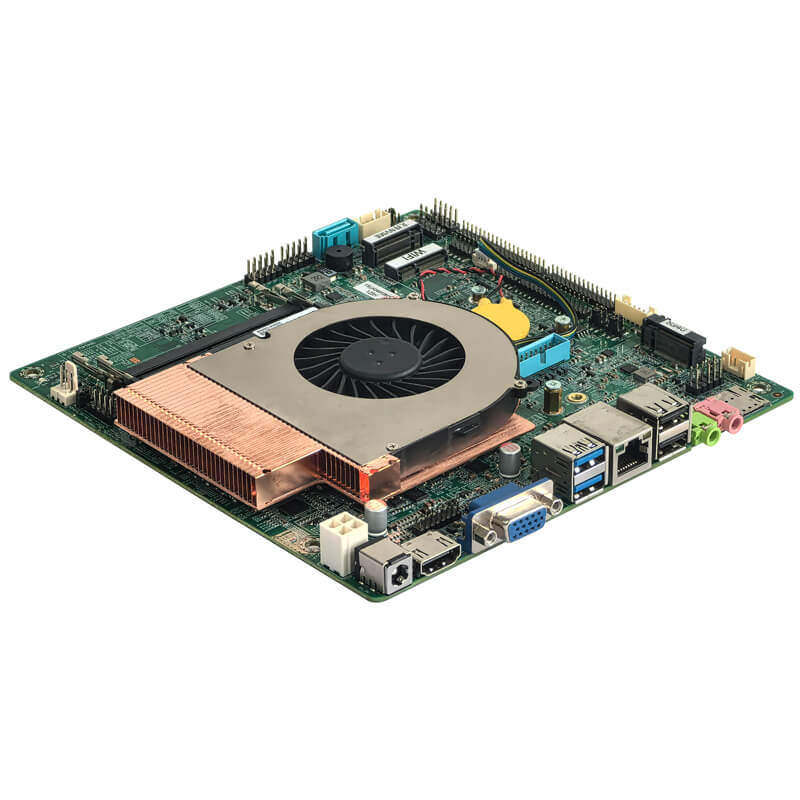

ELSKY QM12U QM13U Industrial Motherboard

Name: ELSKY QM12U QM13U Industrial Motherboard
Brand: SHENZHEN ELSKY TECHNOLOGY CO.,LTD

SKU: ELSKY-QM12U QM13U

CPU

Supports Intel Alder Lake 12th Gen U/P/H series (i3, i5, i7, i9)；Supports Intel Raptor Lake 13th Gen U/P/H series (i3, i5, i7, i9)

Size

170mm (L) x 170mm (W) x 21mm (H) (including fan thickness)

Memory

2 x NB-DDR4 slots, up to 64GB (Max)

Storage

1 x M.2 NVME/SATA, 1 x SATA 3.0

Network

Dual LAN: Intel I219V + Realtek 8111H

Display

VGA (or DP/HDMI 2.0), LVDS (or Single/Dual EDP); supports synchronous/asynchronous quad, triple, and dual display configurations

Power Supply

DC 12V/19V (recommended 7A or higher)

Interfaces

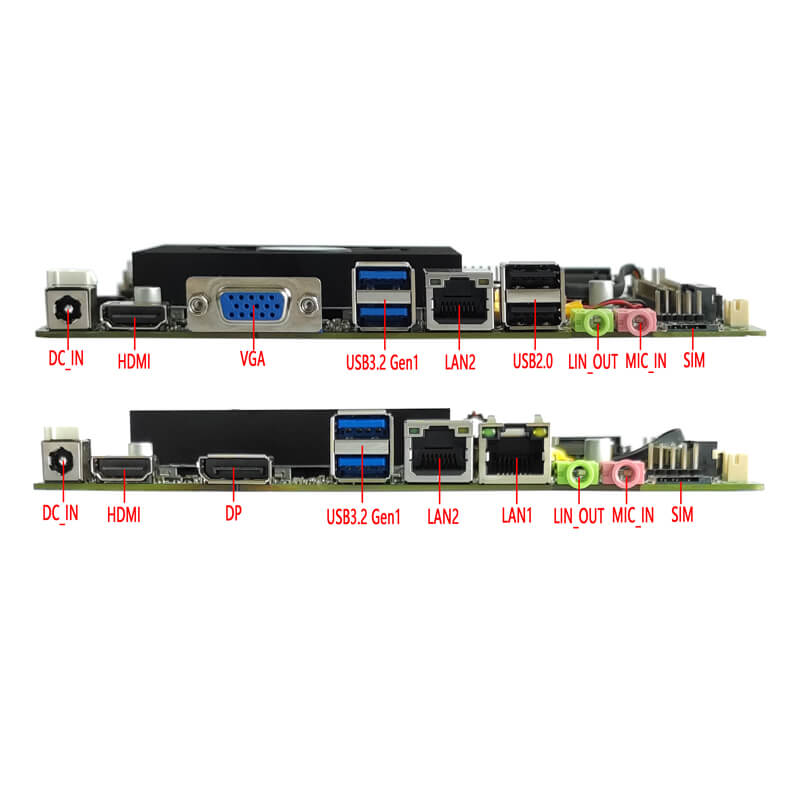

DC-in, HDMI, VGA (or DP), 2 x USB 3.2, 2 x USB 2.0, LAN, Line-Out, Mic-in

Model	CPU	4K	LAN	COM	USB2.0	USB3.2	SSD	Memory	Power
QM12	Supports Intel Alder Lake 12th generation U/P/H series i3, i5, i7, i9	support	1	2/6	6	2	1M.2 1SATA	2*NB-DDR4 MAX 64G	+12V/19V
			2	2/6	4	2
QM13	Supports Intel Raptor Lake 13th generation U/P/H series i3, i5, i7, i9		1	2/6	6	2
			2	2/6	4	2
	Supports Intel Raptor Lake 13th generation Core 3/Core 5/Core 7/Core 9

Size	170mm(L)170mm(W)21mm(H) (including fan thickness)

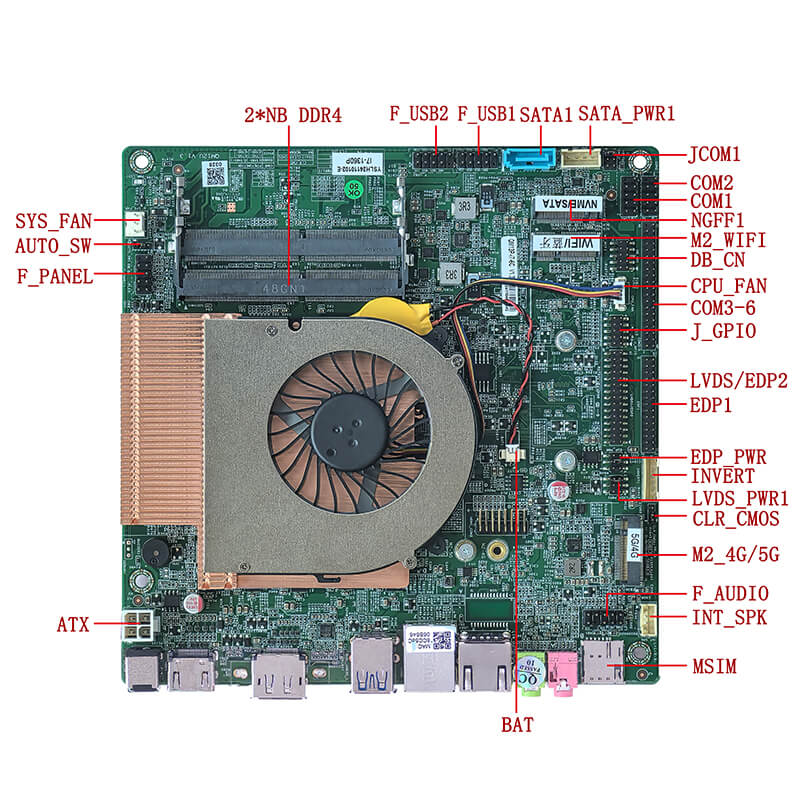

CPU	QM12U	Supports Intel Alder Lake 12th generation U/P/H series CPUs
	QM13U	Supports Intel Raptor Lake 13th generation U/P/H series CPUs
		Supports Intel Raptor Lake 13th generation Core 3, Core 5, Core 7, Core 9 series CPUs
Power supply	1*DC_IN	The inner diameter of the DC head is 2.5mm, supporting 12V/19V; The maximum turbo power consumption of the U series CPU is 55W. It is recommended to use a power supply of 12V 7A or 19V5A or above; The maximum turbo power consumption of the P series CPU is 64W. It is recommended to use a power supply of 12V 7A or 19V5A or higher; The maximum turbo power consumption of the H series CPU is 115W. It is recommended to use a power supply of 12V 10A or 19V 6.3A or above;
	1*DC_ATX（4Pin）
Memory	2*SODIMM slot	NB-DDR4 memory, supports 2133/2400/2666/2933/3200 memory, maximum support 64GB
Network function	1/2*RJ45_LAN interface	Single network: Supports Intel I219V Gigabit Ethernet card by default; Dual network: Supports Intel I219V+Realtek 8111H Gigabit Ethernet card; Support network wake-up and PXE function;
	1*M2_WIFI interface	Supports Key-E interface M.2 2230 PCIE3.0 x1&USB, WiFi Bluetooth module
	1*M2_4G/5G interface	Support Key-B interface M.2 5G (3052/3042) module or M.2 4G (3042) module
Display function	Intel UHD Graphics Ultra Core Graphics Card		Support single display, dual display/triple display/quad display replication, dual display/triple display/quad display expansion, dual display under SHELL;
	1*HDMI2.0 interface	Support 4K resolution 4096/3840*2160@60Hz
	1*HDMI_CON2 pin	Support 4K resolution 4096/38402160@30Hz （16Pin，28Pin，2.0mm）
	1*VGA DB15 interface	Support resolution 1920*1080@60Hz
	1*DP interface (optional)	Support DP++, 4K resolution 4096/3840*2160@60Hz
	VGA interface can be changed to support DP interface
	1*LVDS/EDP2 pin	LVDS1 supports 2K60Hz; EDP2 supports 4K60Hz （30Pin，2*15Pin，2.0mm）
	1*EDP1 pin	EPD-C screen cable；support 4K resolution 4096/38402160@60Hz （30Pin，215Pin，2.0mm）
	1*LVDS_PWR1 pin	LVDS1/EDP2 working voltage control pin （6Pin，2*3Pin，2.0mm）
	1*EDP_PWR pin	EDP1 working voltage control pin （6Pin，2*3Pin，2.0mm）
	1*INVERT pin	LVDS backlight control pin （6Pin，1*6Pin，2.0mm）
	Default support for LVDS, optional support for EDP2, shared pins; EDP-B screen cable
USB function	2*USB3.2 interface	Rear standard USB 3.2 Gen1 interface, with a maximum transmission bandwidth of 5Gbps
	2*USB2.0 interface	Rear standard USB 2.0 interface, with a maximum transmission bandwidth of 480Mbps
	1*F_USB1 pin	Front USB 2.0 pins, one set with 2 * USB 2.0 （9Pin，2*5Pin，2.54mm）
	1*F_USB2 pin	Front USB 2.0 pins, one set with 2 * USB 2.0 （9Pin，2*5Pin，2.54mm）
Sound function	Integrated Realtek ALC897 HD digital audio decoder, 6-channel high fidelity audio controller;
	1*LINE_OUT interface	Supports audio output (green)
	1*MIC_IN interface	Supports microphone input (red)
	1*INT_SPK pin	Supports 8-ohm and 5-watt speaker output (amplifier)（4Pin，1*4Pin，2.0mm）
	1*F_AUDIO pin	Standard audio pin （9Pin，2*5Pin，2.54mm）
Hard disk function	1*M.2-SATA/PCIE interface	Support Key-M interface M.2 2280 NVME PCIE4.0 x4/SATA adaptive standard SSD; Optional M.2 2242 hard drive;
	1*SATA1 interface	Standard SATA hard drive interface, supporting SATA 3.0
	1*SATA_PWR1 pin	Hard drive power supply pin, capable of supplying 5V and 12V power （4Pin，1*4Pin，2.54mm）
Switch function	1*F_PANEL pin	Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.54mm）
	1*AUTO_SW pin	Hardware control power on plug （3Pin，1*3Pin，2.0mm）
Other I/O	1*COM1 pin	Supports standard RS232/RS422/RS485 optional (BIOS settings) （9Pin，2*5Pin，2.54mm）
	1*COM2 pin	Only supports standard RS232 （9Pin，2*5Pin，2.54mm）
	1*COM3-6 pin	Only supports standard RS232 （39Pin，2*20Pin，2.0mm）
	1*JCOM1 pin	COM1 pin 9th is set to 0V/5V/12V （6Pin，2*3Pin，2.0mm）
	1*MSIM slot	Supports SIM card, SIM card is required when using 5G/4G
	1*CLR_CMOS pin	Motherboard reset and discharge pins （3Pin，1*3Pin，2.0mm）
	1*CPU_FAN pin	CPU fan pin, supports temperature control （4Pin，1*4Pin，1.25mm）
	1*SYS_FAN pin	System fan pin （3Pin，1*3Pin，2.54mm）
	1*J_GPIO pin	GPIO control pin （10Pin，2*5Pin，2.0mm）
Operating environment	Working temperature: -10℃~60℃； Working humidity: 5%~95% relative humidity, no condensation
BIOS	AMI BIOS,support power on, timed power on, and intelligent recognition of remote power on/off devices
Watch Dog	Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds)
Operating system	Supports Windows 11, Windows 10, Linux, etc
