ELSKY QM14U Industrial Motherboard

Name: ELSKY QM14U Industrial Motherboard
Brand: SHENZHEN ELSKY TECHNOLOGY CO.,LTD

SKU: ELSKY-QM14U

CPU

Supports Intel Meteor Lake (14th Gen) and Arrow Lake (15th Gen) Ultra 5, Ultra 7, and Ultra 9 (U/H series) processors

Size

170mm (L) x 170mm (W) x 21mm (H) (excluding fan thickness)

Memory

2 x NB-DDR5 slots, up to 96GB (Max)

Storage

1 x M.2 (NVME/SATA), 1 x SATA 3.0

Network

Supports Intel I219V + Realtek 8111H Gigabit Ethernet controllers

Display

VGA or DP, HDMI 2.0, LVDS (or single/dual EDP); supports synchronous/asynchronous quad, triple, and dual-display configurations

Power Supply

DC 12V/19V (7A or higher recommended)

Interfaces

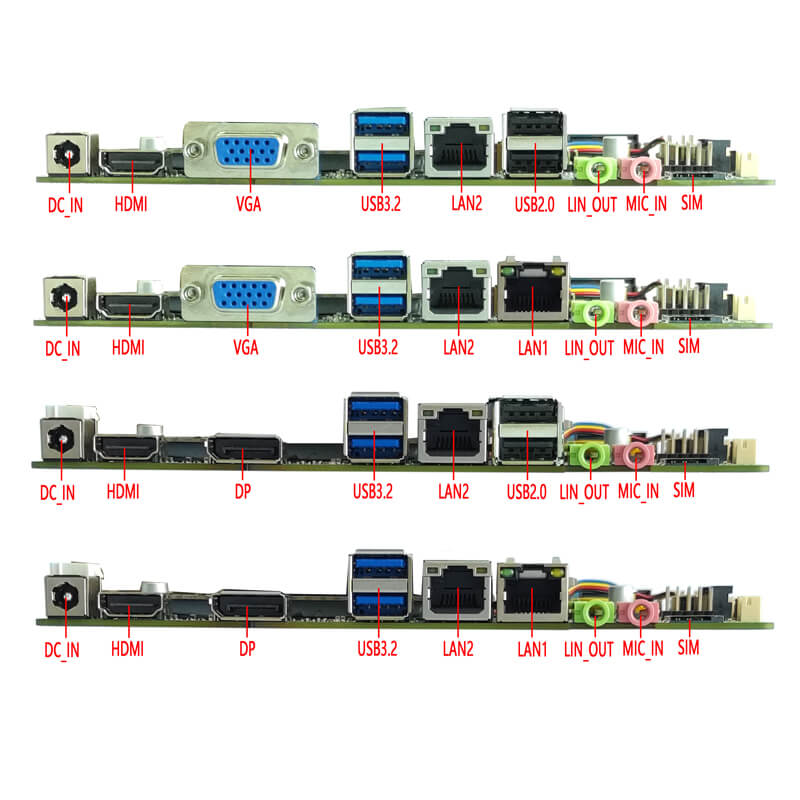

DC-in, HDMI, VGA or DP, 2 x USB 3.2, 2 x USB 2.0, LAN, Line-Out, Mic-in

Model

CPU

LAN

COM

USB2.0

USB3.2

SSD

Memory

Power

QM14U

QM14H

QM15U

QM15H

Support Intel

Meteor Lake 14th gen, Arrow Lake 15th gen Ultra 5 ,Ultra 7,Ultra 9 U/H series CPU

1*HDMI 4K60Hz

1*DP 4K60Hz

(optional)

2/6

1*M.2

1*SATA

2*NB-DDR5

MAX 96GB

+12V/19V

2/6

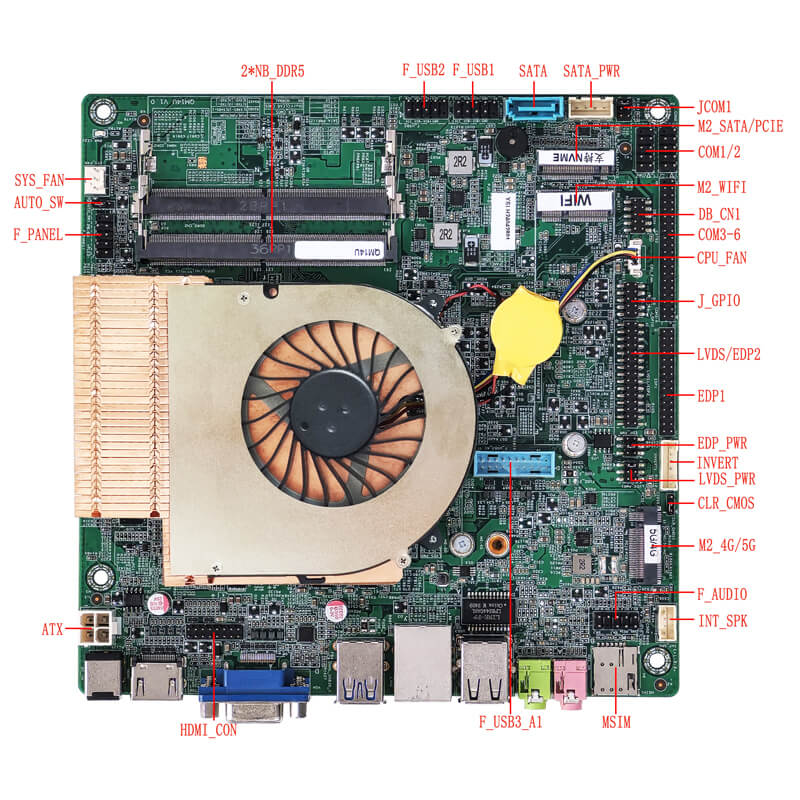

Size	170mm（L）170mm（W）25mm（H）
CPU	Support Intel Meteor Lake 14th gen Ultra 5,Ultra 7,Ultra 9 U/H series CPU Support Intel Arrow Lake 15th gen Ultra 5,Ultra 7,Ultra 9 U/H series CPU
Power supply	1*DC_IN	The inner diameter of the DC head is 2.5mm, supporting 12V/19V The maximum turbo power consumption of the U series CPU is 57W, and it is recommended to use a power supply of 12V 7A or 19V5A or above; The maximum turbo power consumption of the H series CPU is 115W. It is recommended to use a power supply of 12V 10A or 19V 6.3A or above;
Power supply	1*ATX1（4Pin）
Memory	2*SODIMM slot	NB-DDR5 memory，support 4800/5600MT/s memory ,max support 96GB
Network	1/2*RJ45_LAN interface	Single network: Supports Intel I219V Gigabit Ethernet card by default; Dual network: Supports Intel I219V+Realtek 8111H Gigabit Ethernet card; Optional support for Intel I219V+Yutaiwei YT6801 Gigabit Ethernet card; Support network wake-up and PXE function;
	1*M.2-WIFI interface	PCIE 4.0 signal,support Key-E interface M.2 2230 WiFi/Bluetooth module
	1*M.2-4G/5G interface	Support Key-B interface M.2 5G (3052/3042) module or M.2 4G (3042) module
Display	Integrated Intel Graphics/Intel Arc Graphics Ultra Core Graphics Card Support single display, dual display/triple display/quad display replication, dual display/triple display/quad display expansion, dual display under SHELL;
	1*HDMI2.0 interface	Support 4K resolution 4096/3840*2160@60Hz
	1*HDMI_CON pin	Support 4K resolution 4096/38402160@60Hz （16Pin，28Pin，2.0mm）
	1*VGA DB15 interface	Support resolution 1920*1080@60Hz
	1*DP interface(optional)	Support DP++，4K resolution 4096/3840*2160@60Hz
	VGA interface can be modified to support DP interface
	1*LVDS/EDP1 pin	LVDS support 2K60Hz；EDP1 support 4K60Hz （30Pin，2*15Pin，2.0mm）
	Default support for LVDS, optional support for EDP 1, shared pins, using EDP-B screen cable
	1*EDP2 pin	EDP-C screen cable, support 4K resolution 4096/38402160@60Hz （30Pin，215Pin，2.0mm）
	The motherboard EDP 2 cannot be displayed independently, and independent display may cause abnormalities. It needs to be used in conjunction with EDP 1 or LVDS；
	1*LVDS_PWR1 pin	LVDS/EDP1 working voltage control pin （6Pin，2*3Pin，2.0mm）
	1*EDP_PWR pin	EDP2 working voltage control pin （6Pin，2*3Pin，2.0mm）
	1*INVERT pin	LVDS backlight control pin （6Pin，1*6Pin，2.0mm）
USB	2*USB3.2 interface	Rear standard USB 3.2 Gen1 interface, with a maximum transmission bandwidth of 5Gbps
	2*USB2.0 interface	Rear standard USB 2.0 interface, with a maximum transmission bandwidth of 480Mbps
	1*F_USB3_A pin	Front USB 3.2 pins, one set with 2 * USB 3.2 （19Pin，2*10Pin，2.0mm）
	1*F_USB1 pin	Front USB 2.0 pins, one set with 2 * USB 2.0 （9Pin，2*5Pin，2.54mm）
	1*F_USB2 pin	Front USB 2.0 pins, one set with 2 * USB 2.0 （9Pin，2*5Pin，2.54mm）
Sound	Integrated Realtek ALC897 HD digital audio decoder, 6-channel high fidelity audio controller;
	1*LINE_OUT interface	Supports audio output (green)
	1*MIC_IN interface	Supports microphone input (red)
	1*INT_SPK pin	Supports 8-ohm and 5-watt speaker output (amplifier) （4Pin，1*4Pin，2.0mm）
	1*F_AUDIO pin	Standard audio pin （9Pin，2*5Pin，2.54mm）
Hard disk	1*NGFF interface	Supports PCIE 4.0 signal, Key-M interface M.2 2280 hard drive, default support for NVME and SATA protocols
	1*SATA1 interface	Standard SATA hard drive interface, support SATA 3.0
	1*SATA_PWR pin	Hard drive power supply pin, capable of supplying 5V and 12V power （4Pin，1*4Pin，2.54mm）
Switch	1*F_PANEL pin	Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.54mm）
Switch	1*AUTO_SW pin	Hardware control power on plug （ 3Pin，1*3Pin，2.0mm）
Other I/O	1*COM1 pin	Supports standard RS232/RS422/RS485 optional (BIOS settings) （9Pin，2*5Pin，2.54mm）
	1*COM2 pin	Only support standard RS232 （9Pin，2*5Pin，2.54mm）
	1*COM3~6 pin	Only support standard RS232 （39Pin，2*20Pin，2.0mm）
	1*JCOM1 pin	COM1 pin 9 is set to 0V/5V/12V （6Pin，2*3Pin，2.0mm）
	1*MSIM slot	Supports SIM card, SIM card is required when using 5G/4G
	1*CLR_CMOS pin	Motherboard reset and discharge pins （3Pin，1*3Pin，2.0mm）
	1*CPU_FAN pin	CPU fan pin, supports temperature control （4Pin，1*4Pin，1.25mm）
	1*SYS_FAN pin	System fan pin, full speed, does not support temperature control （3Pin，1*3Pin，2.54mm）
	1*J_GPIO pin	GPIO control pin （10Pin，2*5Pin，2.0mm）
Operating environment	Working temperature: -10 ℃~60 ℃; Working humidity: 5%~95% relative humidity, no condensation
BIOS	AMI BIOS，Supports power on, timed power on, and intelligent recognition of remote power on/off devices
Watch Dog	Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds)
Operating system	Supports Windows 11,Windows 10,Linux,etc
