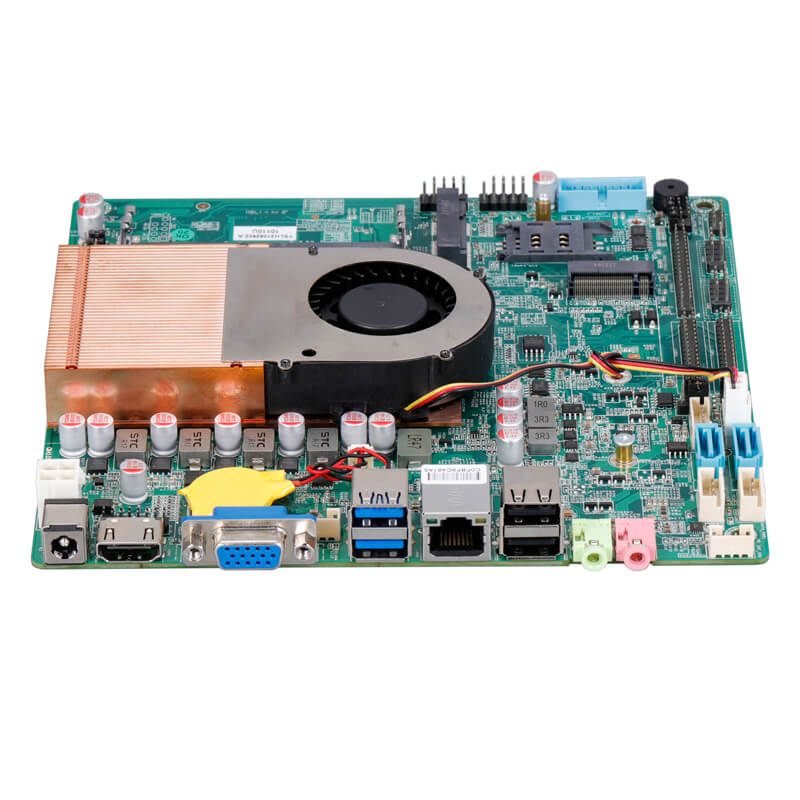

ELSKY QM8U QM10U Industrial Motherboard
SKU: ELSKY-QM8U QM10U
CPU
Supports Whiskey Lake 8th Gen Core i3/i5/i7 and Comet Lake 10th Gen Core i3/i5/i7
Size
170mm (L) x 170mm (W) x 23mm (H)
Memory
2 x NB-DDR4, up to 64GB
Storage
1 x M.2 NVME/SATA, 1 x SATA 3.0 (or 2 x SATA 3.0), optional 1 x MSATA 3.0
Network
Default: Realtek 8111H Gigabit LAN; Optional: Motorcomm YT6801 Gigabit LAN
Display
VGA (or DP), HDMI (1.4/2.0), LVDS (or Single/Dual EDP); supports synchronous/asynchronous triple and dual-display output
Power Supply
DC 12V/19V (7A or higher recommended)
Interfaces
DC-in, HDMI, VGA (or DP), 2 x USB 3.2, 2 x USB 2.0, LAN, Line-Out; optional 1 x Type-C
| Model | CPU | 4K | LAN | COM | USB2.0 | USB3.2 | Memory | Power |
| QM8U-2C | Support Whiskey Lake 8 Gen core i3,i5,i7 | support | 1 | 2 | 6 | 4 | 2*NB DDR4
MAX 64GB |
Support +12V/19V |
| QM8U-6C | 6 | |||||||
| QM8U-2L2C | 2 | 2 | 6 | 4 | ||||
| QM8U-2L6C | 6 | |||||||
| Support DP port motherboard model,QM8U-DP specification same as above | ||||||||
| QM10U-2C | Support Comet Lake 10 Gen core i3,i5,i7 | support | 1 | 2 | 6 | 4 | 2*NB DDR4
MAX 64GB |
|
| QM10U-6C | 6 | |||||||
| QM10U-2L2C | 2 | 2 | 6 | 4 | ||||
| QM10U-2L6C | 6 | |||||||
| Support DP port motherboard model,QM10U-DP specification same as above | ||||||||

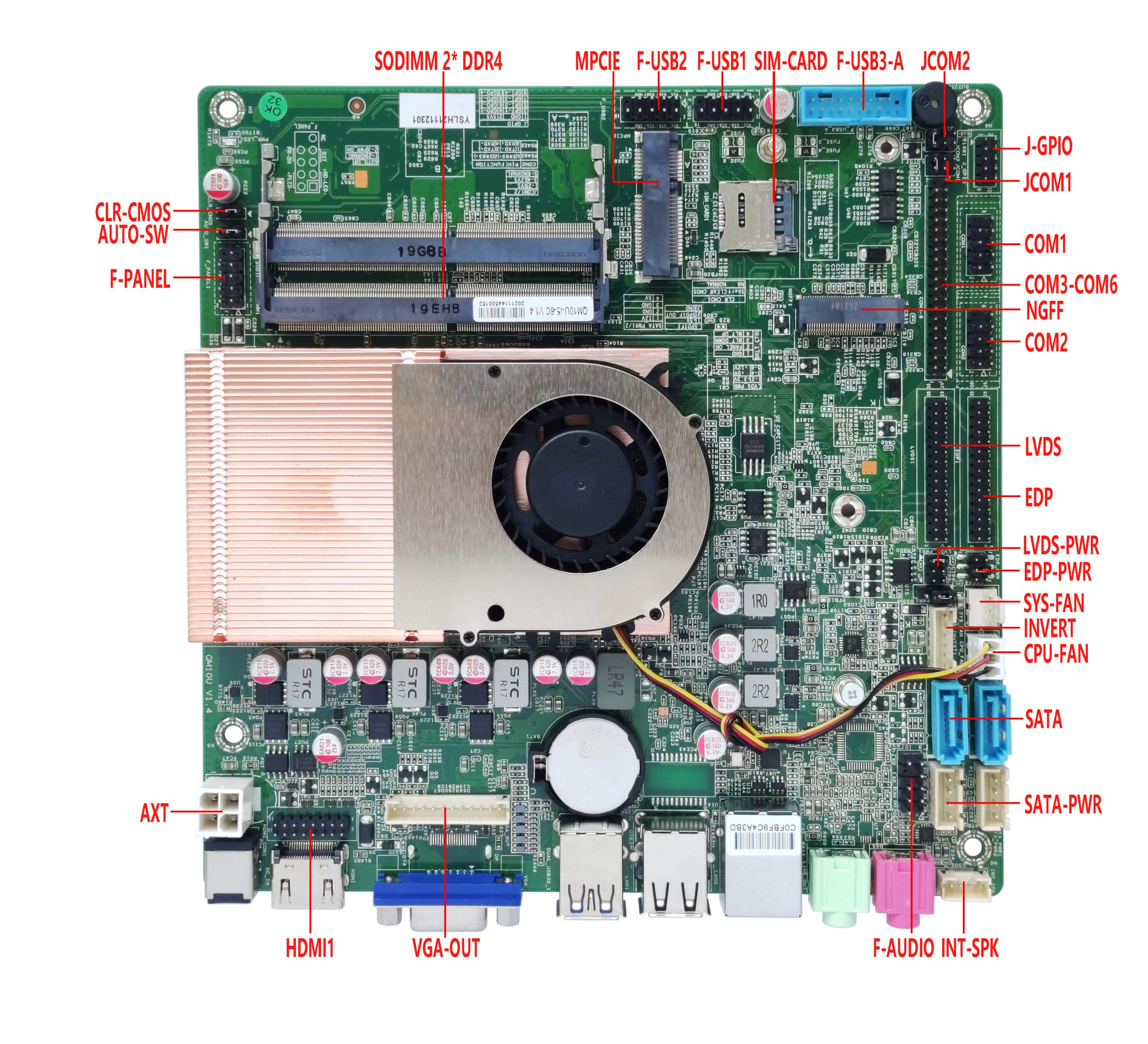

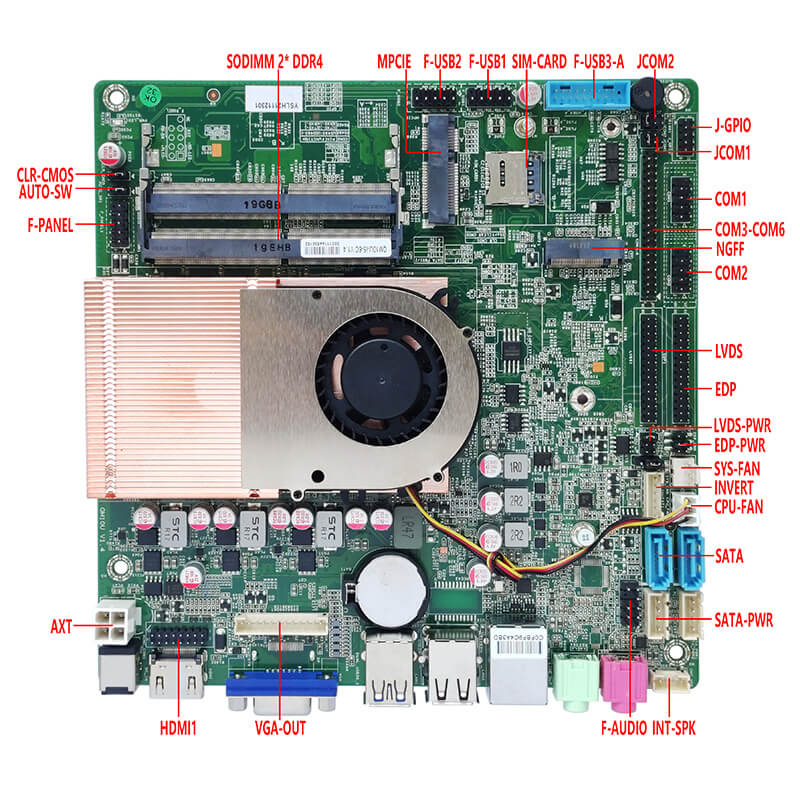

| Motherboard size | 170mm*170mm*18mm | |
| CPU | Support 8th gen Whiskey Lake CPU：Celeron 4305U,I3-8145U,I5-8265U,I7-8665U etc. | |
| Support 10th gen Comet Lake CPU：I3-10110U,I5-10210U,I7-10510U etc. | ||
| Memory | QM8U | 2*NB-DDR4 memory slot，support 2133/2400MHz memory，max support 64GB |
| QM10U | 2*NB-DDR4 memory slot，support 2133/2400/2666MHz memory，max support 64GB | |
| Power supply | 1*DC_IN | Support 12V power，DC head diameter 2.5MM
Motherboard full consumption power is about 60W.Suggest use 12V7A or 19V4A above power |
| 1*ATX1 | ||
| Display function | Integrated Intel UHD Graphics super core graphics controller，Support single display, double display/three display copy, double display/three display extension, DOS single display | |
| 1*VGA_OUT pin | Support resolution 1920*1080@60HZ （12Pin，1*12Pin，2.0mm） | |

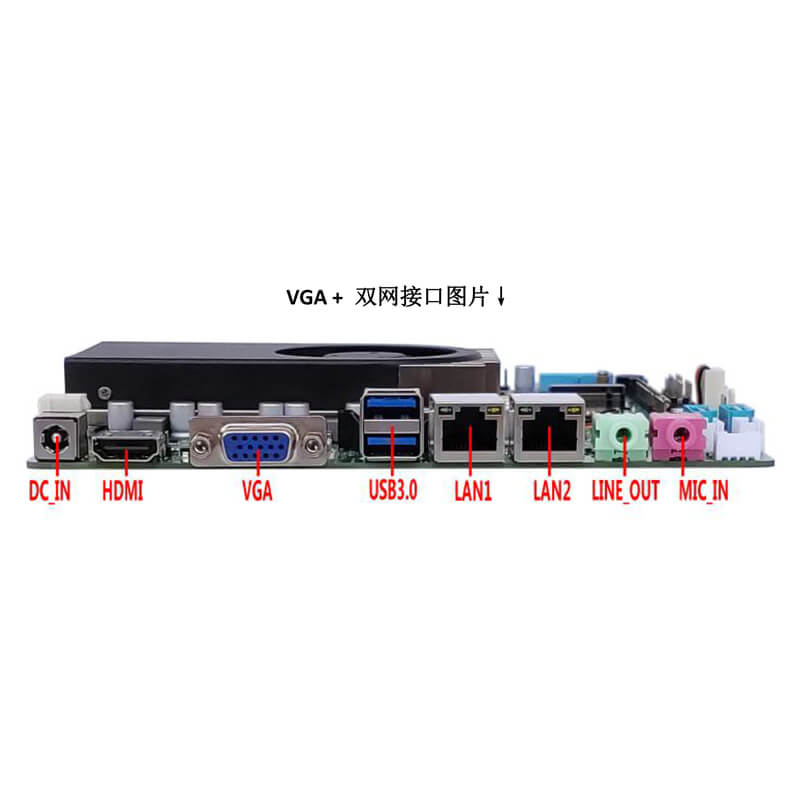

| 1*VGA DB15 port | Support resolution 1920*1080@60HZ | |

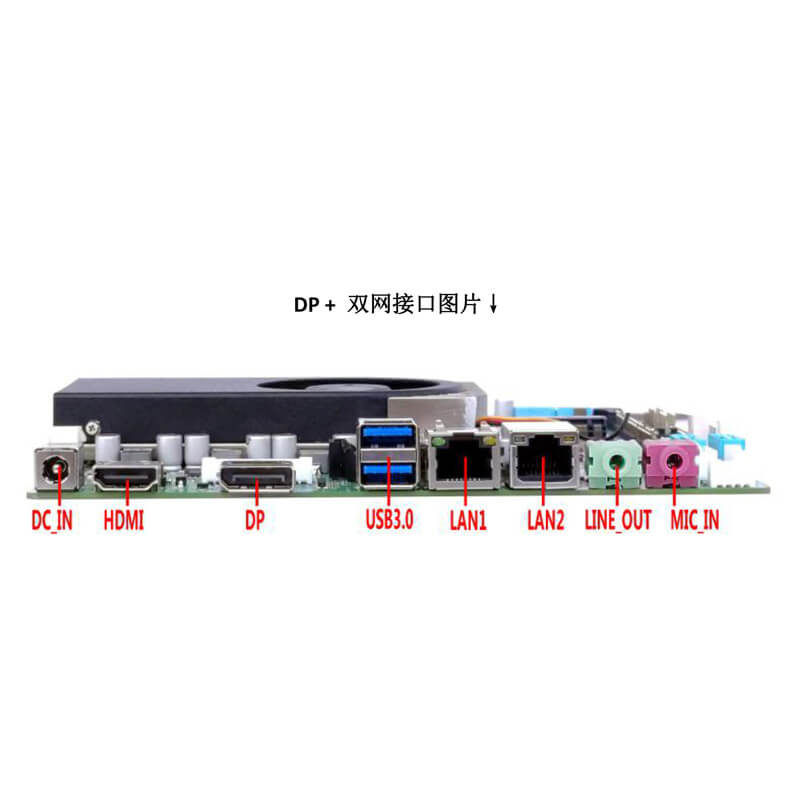

| 1*DP 1.4 port(optional) | Support DP++,support 4K resolution 4096/3840*2160@60HZ | |
| VGA interface and DP interface are either option | ||
| 1*HDMI 1.4 port | Support 4K resolution 4096/3840*2160@30HZ | |
| 1*HDMI_CON pin | Support 4K resolution 4096/3840*2160@30HZ （16Pin，2*8Pin，2.0mm） | |
| 1*EDP 1 pin | EDP-C screen cable Support 4K resolution 4096/3840*2160@60H
（30Pin，2*15Pin，2.0mm） |
|
| 1*EDP_PWR pin | EDP working voltage control Pin （6Pin，2*3Pin，2.0mm） | |
| 1*LVDS pin | Support resolution 1920*1080@60HZ （30Pin，2*15Pin，2.0mm） | |
| 1*LVDS_PWR pin | LVDS working voltage control pin （6Pin，2*3Pin，2.0mm） | |
| 1*INVERT pin | LVDS Backlight switch backlight brightness control （6Pin，1*6Pin，2.0mm） | |
| 1*BKLT-PWR1 | LVDS backlight voltage control pin | |
| LVDS pin and EDP pin are either option | ||
| Ethernet function | 1/2*LAN port | Single network: by default support for Realtek 8111H gigabit network card; Optional support for Yutawei YT6801 Gigabit network card;
Dual network: support Realtek 8111H + Realtek 8111H Gigabit network card;Optional support for Yutai YT6801 + Yutai YT6801 Gigabit network card;， Support Network wake-up and PXE No disk startup function |
| 1*Mini-PCIE port | PCIE3.0 signal,Support WIFI/3G/4G/GPS/bluetooth module，can choose support MSATA | |
| Hard disk function | 1*M.2 port | By default support M.2 2280，can choose 2242；By default NVME（PCIE） Agreement, can change support SATA Agreement |
| 1*SATA1 port | Standard SATA3.0 hard disk port，Maximum transmission speed 6.0 Gbps | |
| SATA1signal and MSATA signal are either option ,by default support SATA1 | ||
| 1*SATA2 port | Standard SATA3.0 hard disk port，Maximum transmission speed 6.0 Gbps | |
| 1*SATA_PWR1 pin | Hard disk power supply pin and can take the 5V,12V electricity.
（4Pin，1*4Pin，2.54mm） |
|
| 1*SATA_PWR2 pin | Hard disk power supply pin and can take the 5V,12V electricity.
（4Pin，1*4Pin，2.54mm） |
|
| Audio Function | Integrated Realtek ALC897 HD Digital audio decoder， 6-channel high fidelity audio controller,Can change to support the BBH621 USB sound card | |
| 1*LINE_OUT port | Support Audio output（green） | |
| 1*MIC_IN port | Support Microphone input（red） | |
| 1*INT_SPK pin | power amplifier Support 8Om5W Speaker output
（4Pin，1*4Pin，2.0mm） |
|
| 1*F_AUDIO pin | Standard Audio Pin （9Pin，2*5Pin，2.54mm） | |
| 1*SPDIF pin | Digital audio pin pin (3Pin, 1*3Pin , 2.54mm) | |
| USB Function | 2*USB3.2 port | Rear standard USB3.2 Gen1 port，Maximum transmission speed 10.0Gbps |
| 2*USB2.0 port | Rear standard USB2.0 port，Maximum transmission speed 480Mbps（60MB/s） | |
| 1*F_USB1 pin | Front USB2.0 pin，one group have 2*USB2.0
（9Pin，2*5Pin，2.54mm） |
|
| 1*F_USB2 pin | Front USB2.0 pin，one group have 2*USB2.0
（9Pin，2*5Pin，2.54mm） |
|
| The USB signal of F_USB2 foot 2 / 4 / 6 / 8 / 10 interfaces with Mini-PCIE, and the default F_USB2 foot 2 / 4 / 6 / 8 / 10 has a signal | ||
| 1*F_USB3 pin | Front USB2.0 pin，one group have 2*USB3.2 （19Pin，2*10Pin，2.0mm） | |
| F_USB3 pin and USB3 (USB2.0) interface two choose one, motherboard dual network F_USB3 pin has USB signal | ||
| 1*F_USB3_A pin | Front USB3.2 Gen1 pin，one group have 2*USB3.2
（19Pin，2*10Pin，2.0mm） |
|
| F_USB3_A pin 11,12 feet and USB sound card have two USB signals, with default F_USB3_A pin signal | ||
| Switch Function | 1*F_PANEL pin | switch、power LED、 Hard disk LED、restart pin
（9Pin，2*5Pin，2.54mm） |
| 1*AUTO_SW pin | hardware control power on pin
（3Pin，1*3Pin，2.0mm） |
|
| Other I/O | COM1/COM2 pin | Serial port，COM1 support RS232，RS422/RS485 optional
（9Pin，2*5Pin，2.54mm） |
| COM3~COM6 pin | Serial port，support standard RS232；
（39Pin，2*20Pin，2.0mm） |
|
| 1*JCOM1 pin | Control COM1 9th voltage 0V/5V/12V optional
（6Pin，2*3Pin，2.0mm） |
|
| 1*JCOM2 pin | Control COM2 9th voltage 0V/5V/12V optional
（6Pin，2*3Pin，2.0mm） |
|
| 1*SIM_CARD card slot | Support SIM card，when use 3G/4G need SIM card | |
| 1*FAN2 pin | CPU fan pin，support temperature control
（3Pin，1*3Pin，2.54mm） |
|
| 1*FAN3 pin | System fan pin,full speed,not support temperature control
（3Pin，1*3Pin，2.54mm） |
|
| 1*CLR_CMOS pin | CLR_CMOS Motherboard zero clearing, discharge pin
（3Pin，1*3Pin，2.0mm） |
|
| 1*J_GPIO pin | GPIO control pin （10Pin，2*5Pin，2.0mm） | |
| Working environment | working temperature ：-20℃~60℃；
Working humidity：5%~95% relative humidity， No condensation |
|
| BIOS | AMI BIOS，Support Power up，RTC，Intelligent identification of remote switching equipment | |
| Watch Dog | Watchdog programming，Support Hardware reset function（256level，0~255second） | |
| Operating system | Support Windows 11,windows 10 ,Linux etc. | |
| Motherboard size | 170mm*170mm*18mm | |
| CPU | Support 8th gen Whiskey Lake CPU：Celeron 4305U,I3-8145U,I5-8265U,I7-8665U etc. | |
