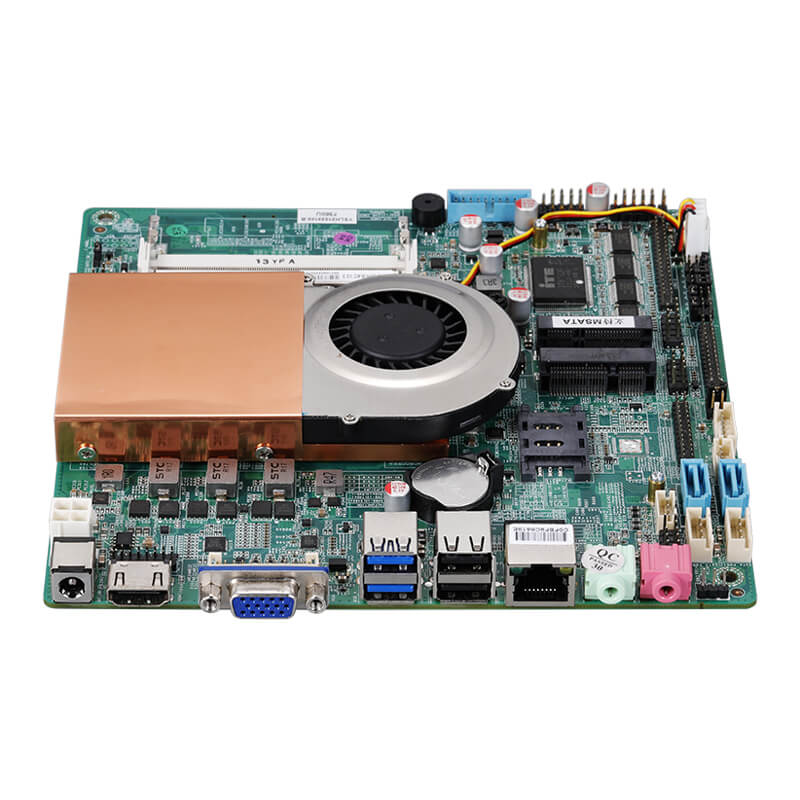

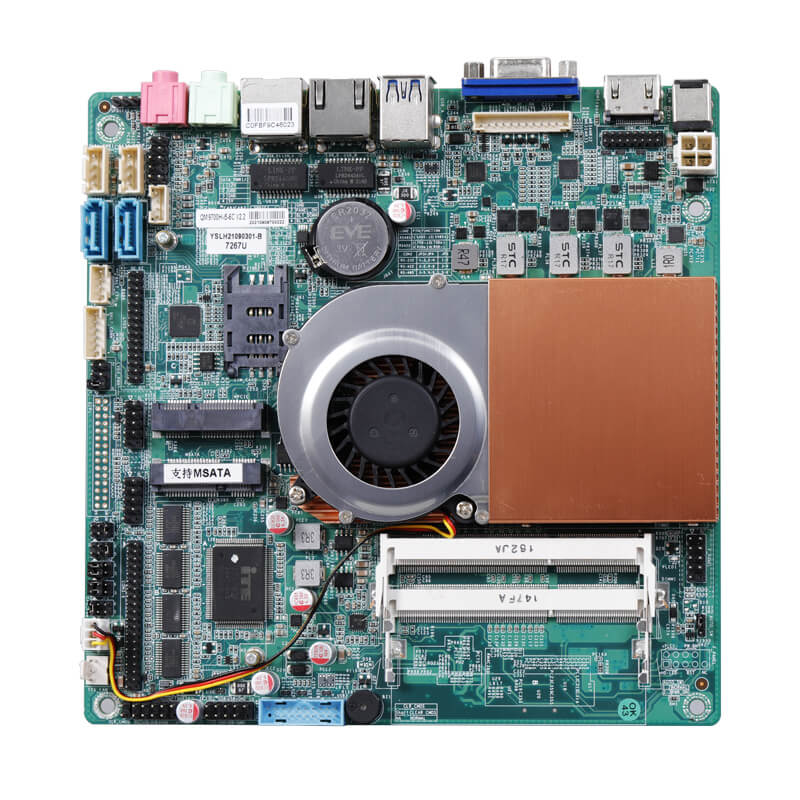

ELSKY QM9700 Industrial Motherboard
SKU: ELSKY-QM9700
CPU
Skylake (6th Gen) i3/i5/i7; Kaby Lake (7th Gen) i3/i5/i7
Size
170mm (L) x 170mm (W) x 22mm (H)
Memory
2 x DDR3, up to 16GB (Max)
Storage
1 x MSATA interface, 2 x SATA 3.0 interfaces
Network
Realtek 8111F Gigabit Ethernet controller; supports Wake-on-LAN and PXE diskless boot
Display
VGA (or DP/HDMI), LVDS (or single/dual EDP); supports synchronous/asynchronous triple-display and dual-display output
Power Supply
DC 12V/19V (5A or higher recommended)
Interface
1 x Mini-PCIE; supports Wi-Fi, 4G, Bluetooth, and GPS
| Motherboard model | CPU | 4K | LAN | COM | USB | Memory | SSD | Power |
| QM9600-2C | Skylake 6th gen | support | 1 | 2 | 10 | 2*NB DDR3
Max 16GB |
1*MSATA
2*SATA |
+12V/19V |
| QM9600-2L2C | 2 | 2 | 8 | |||||
| QM9600-6C | 1 | 6 | 10 | |||||
| QM9600-2L6C | 2 | 6 | 8 | |||||
| QM9700-2C | Kabylake 7th gen | support | 1 | 2 | 10 | |||
| QM9700-2L2C | 2 | 2 | 8 | |||||
| QM9700-6C | 1 | 6 | 10 | |||||
| QM9700-2L6C | 2 | 6 | 8 |
| Motherboard size | 170mm（L）*170mm（W）*22mm（H） | ||
| CPU | QM9600 supports 6th generation CPUs: 3855U, 3955U, I3-6100U, I5-6200U, I7-6500U, etc | ||
| QM9700 supports 7th generation CPUs: 3865U, 3965U, I3-7100U, I5-7200U, I7-7500U, etc | |||
| Chipset | Skylake, Kabylake high-speed chipset | ||
| Memory | 2*DDR3 SODIMM memory slot, supports 1600MHz memory, low voltage 1.35V, maximum support 16GB | ||
| Power supply | 1*DC_IN | Supports 12V/19V voltage, with a DC head inner diameter of 2.5MM
The motherboard has a full load power consumption of approximately 40W. It is recommended to use a 12V5A or higher power supply |
|
| 1*DC_ATX | |||
| Display functions | QM9600 | Integrated Intel HD 510/520 graphics controller | Support single display, dual display/triple display replication, dual display/triple display expansion, single display under DOS |
| QM9700 | Integrated Intel HD 610/620 graphics controller | ||
| 1*VGA DB15 interface | Support resolution 1920*1080@60HZ | ||
| 1*VGA_OUT pin | Support resolution 1920*1080@60HZ （12Pin，1*12Pin，2.0mm） | ||
| 1*HDMI 1.4 interface | Support 4K resolution 4096/3840*2160@30HZ | ||
| 1*HDMI_CON pin | Support 4K resolution 4096/3840*2160@30HZ （16Pin，2*8Pin，2.0mm） | ||
| 1*LVDS/EDP pin | Support resolution 1920*1080@60HZ (30Pin，2*15Pin，2.0mm） | ||
| LVDS and EDP are optional and share the same set of pins. EDP supports 4K resolution | |||
| 1*LVDS_PWR pin | LVDS/EDP voltage control pin (6Pin, 2 * 3Pin, 2.54mm) | ||
| 1*BKLT_CONN pin | LVDS/EDP backlight switch control pin (6Pin, 1 * 6Pin, 2.0mm) | ||
| 1*BKLT_CTR | LVDS backlight brightness adjustment pin (4Pin, 1 * 4Pin, 2.0mm) | ||
| Hardware backlight brightness adjustment only applies to LVDS | |||
| Network Features | 1/2*LAN interface | RTL8111H Gigabit Ethernet card chip, supports network wake-up and PXE diskless boot function | |
| 1*MINI_PCIE interface | Supports WIFI/3G/4G/GPS/Bluetooth modules, etc | ||
| Hard disk function | 1*MSATA interface | Support MSATA disk, support MSATA3.0 | |
| 1*SATA1 interface | Standard SATA 3.0 hard drive interface, maximum transfer speed of 6.0 Gbps | ||
| 1*SATA2 interface | Standard SATA 3.0 hard drive interface, maximum transfer speed of 6.0 Gbps | ||
| 1*SATA_PWR1 pin | The hard drive power supply pin can be powered with 5V or 12V.
（4Pin，1*4Pin，2.54mm） |
||
| 1*SATA_PWR2 pin | The hard drive power supply pin can be powered with 5V or 12V.
（4Pin，1*4Pin，2.54mm） |
||
| Sound Features | Integrated Realtek ALC662 HD digital audio decoder, 6-channel high fidelity audio controller | ||
| 1*LIN_OUT interface | Support audio output (green) | ||
| 1*MIC_IN interface | Support microphone input (pink) | ||
| 1*INT_SPK pin | The amplifier supports dual channel output with 8 ohms and 5 watts speakers （4Pin，1*4Pin，2.0mm） | ||
| 1*F_AUDIO pin | Standard audio pin （9Pin，2*5Pin，2.54mm） | ||
| 1*SPDIF_OUT pin | Digital audio pin （3Pin，1*3Pin，2.54mm） | ||

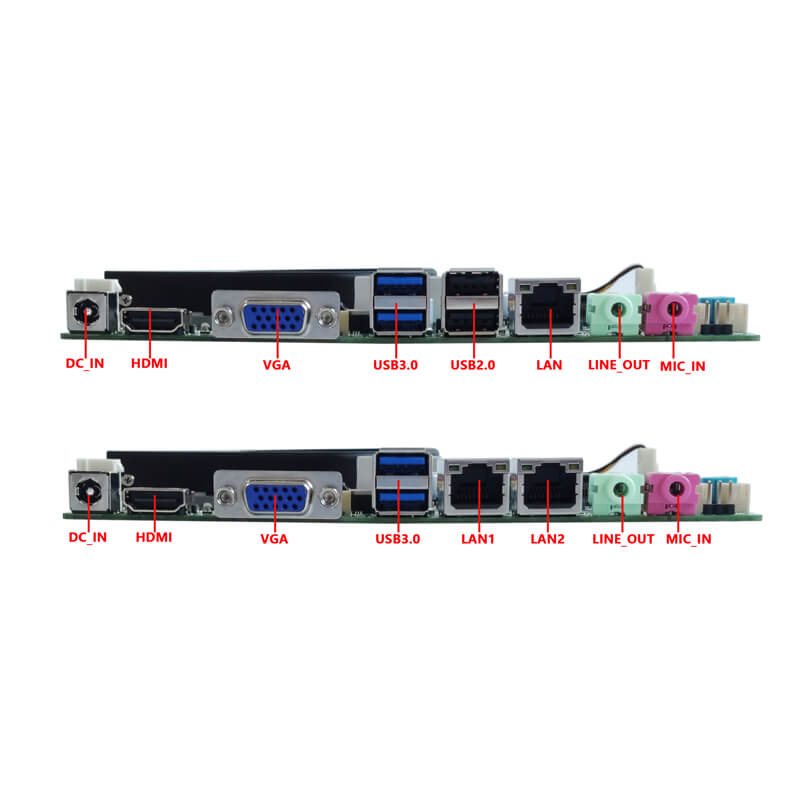

| USB Function | 2*USB3.0 interface | Rear standard USB3.0 interface | |
| 2*USB2.0 interface | Rear standard USB2.0 interface | ||
| 1*F_USB1 pin | Front USB2.0 pin, one set has 2*USB2.0 （9Pin，2*5Pin，2.54mm） | ||
| 1*F_USB2 pin | Front USB2.0 pin, one set has 2*USB2.0 （9Pin，2*5Pin，2.54mm） | ||
| 1*F_USB3_A pin | Front USB3.0 pin, one set has 2*USB3.0 (19Pin，2*10Pin，2.0mm） | ||

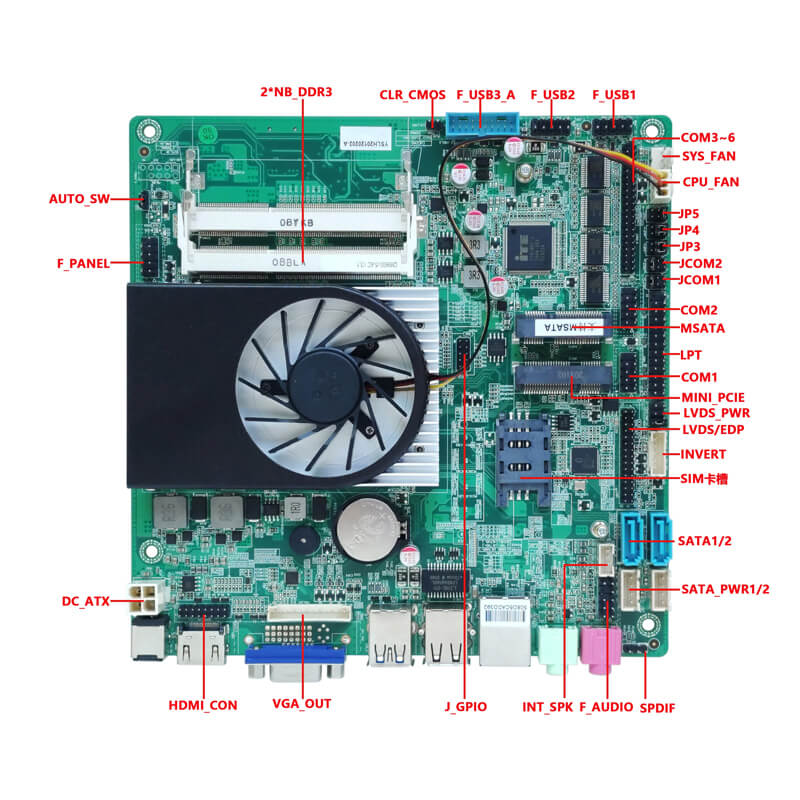

| Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.54mm） | |
| 1*AUTO_SW pin | Hardware control power on plug (3Pin, 1 * 3Pin, 2.0mm) | ||
| Other I/O | COM1/COM2 pin | Serial port, COM2 supports RS232/RS422/RS485 optional (9Pin, 2 * 5Pin, 2.54mm) | |
| COM3~COM6 pin | Serial port, support standsrd RS232 (39Pin，2*20Pin，2.0mm） | ||
| 1*LPT pin | Parallel port, supports LPT printers (25Pin, 2 * 13Pin, 2.54mm) | ||
| 1*JCOM1 pin | Control the 9th pin voltage of COM1 to 0V/5V/12V, optional (6Pin, 2 * 3Pin, 2.0mm) | ||
| 1*JCOM2 pin | Control the 9th pin voltage of COM2 to 0V/5V/12V, optional (6Pin, 2 * 3Pin, 2.0mm) | ||
| 1*SIM_CARD slot | Supports SIM card, SIM card is required when using 3G/4G | ||
| 1*CLR_CMOS pin | Motherboard reset and discharge pins (2PIn, 1 * 2Pin, 2.54mm) | ||
| 1*SYS_FAN pin | System fan pin, full speed, does not support temperature control
(3Pin, 1 * 3Pin, 2.54mm) |
||
| 1*CPU_FAN pin | CPU fan pin, supports temperature control (3Pin, 1 * 3Pin, 2.54mm) | ||
| Operating Environment | Working temperature: -20℃~60℃;
Working humidity: 5%~95% relative humidity, no condensation |
||
| BIOS | AMI BIOS, Support power on, timed power on, and intelligent recognition of remote power on/off devices | ||
| Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) | ||
| Operating system | Support Windows 10, Windows 8, Windows 7, Linux,etc. | ||
