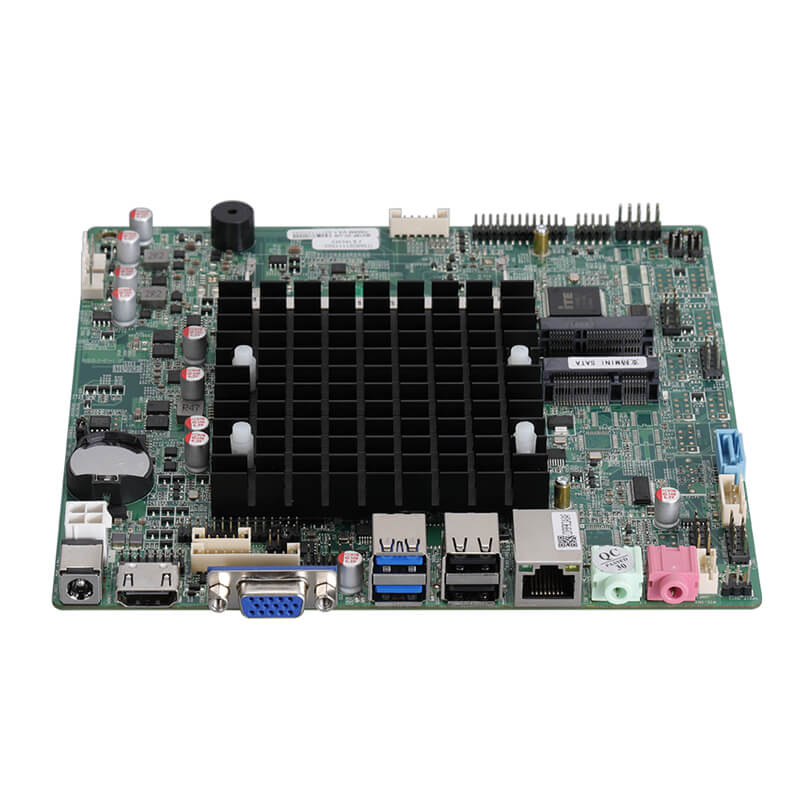

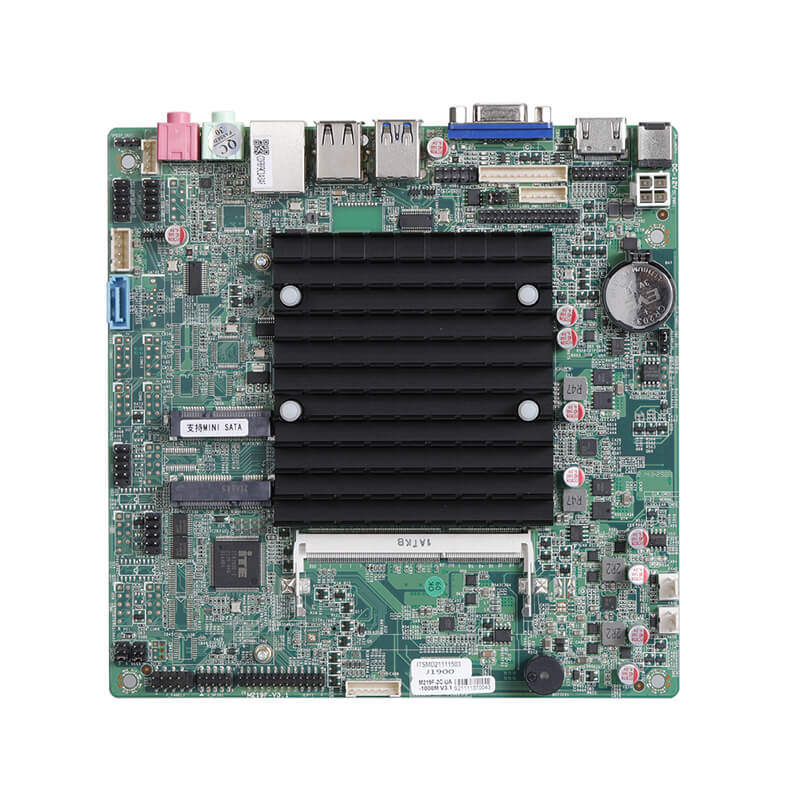

ELSKY M218F M219F M229F Industrial Motherboard

Name: ELSKY M218F M219F M229F Industrial Motherboard
Brand: SHENZHEN ELSKY TECHNOLOGY CO.,LTD

SKU: ELSKY-M218F M219F M229F

CPU

Intel® Bay Trail J-series (J1800, J1900, J2900)

Size

170mm (L) x 170mm (W) x 21mm (H)

Memory

1 x NB-DDR3 (Max 8GB)

Storage

1 x MSATA interface, 1 x SATA1 interface

Network

Gigabit: Single-port 8111H; 100 Mbps: Single-port 8106E

Display

VGA or DP, HDMI, LVDS (or EDP); supports synchronous/asynchronous dual-display

Power Supply

DC 12V (recommended 5A or higher)

Interfaces

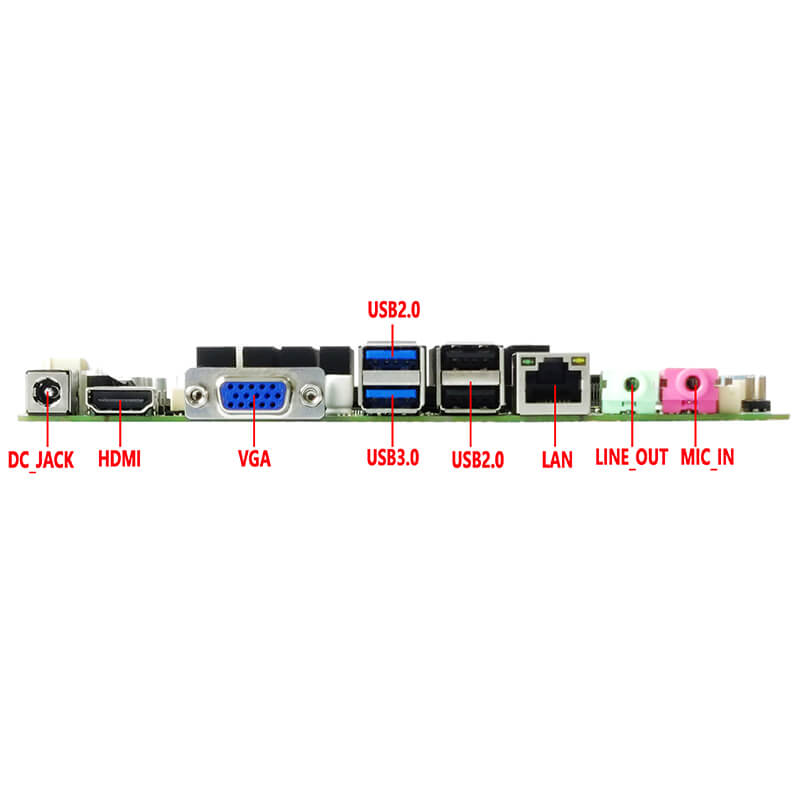

DC-in, HDMI, VGA (or DP), 2 x USB 3.0, 2 x USB 2.0, 2 x LAN, Line-Out, Mic-in

Main board model	CPU	LAN	COM	USB2.0	USB3.0	SSD	Memory	Power
M219F-2C	Celeron J1800 Celeron J1900 Pentium J2900 optional	1	2	9	1	1MSATA 1SATA 2.0	1*NB-DDR3 8G（MAX）	+12V
M219F-6C		1	6	9	1
M219F-10C		1	10	9	1
M219F-2L2C		2	2	7	1
M219F-2L6C		2	6	7	1
M219F-2L10C		2	10	7	1
M218F/M229F The specification is the same as above

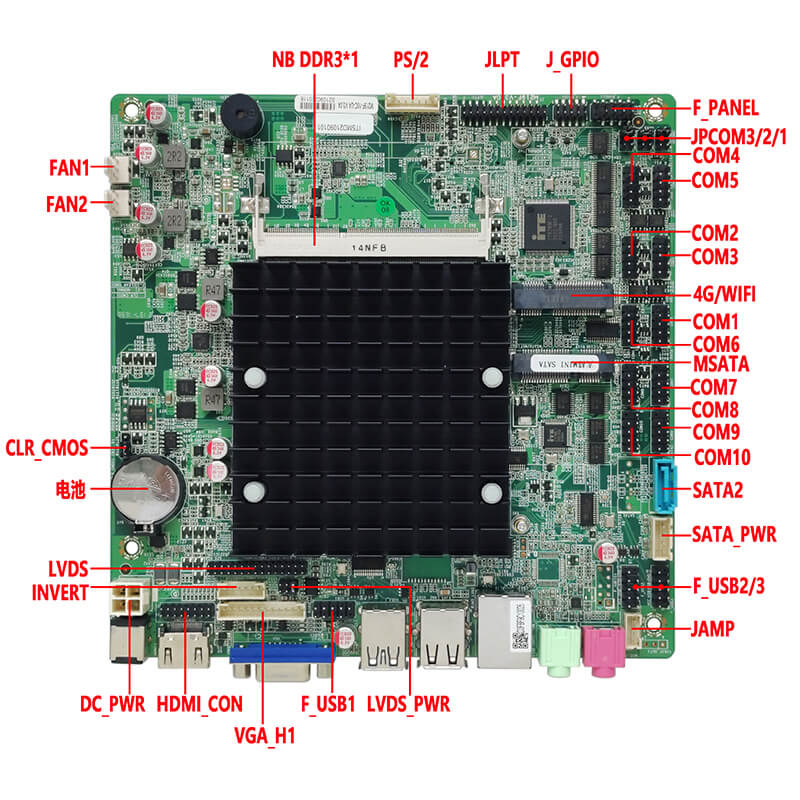

Main board size	170mm（L）170mm（W）21mm（H）
CPU processor	Intel ® processor Celeron J1800, Celeron J1900, Pentium J2900
Chipset	Intel Bay trail SOC chip set
Memory support	1*NB-DDR3 SODIMM Memory slot, support 1333 / 1600 MHz memory, low voltage 1.35V, maximum support of 8GB
Power supply	1*DC_JACK	Support 12V voltage, the DC head inner diameter is 2.5MM The motherboard full load power consumption is about 30W.12V4A or above is recommended
Power supply	1*DC_PWR
Display function	Intel HD Graphics Graphic controller, support single display, double display replication, double display extension, single display under DOS
	1*VGA DB15 interface	Support has a resolution of 1920 * 1080@60Hz
	1*VGA_OUT pin	Support has a resolution of 1920 * 1080@60Hz（12Pin，1*12Pin，2.0mm）
	1*HDMI 1.4 interface	Support has a resolution of 1920 * 1080@60Hz
	1*HDMI_CON pin	Support has a resolution of 1920 * 1080@60Hz（16Pin，2*8Pin，2.0mm）
	1*LVDS pin	Support has a resolution of 1920 * 1080@60Hz （30Pin，2*15Pin，2.0mm）
	1*LVDS_PWR pin	LVDS Voltage control insert （6Pin，2*3Pin，2.0mm）
	1*INVERT pin	LVDS Backlit switch control pin （6Pin，1*6Pin，2.0mm）
Internet function	1/2*RJ45 LAN interface	100 million network card and gigabit network card optional, support network wake up and PXE no disk start function Gigabit: default single network Realtek 8111H, optional dual network Realtek 8111H + Realtek 8111H; Optional 100 megabytes: single network Realtek 8106E, dual network Realtek 8106E + Realtek 8106E;
Internet function	1*MINI_PCIE interface	Support for WIFI / 4G / Bluetooth module
Hard drive function	1*SATA interface	Standard SATA 2.0 hard disk interface
	1*MSATA interface	Support for MSATA 2.0
	1*SATA_PWR pin	Hard disk power supply pin, the cable power 5V, 12V. （4Pin，1*4Pin，2.54mm）
Sound function	Default support Realtek ALC897 HD digital audio decoder, 6-channel high-fidelity audio controller; Modiable integrated Cmedia HS-100B high-fidelity USB audio chip
	1*LINE_OUT interface	Supports audio output (green)
	1*MIC_IN interface	Support for microphone input (red)
	1*JAMP pin	The amplifier supports 8 O 5 W horn dual channel output （4Pin，1*4Pin，2.0mm）
	1*F_AUDIO pin	Standard audio insert （9Pin，2*5Pin，2.54mm）
USB function	1*USB3.0 interface	Post-standard USB3.0 interface (USB3.0 under the blue group)
	3*USB2.0 interface	Post-standard USB2.0 interface (USB2.0 above the blue group)
	1*F_USB1 pin	Front USB2.0 pin, one group has 2 * USB2.0 （9Pin，2*5Pin，2.54mm）
	1*F_USB2 pin	Front USB2.0 pin, one group has 2 * USB2.0 （9Pin，2*5Pin，2.54mm）
	1*F_USB3 pin	Front USB2.0 pin, one group has 2 * USB2.0 （9Pin，2*5Pin，2.54mm）
Switch function	1*F_PANEL pin	Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.54mm)
Other I/O	COM1/2/5/7/8/9/10 pin	COM port，Support for the standard RS232 （9Pin，2*5Pin，2.54mm）
	COM3/4 pin	COM port，COM1 Support RS232 / RS422 / RS485 optional （9Pin，2*5Pin，2.54mm）
	COM6 pin	COM port,COM1 RS232 / RS485 optional （9Pin，2*5Pin，2.54mm）
	1*JPCOM1/2/3 pin	Control COM1 / 2 / 3 pin 9th voltage 0V / 5V / 12V is optional （6Pin，2*3Pin，2.0mm）
	1*JLPT pin	And port, standard print interface pin （25Pin，2*13Pin，2.0mm）
	1*SIM card slot	SIM card, SIM card is required when using 4G
	1*CLR_CMOS pin	Motherboard with zero clearance, discharge plug pin （3Pin，1*3Pin，2.54mm）
	1*PS/2 pin	Standard PS / 2 interface pin （7Pin，1*7Pin，2.0mm）
	2*FAN pin	Fan needle （3Pin，1*3Pin，2.54mm）
	1*J_GPIO pin	GPIO Control the insert （10Pin，2*5Pin，2.0mm）
Operating environment	Operating temperature: -10℃ ~60℃; Operating humidity: 5%~95% relative humidity, no condensation
BIOS	AMI BIOS，Support power-on, timing start, remote switch equipment intelligent identification
Watch Dog	Watch dog programming, hardware reset function (256 level, 0~255 seconds)
Operating system (OS)	Supporting Windows 10, Windows 8, Windows 7, Linux, etc.
