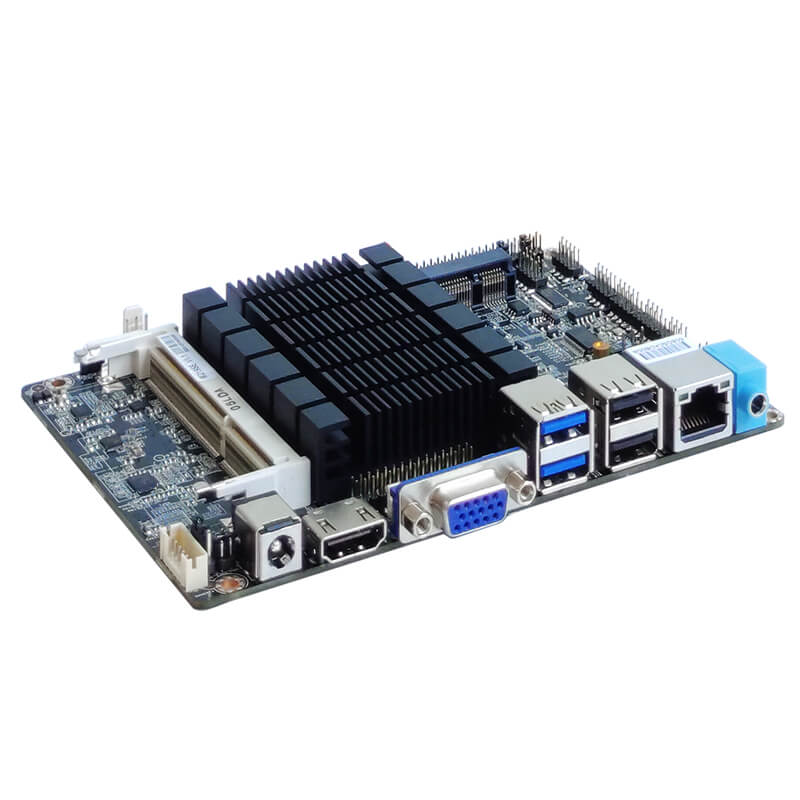

ELSKY M219SE Industrial Motherboard
SKU: ELSKY-M219SE
CPU
Intel® Bay Trail J-series (J1800, J1900, J2900)
Size
145mm x 100mm x 18mm
Memory
1 x NB-DDR3L slot (supports 1.35V low-voltage memory, up to 8GB)
Storage
1 x MSATA interface, 1 x SATA1 interface
Network
Realtek 8111H; optional Motorcomm YT6801
Display
HDMI, VGA, LVDS (or EDP); supports synchronous/asynchronous dual-display output; optional triple-display support
Power Supply
DC 12V (5A or higher recommended)
Interfaces

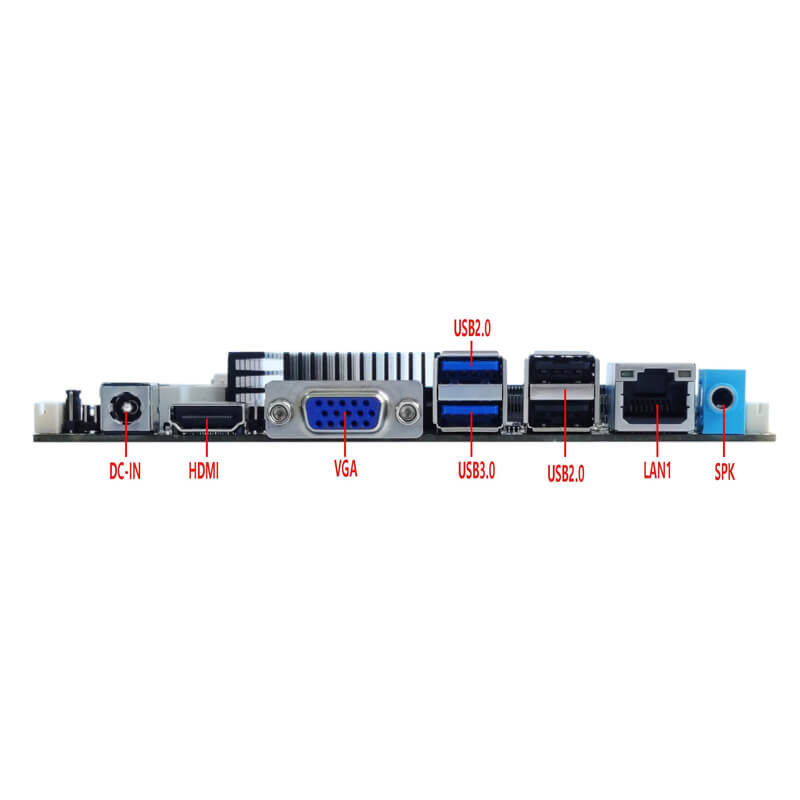

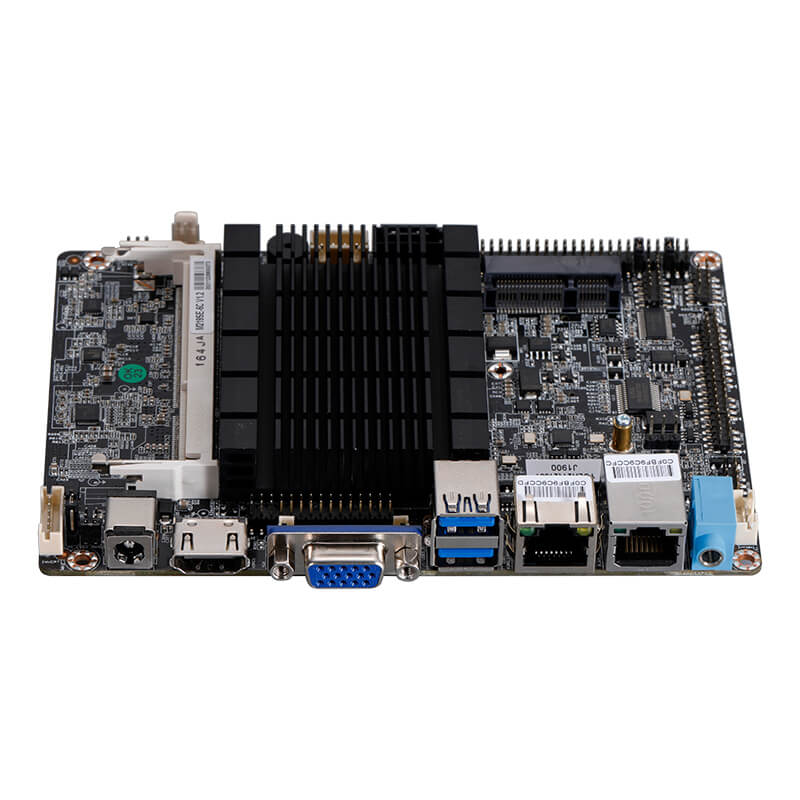

DC-in, HDMI, VGA, USB 3.0, 2 x LAN, Line-out

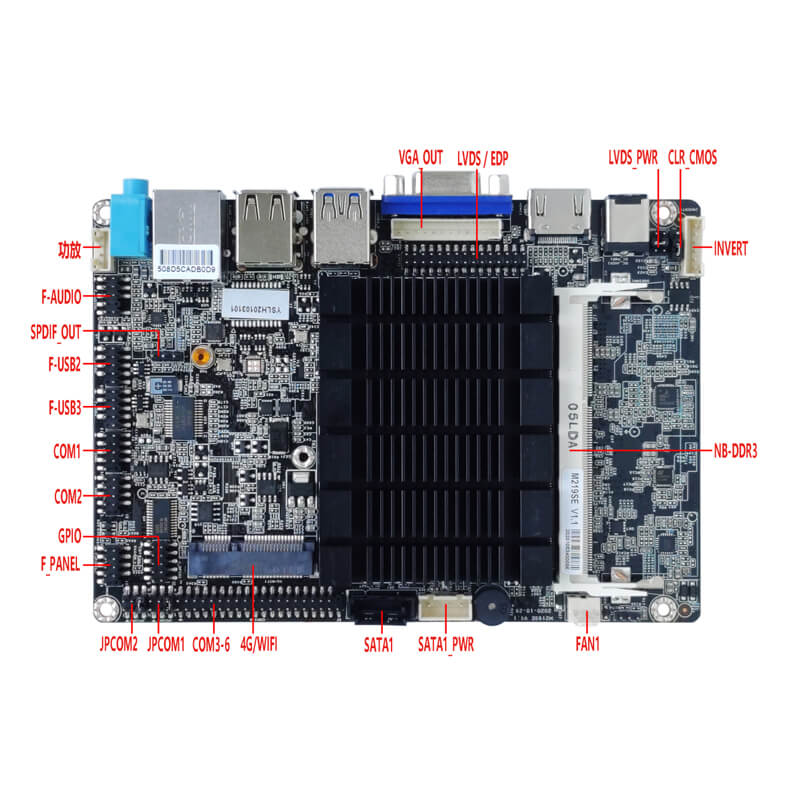

| Motherboard model | CPU | SSD | COM | LAN | USB2.0 | USB3.0 | Memory | Power |
| M218SE | Celeron J1800
Celeron J1900 Pentium J2900 Optional |
1*MSATA/
1*SATA |
6 | 1 | 7 | 1 | 1*NB DDR3
MAX 8GB |
+12V |
| M219SE | 2 | 5 | 1 |
| Motherboard size | 145mm*100mm*18mm | |
| CPU Processor | Intel® Processor Celeron J1900 , Celeron J1800, Pentium J2900 | |
| Chipset | Intel Bay trail SOC chipset | |
| Power supply | 1* DC_IN | The inner diameter of the DC head is 2.5MM and supports 12V
The full load power consumption of the motherboard is about 30W. It is recommended to use a 12V 4 A or higher power supply. |
| 1*ATX (4Pin) optional | ||
| Memory | 1*NB-DDR3L memory, low voltage 1.35V memory, support 1333/1600MHz memory, maximum support 8G | |
| Display functions | Intel(R) HD Graphics graphics controller , supports single display, dual display copy, dual display expansion, single display under DOS | |
| 1*VGA_OUT pin | Support resolution 1920*1080@60HZ (12Pin, 1*12Pin, 2.0mm) | |
| 1*VGA DB15 interface | Support resolution 1920*1080@60HZ | |
| 1*HDMI 1.4 interface | Support resolution 1920*1080@60HZ | |
| 1*LVDS pin | Support resolution 1920*1080@60HZ (30 Pin, 2*15Pin, 2.0mm) | |
| 1*EDP pin (optional) | Support resolution 1920*1080@60HZ (30 Pin, 2*15Pin, 2.0mm) | |
| LVDS and EDP are selected, LVDS is the default, and the pins are shared. EDP uses EDP-B screen cable | ||
| 1*INVERT1 pin | LVDS backlight switch control pin (6Pin, 1*6Pin, 2.0mm) | |
| 1*LVDS_PWR pin | LVDS working voltage control pin (6 Pin, 2*3Pin, 2.0mm) | |
| Network Features | 1/2*RJ45 LAN | Dual network and single network optional, support network wake-up and PXE diskless boot function
Single network Realtek 8111H; optional Yutaiwei YT6801; Default dual network: Realtek 8111H+Realtek 8111H or Yutaiwei YT6801+Yutaiwei YT6801; |
| 1*Mini-PCIE interface | PCIE2.0 signal, support WIFI/4G/Bluetooth, etc. | |
| Hard disk function | 1*SATA1 interface | Standard SATA2.0 hard disk interface, maximum transmission speed 3.0 Gbps |
| 1*SATA_PWR pin | Hard disk power supply pin, can take power 5V, 12V (4Pin, 1*4Pin, 2.54mm) | |
| 1*MSATA interface | Support standard MSATA 2.0 | |
| Sound Features | Integrated Realtek ALC 897 HD digital audio decoder , 6-channel high-fidelity audio controller | |
| 1*FRONT_OUT interface | Support audio output | |
| 1*F_AUDIO pin | Standard audio pin (9 Pin, 2*5Pin, 2.0mm) | |
| 1*JAMP pin | The amplifier supports 8 ohm 5 watt speaker dual channel output
(4 Pin, 1*4Pin, 2.0mm) |
|
| 1*SPDIF pin | Digital audio pin (3Pin , 1*3Pin, 2.54mm) | |
| USB Function | 1*USB3.0 interface | Rear standard USB3.0 interface |
| 3*USB2.0 interface | Rear standard USB2.0 interface | |
| 1*F_USB2 pin | Front USB2.0 pin, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.0mm) | |
| 1*F_USB3 pin | Front USB2.0 pin, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.0mm) | |
| Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, restart pin (9Pin, 2*5Pin, 2.0mm) |
| Other I/O | COM1 pin | Serial port, support RS232/RS422/RS485 optional ( 9Pin, 2*5Pin, 2.0mm) |
| COM2 pin | Serial port, support standard RS232 ( 9Pin, 2*5Pin, 2.0mm) | |
| COM3~6 pins | Serial port, support standard RS232 (3 9Pin, 2*20Pin, 2.0mm) | |
| 1*JPCOM1 pin | Control the voltage of COM1 pin 9: 0V/5V/12V optional
(6Pin, 2*3Pin, 2.0mm) |
|

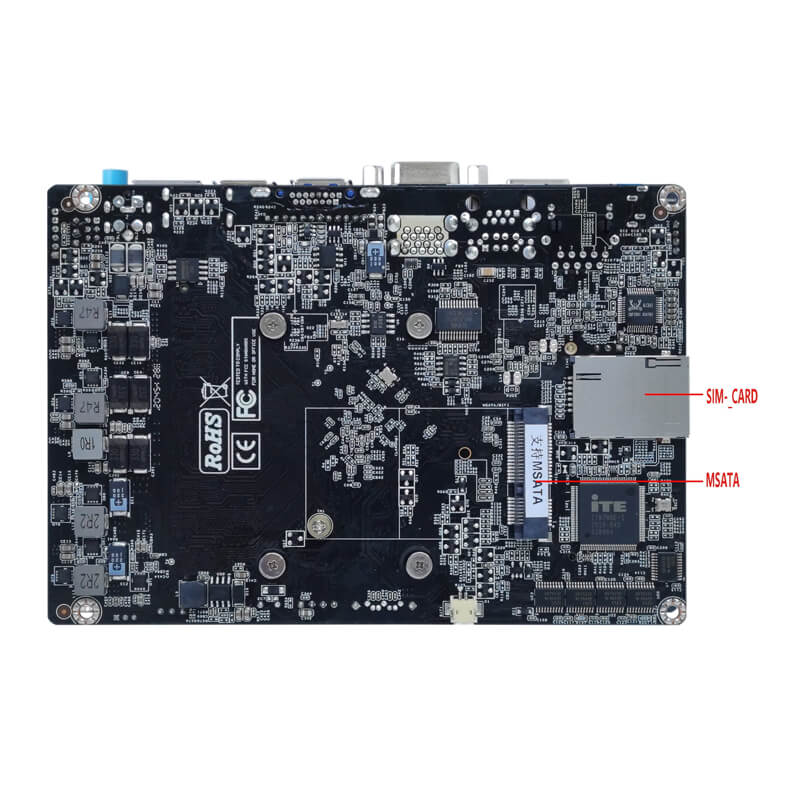

| 1*JPCOM2 pin | Control COM2 pin 9 voltage 0V/5V/12V optional ( 6Pin, 2*3Pin, 2.0mm) | |
| 1*SIM card slot | Support SIM card, SIM card is required when using 4G | |
| 1*CLR_CMOS pin | CLR_CMOS motherboard clear and discharge pin (3Pin, 1*3Pin, 2.54mm) | |
| 1*FAN1 pin | CPU fan pin, does not support temperature control (3Pin, 1*3Pin, 2.54mm) | |
| 1*J_GPIO pin | GPIO control pin ( 10Pin, 2*5Pin, 2.0mm) | |
| Operating Environment | Working temperature: -10℃~60℃;
Working humidity: 5%~95% relative humidity, no condensation |
|
| BIOS | AMI BIOS, supports power-on, scheduled power-on, remote power on and off, and intelligent device identification | |
| Operating system | Supports Windows 10, Windows 8, Windows 7, Linux, etc. | |
