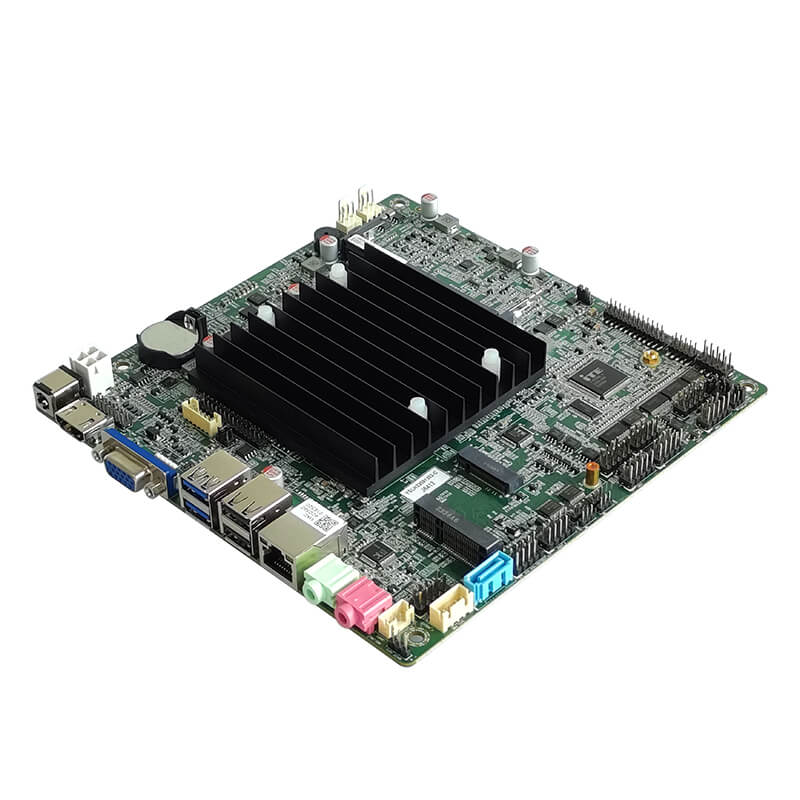

ELSKY M612F Industrial Motherboard
SKU: ELSKY-M612F
CPU
Supports Intel® Elkhart Lake J and N series CPUs (e.g. J6412)
Size
170mm (L) x 170mm (W) x 22mm (H)
Memory
1 x NB-DDR4 (Max 16GB)
Storage
1 x SATA1 interface, 1 x NGFF (M.2) interface
Network
Gigabit: Single-port 8111H; 100 Mbps: Single-port 8106E
Display
VGA or DP, HDMI, LVDS (or EDP); supports dual-display output (synchronous or asynchronous)
Power Supply
DC 12V (recommended 5A or higher)
Interfaces

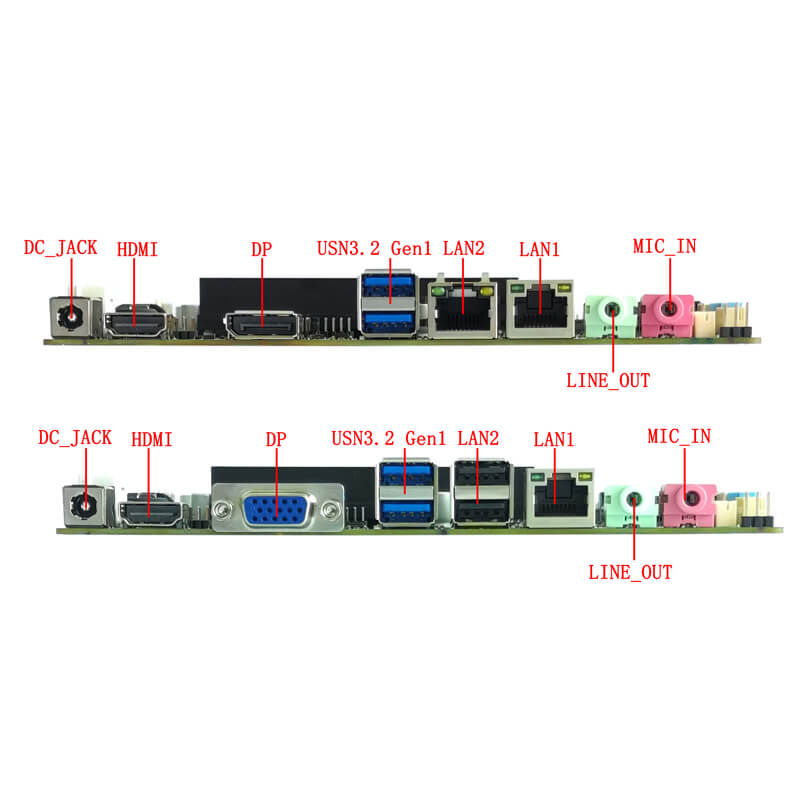

DC-in, HDMI, VGA (or DP), 2 x USB 3.0, 2 x USB 2.0, 2 x LAN, Line-Out, Mic-in
| Model | CPU | COM | 4K | LAN | USB2.0 | USB3.1 | SSD | Memory | Power |
| M612F | Support Intel® Elkhart LakeK
J and N series CPU(e.g.:J6412) |
10C/6C/2C | √ | 1 | 6 | 2 | 1*M.2
1*SATA 3.0 |
1*NB-DDR4
16G（MAX） |
+12V |
| 2 | 4 | 2 | |||||||
| Single network motherboard defaults to 8USB,dual network motherboard defaults to 6USB; | |||||||||

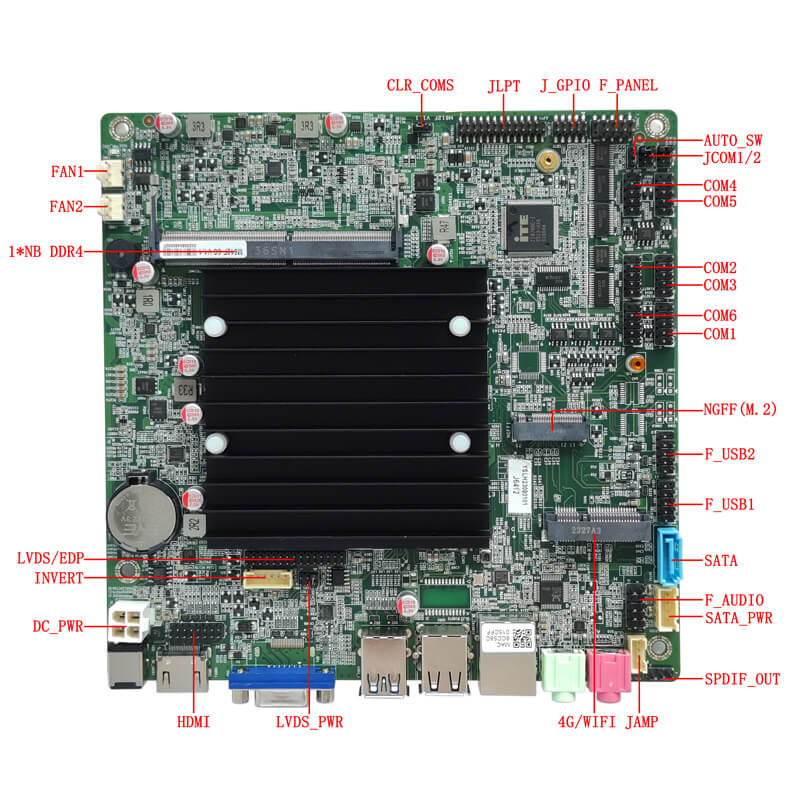

| Size | 170mm(L)*170mm(W)*22mm(H) | ||
| CPU | Intel ® Processor: Celeron J6412/J6413/N6210/N6211, Pentium J6426/N6415 | ||
| Memory support | 1*NB-DDR4 SODIMM memory slot, supports single channel 3200MHz memory, low voltage 1.2V, maximum support 16GB | ||
| Power supply | 1*DC_JACK | Supports 12V voltage, with a DC head inner diameter of 2.5mm
The motherboard has a full load power consumption of approximately 30W. It is recommended to use a 12V/4A or higher power supply |
|
| 1*DC_PWR（4Pin） | |||
| Display function | Intel® UHD Graphics,supports single display, dual display/triple display replication, dual display/triple display expansion, and dual display under SHELL | ||
| 1*VGA DB15 port | Support resolution 1920*1080@60Hz | ||
| 1*DP port(optional) | Support DP++ and 4K resolution 4096/3840*2160@60Hz | ||
| VGA interface can be changed to support DP interface | |||
| 1*HDMI® 2.0 port | 4K resolution 4096/3840*2160@60Hz | ||
| 1*HDMI_CON pin | 4K resolution 4096/3840*2160@30Hz （16Pin，2*8Pin，2.0mm） | ||
| 1*LVDS/EDP pin | Support resolution 1920*1080@60Hz （30Pin，2*15Pin，2.0mm） | ||
| 1*LVDS_PWR pin | LVDS voltage control pin （6Pin，2*3Pin，2.0mm） | ||
| 1*INVERT pin | LVDS backlight switch control pin （6Pin，1*6Pin，2.0mm） | ||
| LVDS and EDP are two options, using a total of one set of pins | |||
| Network function | 1/2*RJ45 LAN port
|
Gigabit network card or 100Mbps network card optional, support network wake-up and PXE diskless boot function;
Gigabit: default single network Realtek 8111H, optional support for Motorcomm YT6801 Gigabit network card; Dual network: Realtek 8111H+Realtek 8111H; Optional support for Motorcomm YT6801+Motorcomm YT6801 Gigabit Ethernet card; 100Mbps: Single network Realtek 8106E, dual network Realtek 8106E+Realtek 8106E |
|
| 1*4G/WIFI(Mini_PCIE) port | Supports PCIE3.0 x1&USB signals, WiFi Bluetooth/4G modules | ||
| Hard disk function | 1*SATA1 port | Standard SATA 3.0 hard drive interface | |
| 1*NGFF(M.2) port | Support Key-M interface M.2 2280 NVME PCIE3.0 x2 / SATA adaptive standard SSD; | ||
| 1*SATA_PWR1 pin | Hard drive power supply pin, capable of supplying 5V and 12V power （4Pin，1*4Pin，2.54mm） | ||
| Sound function | Default support for Realtek ALC897 HD digital audio decoder and 6-channel high fidelity audio controller | ||
| 1*LINE_OUT port | Supports audio output (green) | ||
| 1*MIC_IN port | Supports microphone input (red) | ||
| 1*JAMP pin | The amplifier supports dual channel output with 8 ohms and 5 watts speakers （4Pin，1*4Pin，2.0mm） | ||
| 1*F_AUDIO pin | Standard audio pin （9Pin，2*5Pin，2.54mm） | ||
| 1*SPDIF_OUT pin | Digital audio pin （3Pin，1*3Pin，2.54mm） | ||
| USB function | 2*USB3.1 port | Rear standard USB 3.1 Gen1 interface, with a maximum transmission bandwidth of 5Gbps | |
| 2*USB2.0 port | Rear standard USB 2.0 interface, with a maximum transmission bandwidth of 480Mbps | ||
| 1*F_USB1 pin | Front USB 2.0 pins, one set with 2*USB 2.0 （9Pin，2*5Pin，2.54mm） | ||
| 1*F_USB2 pin | Front USB 2.0 pins, one set with 2*USB 2.0 （9Pin，2*5Pin，2.54mm） | ||
| Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.54mm） | |
| 1*AUTO-SW pin | Support hardware control for power on and startup （3Pin，1*3Pin，2.0mm） | ||
| Other I/O | COM1～6 pin | Serial port, supports RS232 by default （9Pin，2*5Pin，2.54mm） | |
| COM7~10 pin | Serial port, supports RS232 by default （3Pin，1*3Pin，2.0mm） | ||
| COM1/3/4/6 pin | Serial port, optional support for RS232/485 （9Pin，2*5Pin，2.54mm） | ||
| 1*JPCOM1/2 pin | Can control the 9th pin voltage of COM1/2 to 0V/5V/12V（6Pin，2*3Pin，2.0mm） | ||
| 1*JLPT pin | Parallel port, standard printing interface pins （25Pin，2*13Pin，2.0mm） | ||
| 1*SIM_SLOT slot | Supports SIM card, SIM card is required when using 4G | ||
| 1*CLR_CMOS pin | Motherboard reset and discharge pins （3Pin，1*3Pin，2.0mm） | ||
| 1*FAN1 pin | CPU fan pin, supports temperature control （3Pin，1*3Pin，2.54mm） | ||
| 1*FAN2 pin | System fan pin, does not support temperature control（3Pin，1*3Pin，2.54mm） | ||
| 1*J_GPIO pin | GPIO control pin （10Pin，2*5Pin，2.0mm） | ||
| Operating environment | Working temperature: -10 ℃~60 ℃;
Working humidity: 5%~95% relative humidity, no condensation |
||
| BIOS | AMI BIOS,support timed startup and intelligent recognition of remote power on/off devices | ||
| Watch Dog | Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds) | ||
| Operating system | Windows 11, Windows 10, Linux,etc | ||
Core Advantages
Industrial Automation
Production Line Control, Equipment Monitoring, Data Acquisition
Machine Vision
AI Visual Inspection, Image Recognition and Analysis
Smart Commercial Displays
Digital Signage, Advertising Displays, Information Dissemination Terminals
Medical Imaging
Medical Imaging Terminals And Diagnostic Equipment
Smart Transportation
Traffic Signal Control And Road Network Monitoring
IoT Gateway
Data Aggregation And Edge Computing Nodes
