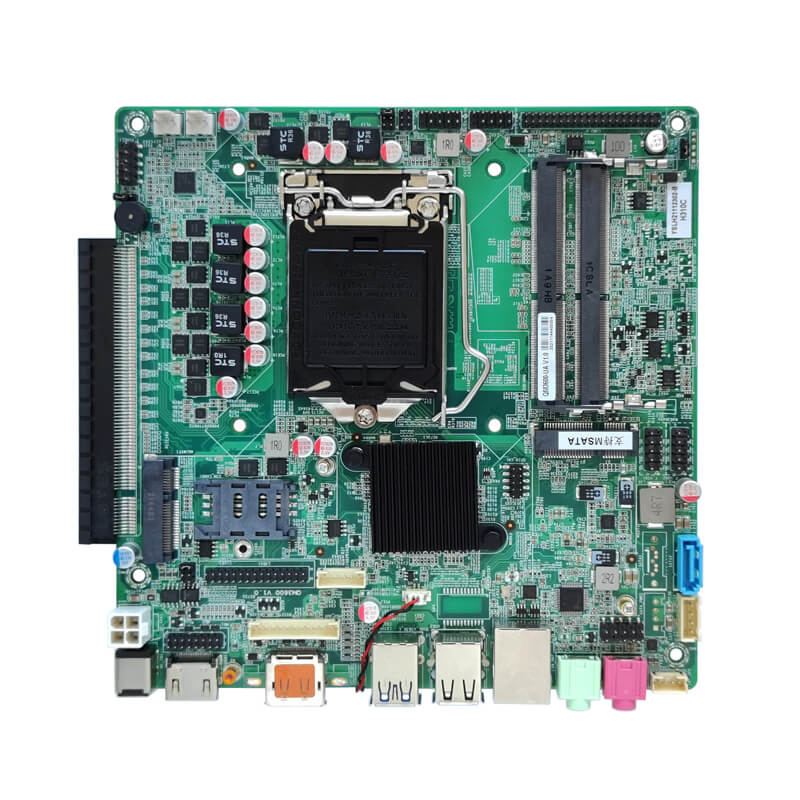

ELSKY QM3600 Industrial Motherboard

Name: ELSKY QM3600 Industrial Motherboard
Brand: SHENZHEN ELSKY TECHNOLOGY CO.,LTD

SKU: ELSKY-QM3600

Chipset

H310, supports Intel 6th/7th/8th/9th Gen LGA1151 Core i3, i5, i7, and i9 processors

Size

170mm (L) x 170mm (W) x 22mm (H)

Memory

2 x NB-DDR4 slots, up to 64GB (Max)

Storage

1 x MSATA interface, 2 x SATA 3.0 interfaces

Network

Realtek 8111H Gigabit Ethernet port; supports Wake-on-LAN

Display

VGA/DP, HDMI, LVDS (or EDP); supports synchronous/asynchronous dual-display output (PCIe x16 slot optional)

Power Supply

DC 12V/19V (recommended 12V/10A or higher)

Interfaces

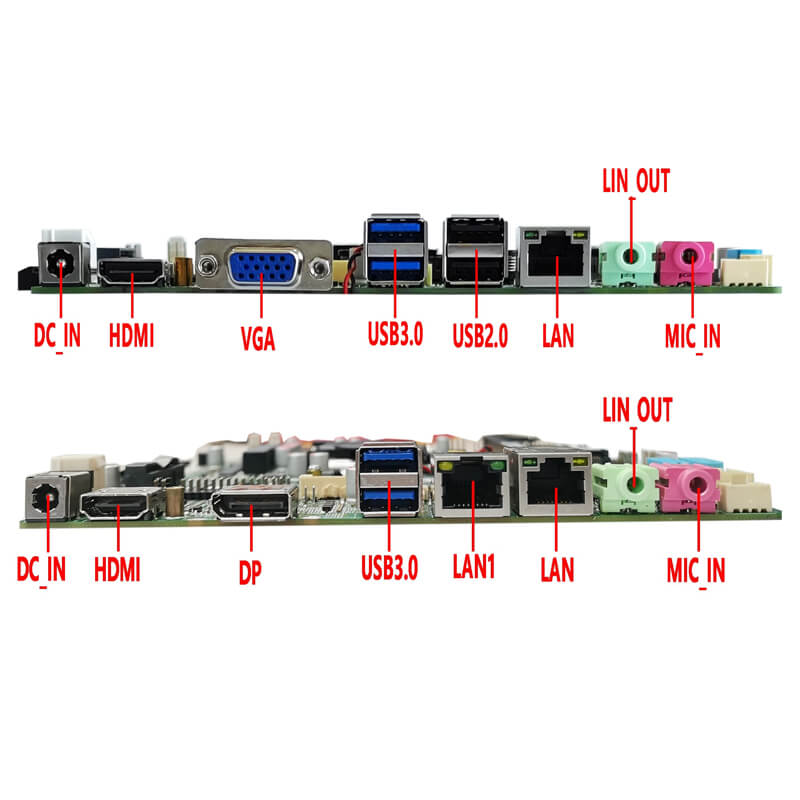

DC-in, HDMI, VGA (DP), 2 x USB 3.0, 2 x USB 2.0, LAN, Line-out, Mic-in

Motherboard module	CPU	4K	COM	LAN	USB2.0	USB3.0	SSD	Memory	Power
QM3600	Support Intel 6th/7th/8th/9th generation LGA1151 Core i3, i5, i7, i9 independent CPU	support	2/6	1	6	2	1MSATA 1SATA	2*NB-DDR4 MAX 64G	+12V/19V
QM3600-2L		support	2/6	2	4	2	1MSATA 1SATA	2*NB-DDR4 MAX 64G	+12V/19V
The motherboard can be equipped with a PCI-E X16 interface, which can be connected to an external graphics card

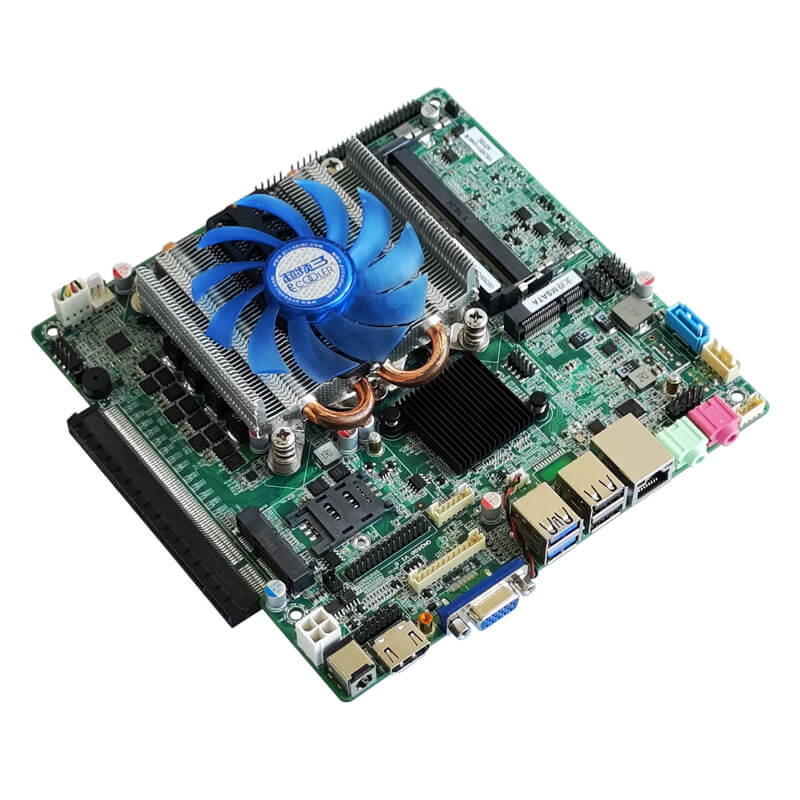

Size	170mm（L）170mm（W）22mm（H） (The thickness of the embedded radiator is 30mm, and the thickness of the 115X double-tube radiator is 42mm)
CPU	Support Intel 6th/7th/8th/9th generation LGA1151 Core i3, i5, i7, i9 independent CPU
Chipset	Intel H310C Chipset
Power supply	1*DC_IN	The inner diameter of the DC head is 2.5MM, The supporting 12V/19V motherboard has a full load power consumption of about 90W. It is recommended to use a 12V/10A or 19V/6A power supply or above
Power supply	1*4Pin DC-ATX
Memory	2*SODIMM slots	NB-DDR4 memory, supports 2133/2400/2666MHz memory, maximum support 64G
Network function	1/2*LAN interface	Single network: default support Realtek 8111H Gigabit network port; Optional support Yutaiwei YT6801 Gigabit network card; Dual network: support Realtek 8111H + Realtek 8111H Gigabit network card; Optional support Yutaiwei YT6801 + Yutaiwei YT6801 Gigabit network card; Support network wake-up, PXE function
Network function	1*MINI_PCIE interface	PCIE3.0 signal, support WIFI/4G/Bluetooth module
Display function	Graphics	Intel HD Graphics 530/630 super core graphics card, supports single display, dual display copy, dual display expansion, single display under DOS
	1*HDMI 1.4 interface	Support 4K resolution 4096/3840*2160@30Hz
	1*HDMI_CON pin	Support resolution 4096/38402160@30Hz （16Pin，28Pin，2.0mm）
	1*VGA DB15 interface	Support resolution 1920*1080@60Hz
	1*VGA_OUT pin	Support resolution 19201080@60Hz （12Pin，112Pin，2.0mm）
	1*DP interface (optional)	Support 4K resolution 4096/3840*2160@60Hz
	VGA and DP are two choices, the default signal is VGA, and the signal can be changed to DP
	1*LVDS pin (EDP optional)	Support resolution 19201080@60Hz (30Pin, 215Pin, 2.0mm)
	LVDS and EDP share the same pin, the default is LVDS signal, can be changed to EDP signal, use EDP-B screen cable

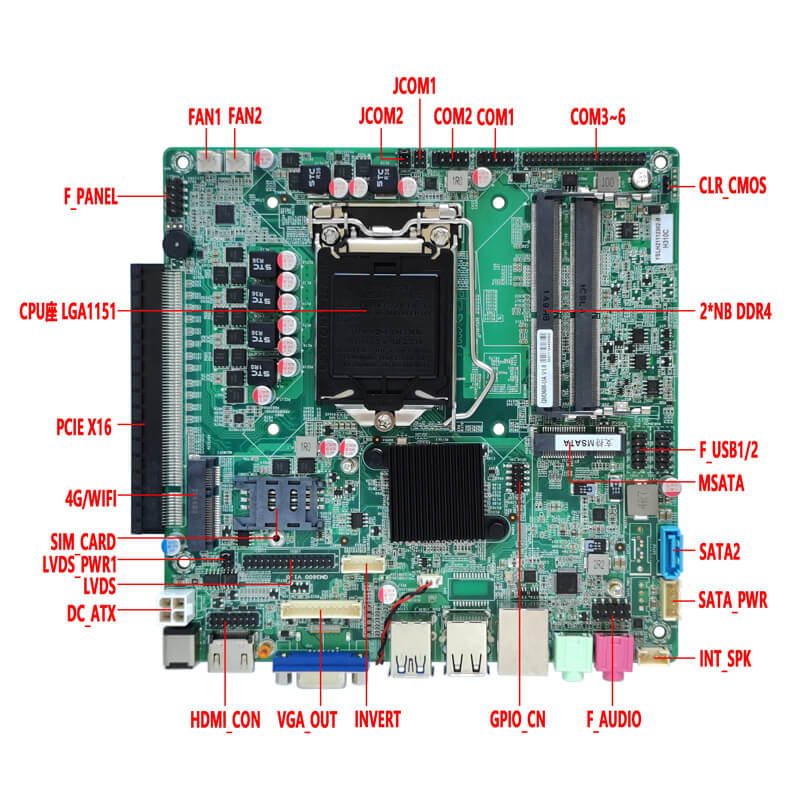

	1*LVDS_PWR pin	LVDS/EDP voltage control pin (6Pin, 2*3Pin, 2.0mm)
	1*INVERT pin	LVDS/EDP backlight switch control pin (6Pin, 1*6Pin, 2.0mm)
USB function	2*USB3.0 interface	Rear standard USB3.0 interface
	2*USB2.0 interface	Rear standard USB2.0 interface
	1*F_USB2 pin	Front USB2.0 pin, one set has 2USB2.0 (9Pin, 25Pin, 2.54mm)
	1*F_USB3 pin	Front USB2.0 pin, one set has 2USB2.0 (9Pin, 25Pin, 2.54mm)
Sound function	Integrated Realtek ALC897 HD digital audio decoder, 6-channel high-fidelity audio controller; Can be changed to support Cmedia HS_100B USB sound card;
	1*LINE_OUT interface	Support audio output (green)
	1*MIC_IN interface	Support microphone input (red)
	1*F_AUDIO pin	Standard audio pin, when the motherboard is a USB sound card, the pin is not available (9Pin, 2*5Pin, 2.54mm)
	1*INT_SPK pin	The amplifier supports 8 ohm 5 watt speaker dual channel output (4Pin, 1*4Pin, 2.0mm)
Hard disk function	1*MSATA pin	Support MINI_SATA disk, support MSATA 3.0
	1*SATA1 interface（optional）	Standard SATA hard disk interface, supports SATA 3.0 (no interface by default, can be changed to an independent signal)
	1*SATA2interface	Standard SATA hard disk interface, supports SATA 3.0
	1*SATA_PWR1 pin	Hard disk power supply pin, can take power 5V, 12V (4Pin, 1*4Pin, 2.54mm)
	1*SATA_PWR2 pin（optional）	Hard disk power supply pin, can take power 5V, 12V (4Pin, 1*4Pin, 2.54mm)
Switch function	1*F_PANEL pin	Switch, power light, hard disk light, restart pin (9Pin, 2*5Pin, 2.54mm)
Other I/O	1*COM1 pin	Serial port, support RS232/RS422/RS485 optional (9Pin, 2*5Pin, 2.54mm)
	1*COM2 pin	Serial port, only supports RS232 (9Pin, 2*5Pin, 2.54mm)
	COM3~COM6 pin	Serial port, support standard RS232; (39Pin, 2*20Pin, 2.0mm)
	All serial ports can support TTL hardware
	1*JCOM1 pin	Control COM1 pin 9 voltage 0V/5V/12V optional (6Pin, 2*3Pin, 2.0mm)
	1*JCOM2 pin	Control COM2 pin 9 voltage 0V/5V/12V optional (6Pin, 2*3Pin, 2.0mm)
	1*SIM_CARD slot	Support SIM card, SIM card is required when using 4G
	1*FAN1 pin	CPU fan pin, supports temperature control (3Pin, 1*3Pin, 2.54mm)
	1*FAN2 pin	System fan pin, full speed does not support temperature control (3Pin, 1*3Pin, 2.54mm)
	1*CLR_CMOS pin	Motherboard reset and discharge pin (3Pin, 1*3Pin, 2.0mm)
	1*GPIO_CN pin	GPIO control pin (9Pin, 2*5Pin, 2.0mm)
Operating environment	Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation
BIOS	AMI BIOS, supports power-on, scheduled power-on, remote power on and off, and intelligent device identification
Watch Dog	Watchdog programming (256 levels, 0~255 seconds)
Operating system	Support Windows 11，Windows 10，Windows 7，Linux etc
